- Product Code: 05-404S

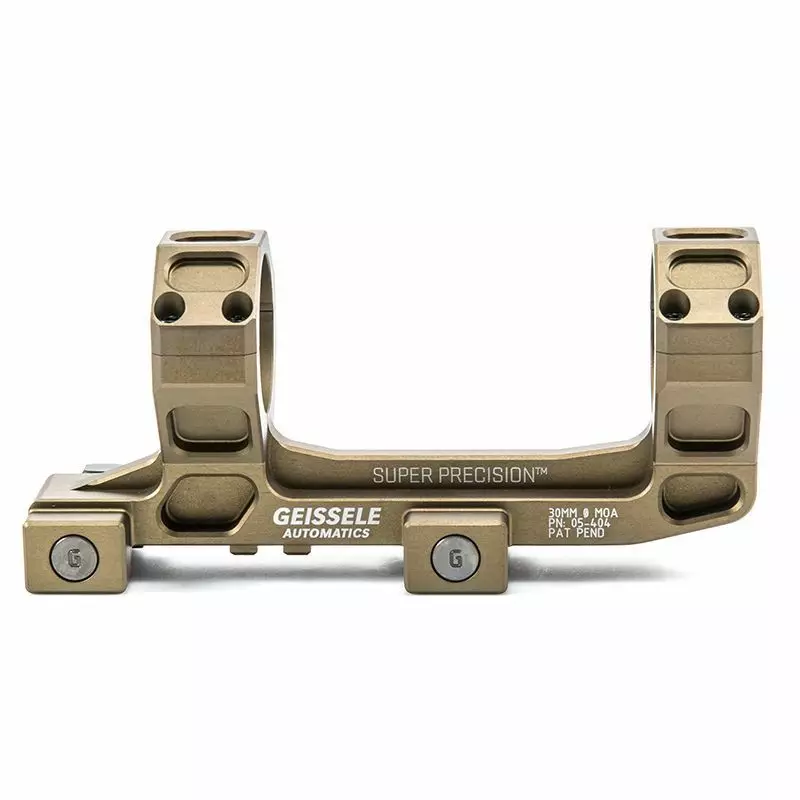

Geissele Super Precision 30mm Std DDC is a scope mount compatible with AR-15/M4 platforms, designed for 30 mm main tubes. The mounting surface spans 7 Picatinny slots, and the body locks onto the rail with 4 shear lugs. The bolt-nut clamping mechanism provides approximately 6.2 kN (1,400 lb) clamping force per bolt, ensuring a secure, lever-independent attachment to the AR upper receiver.
The mount is machined from a single piece of 7075-T6 high-strength aluminum, enhancing rigidity and repeatability. The body features pockets and reinforcement ribs to reduce weight and increase strength, and the cap mounting points are positioned to accommodate a wide range of 30 mm main tube optics. The design supports return-to-zero in repeated removal/installation scenarios.
The newer generation top caps are interchangeable between turrets without compromising accuracy, facilitating potential maintenance. The series is available in Standard, Extended, and Hyper Extended lengths, as well as in black or DDC Type III hardcoat anodized finishes; this model is Standard length and DDC-colored. The AR-standard height places the optical centerline approximately 39.1 mm (1.54 in) above the rail.
Geissele Super Precision 30mm Std DDC - Features:
- Compatibility: AR-15/M4 upper, 1913 Picatinny rail
- Main tube size: 30 mm
- Length version: Standard (series also includes Extended and Hyper Extended)
- Mounting method: bolt-nut to Picatinny rail, approximately 6.2 kN clamping force per bolt (1,400 lb)
- Mounting surface: spans 7 Picatinny slots
- Shear lugs: 4 pcs to improve shear load management
- Material: 7075-T6 high-strength aluminum
- Manufacturing method: single-piece billet machining; pockets and reinforcements for added rigidity
- Finish: Type III hardcoat anodize, DDC color (also available in black)
- Return-to-zero: designed for repeatable installation and removal
- Top caps: interchangeable between turrets; no serial numbering required
- Optical centerline height: approximately 39.1 mm above the rail (1.54 in)
- Manufactured: USA
This mount is suitable for users who value rigid, repeatable, and reliable optic mounting on the AR platform. The 7075-T6 construction, 4 shear lugs, and bolt clamping mechanism, combined with the DDC hardcoat finish, provide a durable and stable solution.
Recommended use: For AR-15/M4 platform shooters and hunters using 30 mm main tube scopes who desire secure mounting and good repeatability.
