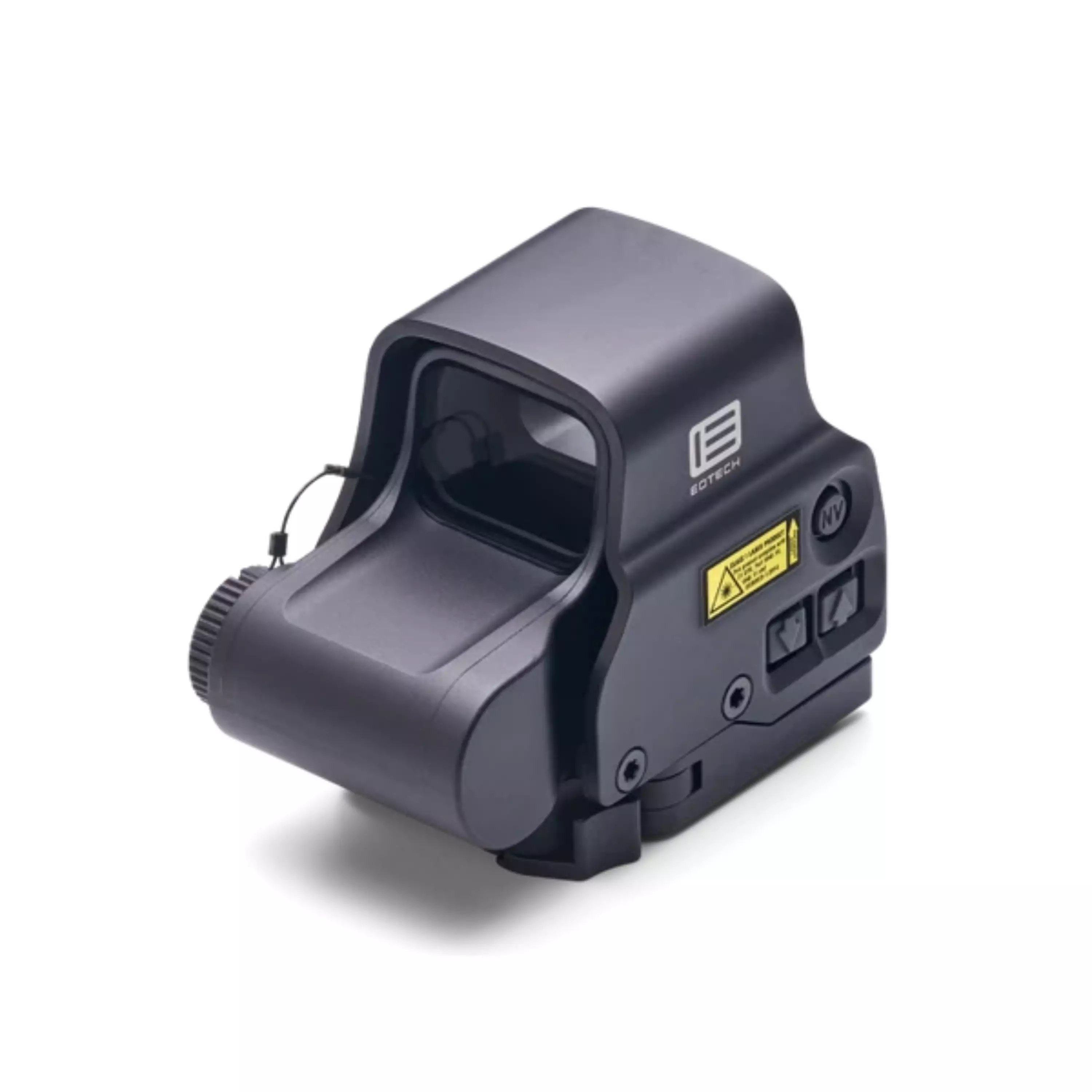

EOTECH HWS EXPS3

EOTECH EXPS3-0 is a holographic HWS sight for rifles and carbines where a fast sight picture and compatibility with night vision devices are required. The EXPS3-0 reticle consists of a 68 MOA ring and a 1 MOA centre dot, combining fast close-range aiming with a small central aiming point for greater precision.

The EXPS3 holographic sight picture is designed for shooting with both eyes open. The model has 20 daylight brightness settings and 10 additional settings for Gen I-III+ night vision devices. The control buttons are located on the side of the housing, making them easy to access even when a magnifier is mounted behind the sight.

The sight has an integrated QD mount for Weaver or MIL-STD-1913 Picatinny rails. The mount raises the optical axis approximately 7 mm higher than the standard XPS configuration and is designed for lower 1/3 co-witness height with AR-style iron sights.

According to the manufacturer, one CR123 battery provides approximately 1000 hours of continuous operation at nominal setting 12 at room temperature. Elevation and windage adjustments are 0.5 MOA per click. The EXPS3 is water resistant to a depth of 10 metres and has an operating temperature range of -40...+60 degrees C.

EOTECH EXPS3-0 - Features:

• Type: holographic HWS sight
• Reticle: 68 MOA ring + 1 MOA centre dot
• Magnification: 1x
• Brightness settings: 20 daylight + 10 night vision
• Night vision compatibility: yes, Gen I-III+
• Click value: 0.5 MOA
• Mounting: QD, 1" Weaver / MIL-STD-1913 Picatinny
• Controls: on the side of the housing
• Battery: 1 x CR123
• Battery life: approximately 1000 h at setting 12
• Water resistance: 10 m
• Dimensions: 96.5 x 58.4 x 73.7 mm
• Weight: approximately 317.5 g
• Country of manufacture: USA

The key advantage of the EXPS3-0 is the combination of a holographic sight picture, night vision compatibility and an integrated QD mount. Side-mounted controls make the model particularly well suited for use with an EOTECH G43 or G45 magnifier.
