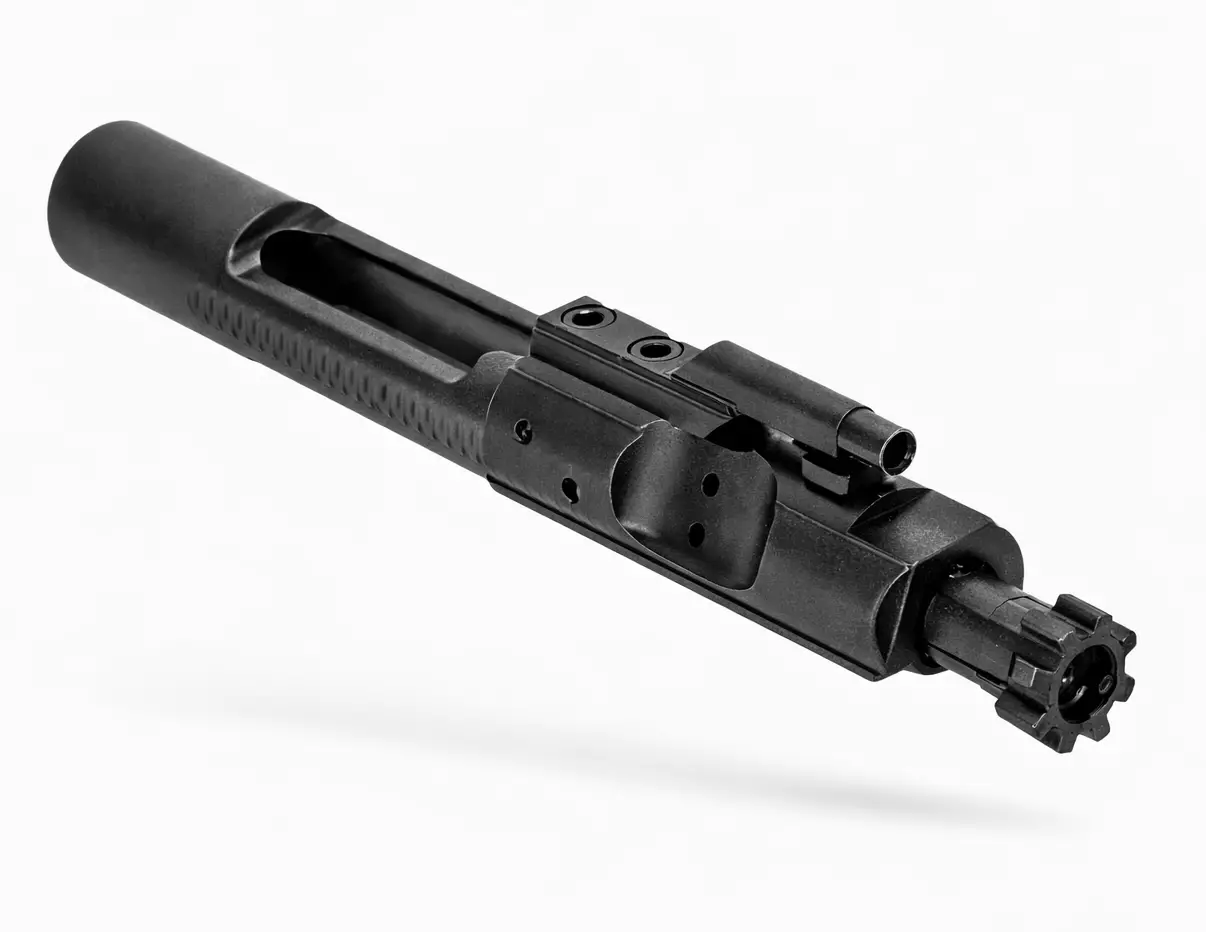

Axem Bolt Carrier Group 5.56 AR-15 Phos is an AR15 BCG, or bolt carrier group, compatible with the 5.56 NATO / .223 Rem AR-15 platform; it is designed for reliable cycling, easy maintenance, and compatibility with standard parts with a phosphate finish.
The BCG consists of the carrier, bolt, gas key, cam pin, firing pin, and firing pin retainer, making it ready for direct installation into the upper. The phosphate (manganese phosphate) finish provides a low-gloss and friction-optimized surface that retains lubrication well. The design emphasizes maintainability: the bolt can be removed via the cam pin without tools, and the extractor is spring-loaded with an insert and O-ring. The weight is approximately 325 g (11.5 oz) and the overall length is approximately 168 mm (6.6 in), making it a full-mass assembly that works as a drop-in component in standard AR-15 setups.
The technical quality adheres to AR-15 standards: the bolt is heat-treated and shot-peened to ensure fatigue resistance, and every critical part is dimensioned to maintain gas seal and alignment of locking surfaces. The gas key is attached with Grade 8 screws and properly staked to prevent loosening during extended use. The carrier's internal bores and the gas key channels are chrome-lined to improve wear resistance and fouling management, and the bolt is inspected using MPI and HPT methods (magnetic particle inspection and high-pressure testing), which are standard practices for detecting cracks and material defects.
Special features include three-piece gas rings that ensure gas sealing, as well as an extractor system with a robust spring, insert, and O-ring to enhance extraction reliability. The phosphate finish is smooth and maintenance-friendly, withstanding normal wear and handling without a glaring shine. The profile is a full-mass carrier, supporting consistent movement and cycling rhythm with various gas systems and buffer assemblies.
Axem Bolt Carrier Group 5.56 AR-15 Phos – Features:
- Type: AR-15 Bolt Carrier Group (AR15 BCG)
- Caliber compatibility: 5.56 NATO / .223 Rem (AR-15 bolt standard)
- Finish: phosphate (manganese phosphate), low-gloss
- Weight: approximately 325 g (11.5 oz)
- Length: approximately 168 mm (6.6 in)
- Materials: hardened alloy steel (bolt and carrier), chrome-lined internal channels (carrier bore and gas key)
- Testing: MPI (Magnetic Particle Inspection) and HPT (High Pressure Test)
- Gas key: Grade 8 screws, proper staking
- Extractor: spring, insert, and O-ring for enhanced grip
- Gas rings: 3 pcs, replaceable
- Contents: bolt, carrier, gas key, cam pin, firing pin, firing pin retainer, extractor assembly
- Compatibility: AR-15 upper receivers and standard bolt carriers
- Maintainability: field disassembly without tools (cam pin removal)
- Suitability: drop-in installation for AR-15 setups using the 5.56/.223 bolt standard
Summary: this BCG offers stable operation, maintenance-friendly construction, and AR-15 standard compatibility. The phosphate finish and tested bolt make it a reliable choice for balanced performance and easy upkeep.
Recommended use: recommended for AR-15 builds and setups when a phosphate, full-mass BCG is desired, designed for demanding use and stable cycling support.
