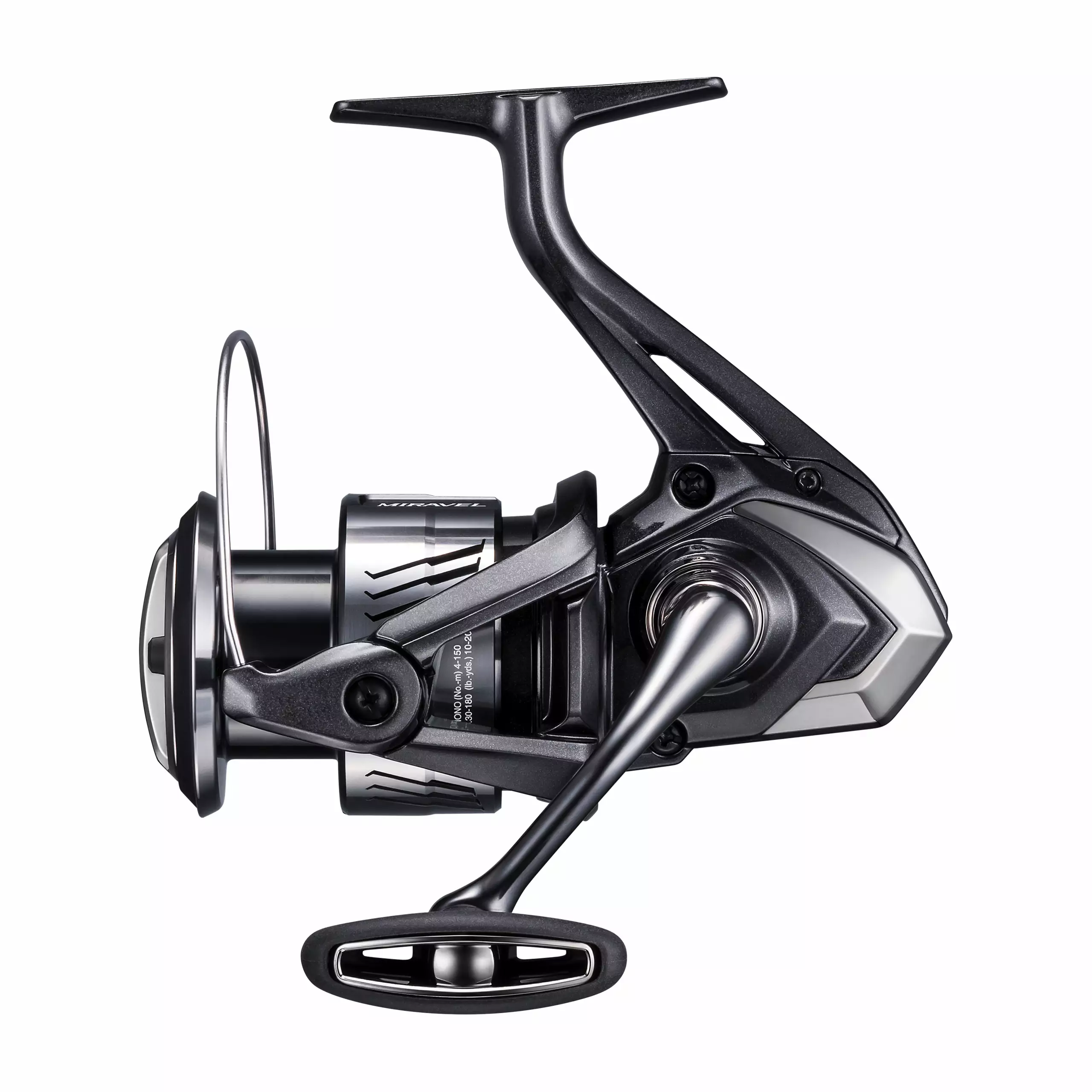

Shimano Miravel FA

Shimano Miravel FA is a front drag spinning reel that brings the lightweight construction and precision gearing of the Magnumlite series to modern lure fishing. It is designed especially for anglers using finesse techniques who value light rotation, a balanced feel and precise control. The wide size range from 1000 to C3000, along with standard and high gear ratios, allows you to choose a reel to suit your fishing style and rod.

The G-FREE Body, made from advanced CI4+ composite, keeps the reel lightweight and balanced even in the larger sizes. Characteristic of the Magnumlite design, its low rotational resistance improves sensitivity and control, as the rotor starts moving with minimal effort. Miravel is ideal for building a lightweight, high-performance rod setup, and when paired with a Shimano Miravel Light Game rod, for example, it creates a balanced combination that transmits lure action and bites accurately.

Inside the reel, HAGANE GEAR and X-SHIP deliver power and smooth operation. These are complemented by Silent Drive and Infinity Drive, which reduce unnecessary movement within the gearing and make winding smooth even under load. The screw-in handle creates a direct connection between the handle and gearing, enhancing control when working a lure and playing fish.

The AR-C spool and precise line lay support effortless casting. The One-Piece Bail and Anti-Twist Fin guide line onto the spool in a controlled manner and help prevent slack line or uneven line lay, which is especially useful with thin PE braided lines. X-Protect adds structural protection and helps maintain smooth rotation, while the waterproof front drag system provides reliable drag performance during fishing.

The range includes size options from the lightweight 1000 model to C3000 models with greater line capacity. Available HG and SHG versions offer higher gear ratios and increased line retrieve per handle turn. All options feature 5+1 bearings, with model-specific maximum drag ratings from 3 to 9 kg.

Shimano Miravel FA - Features:

• Reel type: front drag spinning reel
• Product range: Shimano Magnumlite
• Body material: lightweight CI4+ composite
• Body design: G-FREE Body improves balance and reduces strain on the hand
• Gearing: HAGANE GEAR
• Power transmission: X-SHIP
• Gear operation: Silent Drive reduces play, vibration and unwanted gear noise
• Winding enhancement: Infinity Drive supports light and efficient rotation under load
• Handle: screw-in design provides a direct feel
• Spool: AR-C spool supports controlled line release during casting
• Bail design: One-Piece Bail
• Line management: Anti-Twist Fin helps guide even thin PE braided line evenly onto the spool
• Protection: X-Protect increases durability and protects the gearing from water exposure
• Drag: waterproof front drag system
• Bearings: 5+1 in all models
• Size options: 1000, C2000S, C2000SHG, 2500, 2500S, 2500SHG, C3000 and C3000HG
• Gear ratio options: 5.0:1, 6.0:1 and 6.2:1 depending on the model
• Weight options: 170 g, 175 g and 200 g depending on the model
• Maximum drag: 3 kg, 4 kg or 9 kg depending on the model
• Line retrieve: 66-91 cm per handle turn depending on the model
• Handle length: 45 mm or 55 mm depending on the model

Shimano Miravel 1000 A - Technical Specifications:

• Gear ratio: 5.0:1
• Maximum drag: 3 kg
• Weight: 170 g
• Monofilament line capacity: 0.18 mm / 170 m, 0.20 mm / 140 m, 0.25 mm / 90 m
• PE braided line capacity: PE #0.8 / 240 m, PE #1.0 / 190 m
• Line retrieve: 66 cm per handle turn
• Handle length: 45 mm
• Bearings: 5+1

Shimano Miravel C2000S A - Technical Specifications:

• Gear ratio: 5.0:1
• Maximum drag: 3 kg
• Weight: 175 g
• Monofilament line capacity: 0.14 mm / 145 m, 0.16 mm / 105 m, 0.18 mm / 80 m
• PE braided line capacity: PE #0.6 / 150 m, PE #0.8 / 110 m, PE #1.0 / 80 m
• Line retrieve: 66 cm per handle turn
• Handle length: 45 mm
• Bearings: 5+1

Shimano Miravel C2000SHG A - Technical Specifications:

• Gear ratio: 6.0:1
• Maximum drag: 3 kg
• Weight: 175 g
• Monofilament line capacity: 0.14 mm / 145 m, 0.16 mm / 105 m, 0.18 mm / 80 m
• PE braided line capacity: PE #0.6 / 150 m, PE #0.8 / 110 m, PE #1.0 / 80 m
• Line retrieve: 79 cm per handle turn
• Handle length: 45 mm
• Bearings: 5+1

Shimano Miravel 2500 A - Technical Specifications:

• Gear ratio: 5.0:1
• Maximum drag: 9 kg
• Weight: 200 g
• Monofilament line capacity: 0.25 mm / 160 m
• PE braided line capacity: PE #1.0 / 320 m, PE #1.2 / 270 m, PE #1.5 / 220 m
• Line retrieve: 73 cm per handle turn
• Handle length: 55 mm
• Bearings: 5+1

Shimano Miravel 2500S A - Technical Specifications:

• Gear ratio: 5.0:1
• Maximum drag: 4 kg
• Weight: 200 g
• Monofilament line capacity: 0.16 mm / 150 m, 0.18 mm / 120 m, 0.20 mm / 95 m
• PE braided line capacity: PE #0.6 / 200 m, PE #0.8 / 150 m, PE #1.0 / 120 m
• Line retrieve: 73 cm per handle turn
• Handle length: 55 mm
• Bearings: 5+1

Shimano Miravel 2500SHG A - Technical Specifications:

• Gear ratio: 6.2:1
• Maximum drag: 4 kg
• Weight: 200 g
• Monofilament line capacity: 0.16 mm / 150 m, 0.18 mm / 120 m, 0.20 mm / 95 m
• PE braided line capacity: PE #0.6 / 200 m, PE #0.8 / 150 m, PE #1.0 / 120 m
• Line retrieve: 91 cm per handle turn
• Handle length: 55 mm
• Bearings: 5+1

Shimano Miravel C3000 A - Technical Specifications:

• Gear ratio: 5.0:1
• Maximum drag: 9 kg
• Weight: 200 g
• Monofilament line capacity: 0.25 mm / 210 m, 0.30 mm / 130 m, 0.35 mm / 100 m
• PE braided line capacity: PE #1.0 / 400 m, PE #1.5 / 270 m, PE #2.0 / 200 m
• Line retrieve: 73 cm per handle turn
• Handle length: 55 mm
• Bearings: 5+1

Shimano Miravel C3000HG A - Technical Specifications:

• Gear ratio: 6.2:1
• Maximum drag: 9 kg
• Weight: 200 g
• Monofilament line capacity: 0.25 mm / 210 m, 0.30 mm / 130 m, 0.35 mm / 100 m
• PE braided line capacity: PE #1.0 / 400 m, PE #1.5 / 270 m, PE #2.0 / 200 m
• Line retrieve: 91 cm per handle turn
• Handle length: 55 mm
• Bearings: 5+1

Miravel FA offers lightweight construction, precise line management and smooth power transmission without the cost of a higher-priced reel. The model-specific size, gear ratio, drag rating and line capacity options make it easy to match the reel to your rod, line and lures. It is an ideal choice for anglers seeking sensitive feel, effortless casting and controlled winding.

Recommended use: especially suitable for light and finesse lure fishing, as well as anglers who value low weight, a balanced rod setup and precise lure control. The standard gear ratio provides calm and controlled winding, while HG and SHG models are suited to techniques requiring faster line retrieve.

Product description updated 7 August 2026.
