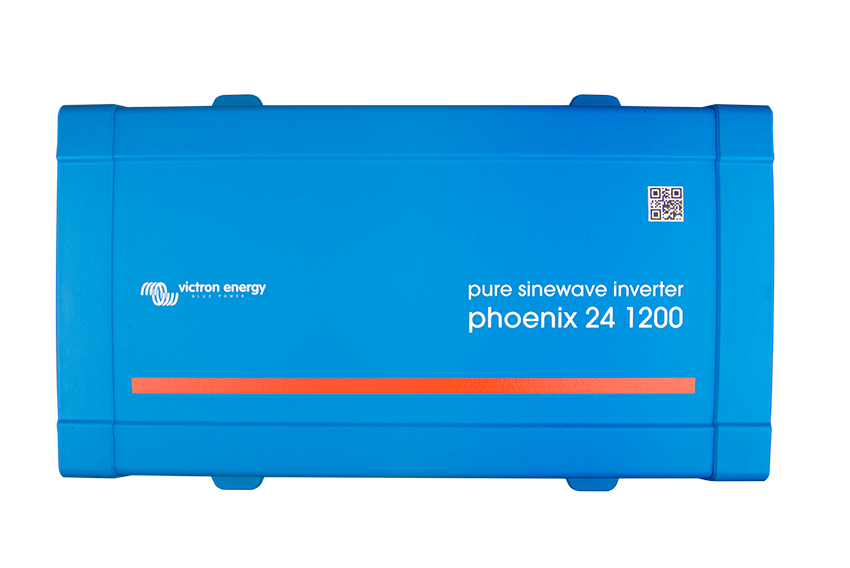

Victron Phoenix 24V 1200VA

Victron Phoenix 24V 1200VA Inverter - is a true sine wave inverter that allows you to use household appliances with a 230VAC/120VAC supply voltage at your cottage, boat, or even in a motorhome using 12V/24V batteries intended for regular leisure use. The electricity produced by the pure sine wave inverter is exactly the same as the electricity from the grid.

• The inverter has a Schuko socket output, so you can connect one appliance to the inverter, such as a charger for charging batteries or even an extension cord to distribute power at the cottage.
• The input is through storage batteries, which can be one or more batteries that are charged either through solar panels or a DC-DC charger, for example, from the starter battery of a motorhome or boat.
• Easily controlled via a Bluetooth application
• Five (5) year warranty

Victron Phoenix 24V 1200VA Main Features:

• Cont. power at 25°C: 1200VA
• Cont. power at 25°C / 40°C: 1000 / 850W
• Peak power: 2200W
• Output AC voltage / frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
• Input voltage range: 18.4 - 34.0V
• DC low shut down (adjustable): 18.6V
• Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC low restart and alarm (adjustable): 21.8V
• Battery charged detect (adjustable): 28.0V
• Max. efficiency: 91%
• Zero-load power: 8W
• Default zero-load power in ECO mode (default retry interval: 2.5 s, adjustable): 1.5W
• ECO mode stop and start power setting: Adjustable
• Operating temperature range: -40 to +65°C (fan assisted cooling) Derate 1.25% per °C above 40°C
• Humidity (non-condensing): max 95%

• Material & Colour: Steel chassis and plastic cover (blue Ral 5012)
• Battery-connection: Screw terminals
• Maximum cable cross-section: 25mm2 / AWG4
• Standard AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R, GFCI
• Protection category: IP21
• Weight: 7.4kg / 16.3lbs
• Dimensions (h x w x d, mm): 117 x 232 x 327mm

• Remote on-off: Yes
• Automatic transfer switch: Filax
