- Product Code: 793442202469
- EAN: 793442202469
- Warranty: 1 year

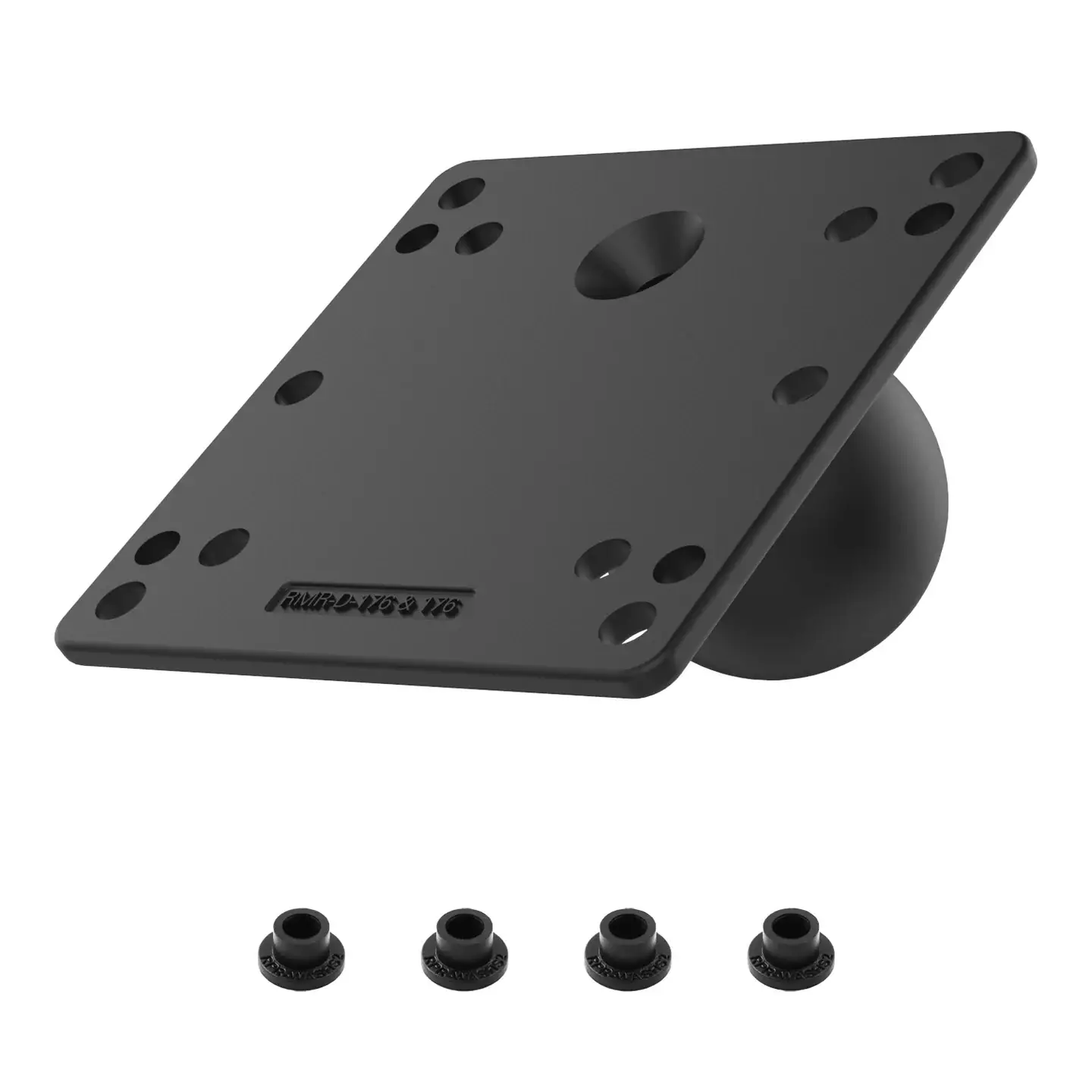

RAM 100x100mm VESA Plate with Ball D is a RAM plate designed for VESA-standard displays, making it an excellent choice for securely mounting large compatible marine displays. The plate is also directly compatible with the back cover of the popular Saxa Helm Pro sonar display, allowing you to create a stable and adjustable mounting solution for demanding use.
The square plate includes a VESA hole pattern, enabling it to be connected to a wide range of compatible devices. The included D-size 57.2 mm (2.25 inch) RAM rubber ball allows attachment to any D-size RAM double socket arm. RAM's ball-and-socket technology provides almost unlimited adjustability, so the display can be positioned at an angle suitable for use.
The structure is made of powder-coated marine-grade aluminum, designed to withstand use in demanding environments. The sturdy 120.7 mm (4.75 inch) square plate, 4 x 100 mm and 4 x 75 mm hole patterns, and the included mounting hardware make the assembly a reliable base for large displays and other VESA-compatible devices.
The mounting plate comes with RAM's lifetime warranty, emphasizing the product's design for long-term use. The weight capacity is 2.7 kg (6 lb) for normal use and 2.3 kg (5 lb) for heavy-duty use, making the plate particularly suitable when the display and mounting require sturdiness and good adjustability.
RAM 100x100mm VESA Plate with Ball D - Features:
- Product Type: VESA-standard display back plate with D-size RAM ball
- Intended Use: for mounting displays, sonar displays, and other VESA-compatible devices
- Compatibility: devices with VESA hole patterns
- Specific Compatibility: directly compatible with the back cover of the Saxa Helm Pro sonar display
- Hole Pattern: 4 x 100 mm and 4 x 75 mm holes in the corners
- Plate Shape: square plate
- Plate Size: 120.7 mm x 120.7 mm (4.75 inches x 4.75 inches)
- Ball Size: D-size, 57.2 mm (2.25 inches)
- Mounting System: compatible with D-size RAM double socket arms
- Adjustability: RAM ball-and-socket technology allows extensive adjustability
- Material: marine-grade aluminum
- Coating: powder-coated finish
- Weight Capacity for Normal Use: 2.7 kg (6 lb)
- Weight Capacity for Heavy-Duty Use: 2.3 kg (5 lb)
- Weight: 0.404 kg
- Packaging Type: poly bag
- Included: 4 pcs of 7.9 mm x 4.7 mm (0.312 inch x 0.187 inch) flanged washers
- Warranty: lifetime warranty
RAM 100x100mm VESA Plate with Ball D provides the user with a sturdy and highly adjustable solution for mounting displays. It is an excellent choice when strong VESA mounting, D-size RAM compatibility, and durable aluminum construction are needed in one package.
Recommended Use: particularly suitable for mounting large compatible marine displays and sonar displays where sturdy mounting, adjustable viewing angles, and compatibility with the RAM D-size system are required.
Product text updated on 14.7.2026.
