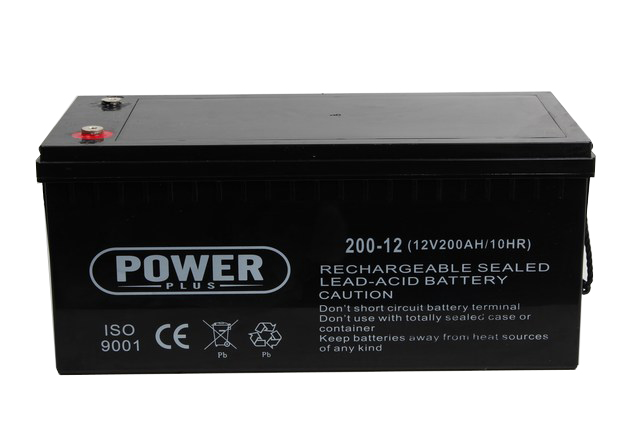

Power Plus AGM

Power Plus AGM - batteries are extremely durable and efficient AGM batteries designed for solar power systems. Thanks to their structure, the self-discharge of the batteries is very low and the charge acceptance is excellent. All Power Plus AGM batteries have a long service life, significantly longer than traditional lead standard batteries. Power Plus AGM batteries are maintenance-free, so there is no need to add water afterwards.

The range includes two different AGM batteries for solar systems. Both are extremely efficient and sized for the solar systems we sell.

Power Plus AGM batteries:

• Available: 12V 200Ah and 12V 250Ah
• Dimensions:
  12V 200Ah 522*238*223mm
  12V 250Ah 522*266*224mm
• Weight:
  12V 200Ah 59kg
  12V 250Ah 71.5kg
• Terminals:
  12V 200Ah - M8 threaded terminals
  12V 250Ah - M8 threaded bolts

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life, float or cyclic applications
• Maintenance-free operation
• Low self discharge

Power Plus AGM 12V 250Ah Main Features:

• Nominal Voltage: 12V
• Number of cell: 6
• Design Life: 10years
• Nominal Capacity 77°F(25°C)
  10 hour rate (20.0A, 10.8V): 250Ah
  5 hour rate (36.0A, 10.5V): 218Ah
  1 hour rate (128A, 9.6V): 153Ah
• Fully Charged battery 77°F(25°C): ≤4.0 mOhms
• Self-Discharge: 3% of capacity declined per month at 20°C(average)
• Operating Temperature Range:
  Discharge: -20~60°C
  Charge: -10~60°C
• Max. Discharge Current 77°F(25°C): 2600A(5s)
• Short Circuit Current: 4500A

• Charge Methods: Constant Voltage Charge 77°F(25°C)
• Cycle use:2.40-2.45VPC
• Maximum charging current: 78A
• Temperature compensation: -30mV/°C
• Standby use: 2.20-2.30VPC
• Temperature compensation: -20mV/°C
