Patriot MultiFix Transducer Mount

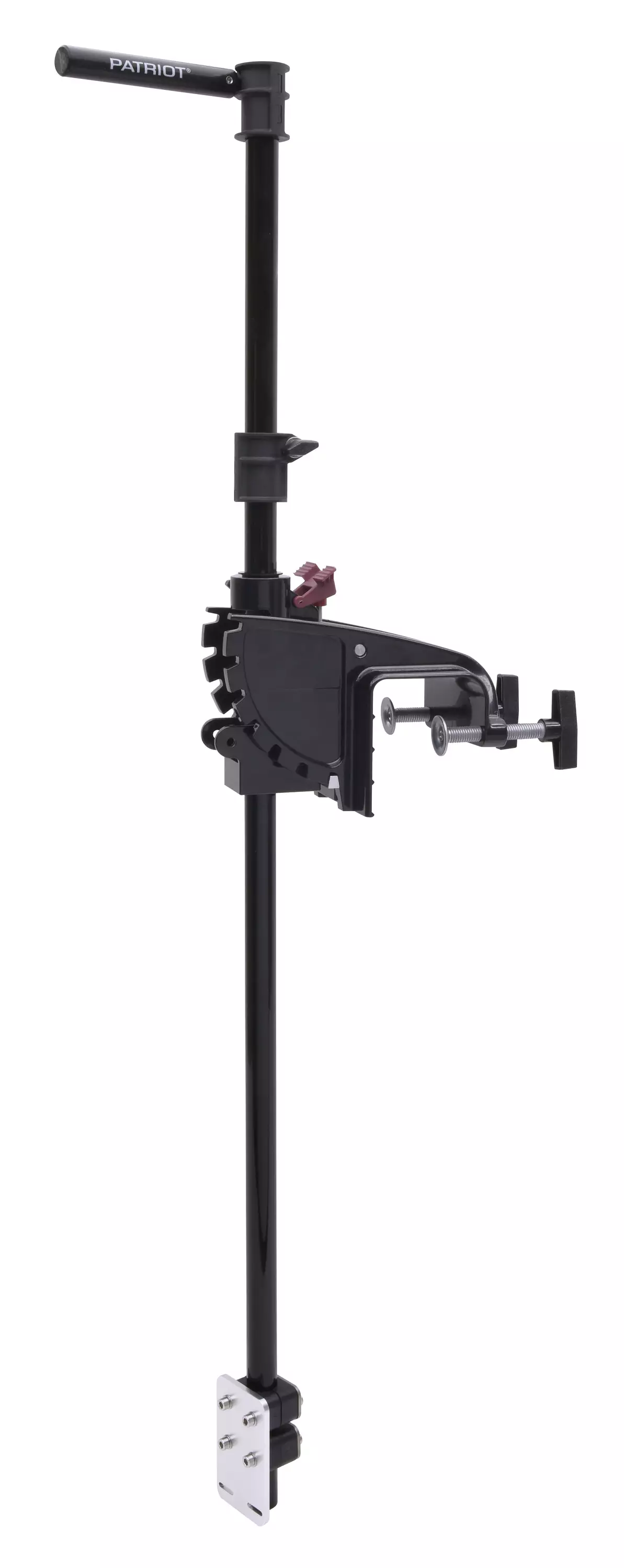

Patriot MultiFix Transducer Mount - the sturdy and easily movable Patriot MultiFix transducer mount is designed to be compatible with all types of sonar transducers. The aluminum mounting plate at the bottom of the transducer mount has pre-made hole patterns for the most commonly used side and transom transducers. In addition to transom-mounted transducers, various live transducers (e.g., Lowrance ActiveTarget, Lowrance LiveSight, Garmin Livescope, and Humminbird Mega Live) can also be directly attached to the shaft of the mount. The height and rotation of the Patriot MultiFix transducer mount can be adjusted completely steplessly using the quick lock in the mounting jaw. The upper part of the transducer mount tube also has another steplessly adjustable quick lock and a control handle, which allow the mount to be rotated steplessly 360 degrees when using a live transducer. The handle at the top of the mount is also attached to the tube with a quick lock, so it can be easily removed if the transducer mount does not need to be rotated.

The Patriot MultiFix transducer mount, designed for as many different boats and purposes as possible, has a sturdy metal-framed mounting jaw with a 7-step tilt angle adjustment, and a sufficiently long (115cm) composite shaft, which can also be easily shortened to fit your own boat if necessary. No tools are needed to attach the Patriot MultiFix transducer mount to the boat, and it can be installed on the side or transom of any boat with a maximum width of 82mm. With the easily movable Patriot MultiFix transducer mount, the same transducer and sonar can be used on different boats. By attaching the Patriot MultiFix transducer mount, for example, to the side of a sled, the same mount can also be used well in winter use.

Patriot MultiFix Transducer Mount additional information:

• Sturdy, metal mounting jaw
• Maximum thickness of the mounting point 82mm (e.g., side/transom)
• 7-step tilt angle adjustment
• Durable composite shaft
• Shaft length 115cm
• Shaft diameter 25mm
• Stepless height adjustment
• Stepless rotation adjustment 360 degrees
• Removable handle at the top
• Lockable in the desired position
• Quick adjustment thanks to quick clamps
• No tools needed for mount installation
• Pre-made hole pattern in the mounting plate for all common transom transducers
• Live transducer can be installed directly on the tube (e.g., Garmin Livescope, Lowrance ActiveTarget & LiveSight, and Humminbird Mega Live)
• Excellent for vertical jigging
• Excellent for live transducers
• Also suitable for winter use, for example, when attached to a sled


Product text updated 26.9.2026.
