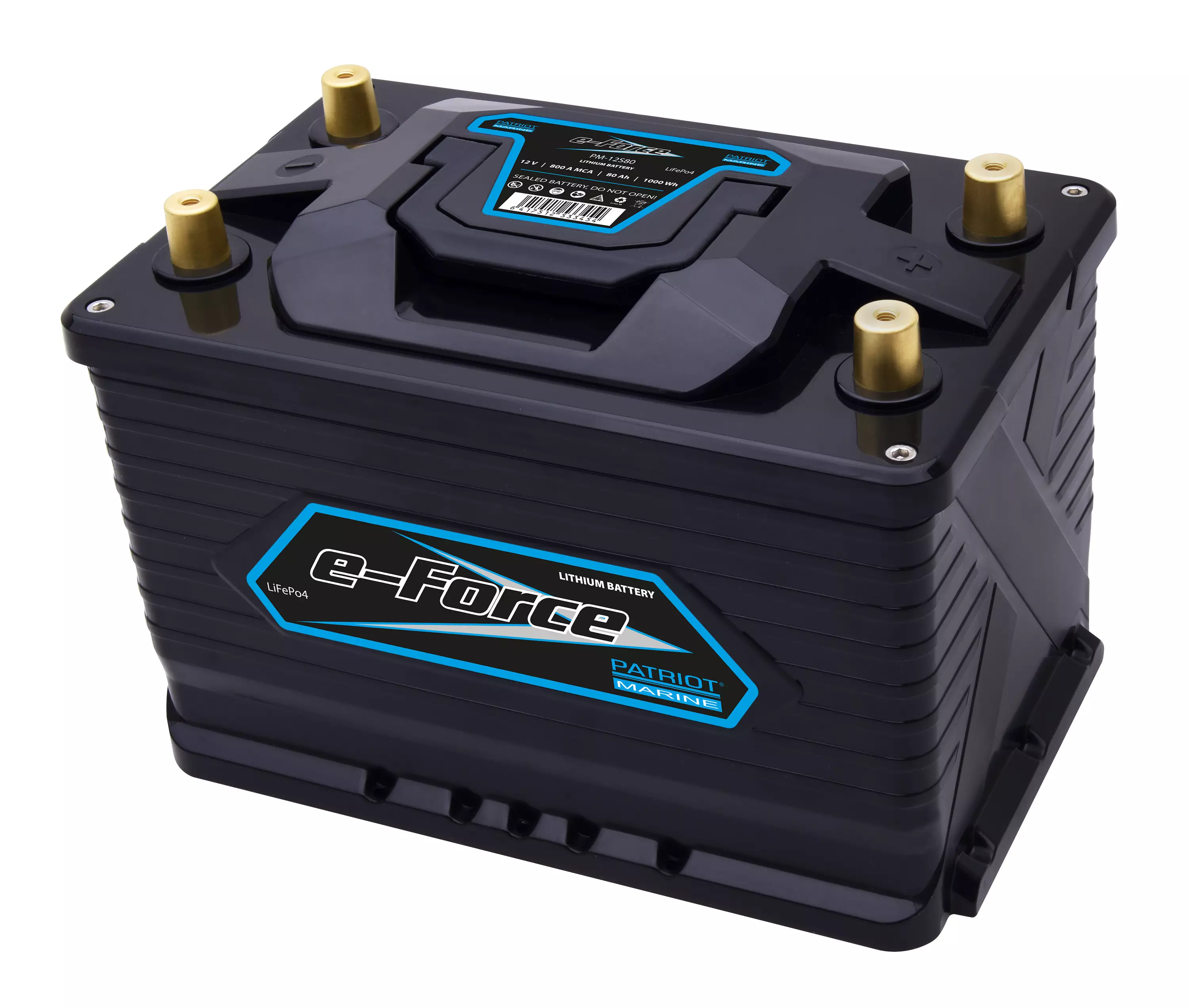

Patriot Marine E-Force - lithium combination starter and electronics batteries are an excellent new addition to the lithium battery market. Patriot® Marine e-Force LiFePO4 lithium batteries are suitable for demanding boating use and meet the power needs of modern boat electronics. Patriot® Marine e-Force lithium batteries are equipped with an advanced Dual BMS (Battery Management System), which allows the same battery to be used for starting the outboard motor (NOTE! only 12V batteries), as well as a power source for all other electronics used on the boat (e.g. fish finders, chart plotters & bow electric motors). Top-class cells and high-quality BMS enable a large 100A continuous discharge current and up to 800A starting current! By choosing the efficient Patriot® Marine e-Force battery as the boat's power source, all the devices on the boat can be powered from the same battery, and a separate leisure battery is not necessarily needed.
Completely maintenance-free and extremely long-lasting (up to 4000 charge cycles) Patriot® Marine e-Force lithium batteries are perfectly suited as a power source for fish finders, bow electric motors, and electric outboard motors due to their stable voltage. The battery's excellent ability to deliver large discharge currents also ensures that, for example, the bow electric motor always gets the best possible power output. In addition to excellent discharge capability, Patriot® Marine e-Force lithium batteries can also accept power well and thus charge very quickly. High-performance and deep-discharge resistant Patriot® Marine e-Force lithium batteries are even over 50% lighter compared to a lead-acid battery of the same power. In addition, the battery's usable capacity is up to 50% greater than in a lead-acid battery of the same size! Patriot® Marine e-Force lithium batteries are worry-free and safe to use due to their high-quality built-in BMS. The entire nominal capacity of the battery can be safely discharged, as the built-in BMS prevents the battery from being damaged and also monitors, for example, excessively high charging currents and temperatures. The wide operating temperature range allows the safe use of Patriot® Marine e-Force lithium batteries even in winter. If the battery is connected to an outboard motor, use is not recommended at temperatures below 0°C, as the outboard motor's alternator can damage the battery. The water-protected and IP67-rated battery withstands vibration and shocks caused by driving in waves excellently. Patriot® Marine e-Force lithium batteries can be installed upright or on their side, and the battery's dual terminals facilitate device installations.
Patriot® Marine e-Force lithium batteries can be charged with all battery chargers that have a charging program suitable for AGM and LiFePO4 lithium batteries.
Patriot® Marine e-Force lithium batteries are recommended for use in starting outboard motors up to a maximum of 250 horsepower. The suitability and limitations of the battery must be checked with the outboard motor manufacturer before use.
Patriot Marine E-Force features:
- Maintenance-free
- Suitable as a starter battery and leisure battery
Only 12V 80Ah and 12V 110Ah are also suitable as starter batteries. 24V 50Ah only for use in a 24V system - Operating temperature -20 °C ? +60 °C
- Charging temperature +0 °C ? +45 °C
- Storage temperature +15 °C ? +35 °C
- Charging with a program suitable for AGM and LiFePO4 lithium batteries
We recommend Victron's 12V 15A IP65 or Victron's 12V 17A IP67 chargers for 12V E-Force batteries and Victron's 24V 12A charger for E-Force 24V battery - Can be installed upright or on its side
- Cyclic lifespan DoD 10% > 4000 cycles
- Cyclic lifespan DoD 100% > 2000 cycles
- Protection class IP67
- Fire rating UL94-V0
- Dimensions:
12V 80Ah 27.9 cm x 17.5 cm x 18.9 cm - Weight 10.5kg
12V 110Ah 27.9 cm x 17.5 cm x 18.9 cm - Weight 12kg
24V 50Ah 27.9 cm x 17.5 cm x 18.9 cm - Weight 11.8kg - Warranty 12 months
Patriot Marine E-Force additional information:
12V 80Ah
- Nominal voltage 12.8 V
- Voltage range 8.0?14.6 V
- Battery capacity 80 Ah
- Energy 1000 Wh
- Battery type LiFePO4
- Max. continuous discharge current 100A
- Starting current 800 CA
- Brass dual terminals (M6 thread) ? Polarity -/+
- Charging method CC/CV standard 16 A
- Charging method CC/CV quick 100 A
12V 110Ah
- Nominal voltage 12.8 V
- Voltage range 8.0?14.6 V
- Battery capacity 110 Ah
- Energy 1350 Wh
- Battery type LiFePO4
- Max. continuous discharge current 100A
- Starting current 800 CA
- Brass dual terminals (M6 thread) ? Polarity -/+
- Charging method CC/CV standard 22 A
- Charging method CC/CV quick 100 A
24V 50Ah
- Nominal voltage 25.6 V
- Voltage range 16.0?29.2 V
- Battery capacity 50 Ah
- Energy 1250 Wh
- Battery type LiFePO4
- Max. continuous discharge current 100A
- Starting current 800 CA
- Brass dual terminals (M6 thread) ? Polarity -/+
- Charging method CC/CV standard 10 A
- Charging method CC/CV quick 100 A
