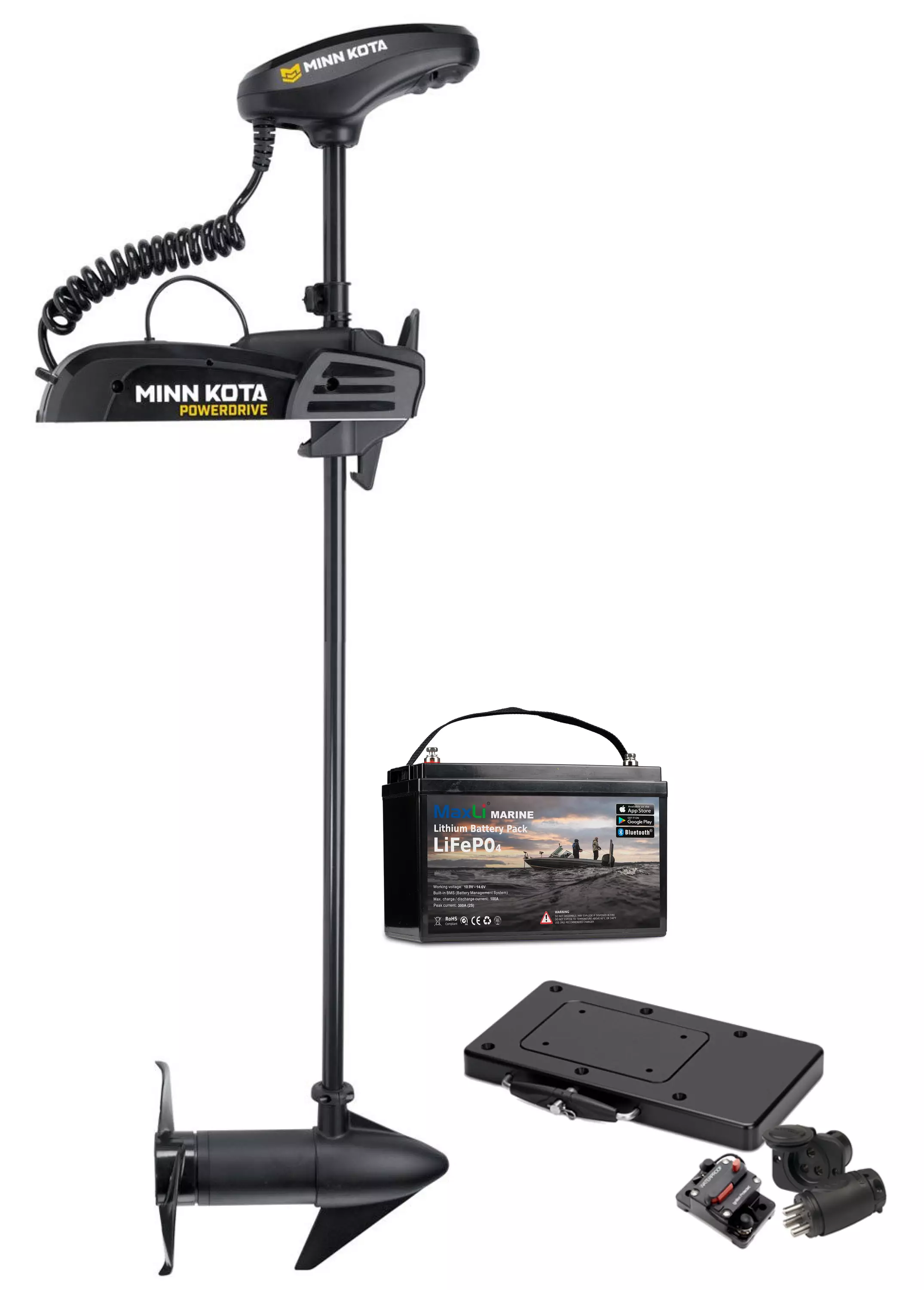

Minn Kota PowerDrive Micro 24V 70lb 54" GPS with MaxLi Marine LiFePO4

Highly acclaimed package, including the popular 24V bow electric motor; Minn Kota PowerDrive MR 70lb 24V 54" with accessory package and a very efficient MaxLi Marine 24V 50Ah lithium battery

Minn Kota PowerDrive MR - bow electric motor is a new generation PowerDrive with versatile features appreciated by anglers. The One-Boat Network connection allows your motor to be integrated into a broader device system. The motor can also be fully controlled with a free mobile app. Guaranteed Minn Kota quality, made in the USA.

• Advanced compact and waterproof GPS micro remote control: manage with Minn Kota's new improved GPS control. The Micro Remote can control functions: propeller on/off, steering, speed, Spot-Lock, autopilot, and quick button for full throttle. A remote control with a display is available as an accessory.
• One-Boat Network standard: The motor has a One-Boat Network connection ready and includes everything you need to connect to network-compatible Humminbird fish finders. Network-compatible devices such as Humminbird fish finders and radars, Talon/Raptor shallow water anchors, and Cannon downriggers can also be connected to the network.
• Control the motor with the remote control, One-Boat Network mobile app, or from the Humminbird fish finder screen.
• Support for the optional JOG function, which allows adjusting Spot-Lock anchoring forward, backward, right, and left in 1.5-meter increments (requires heading sensor and GPS remote with display).

The motor's frame has a battery charge status display, which is easy to read with the push of a button. Digital Maximizer extends runtime. The connection to the Humminbird fish finder is made with the 9-meter ethernet cable included with the motor (also includes the QDE adapter cable required for the Helix series).

Bow motors are generally ordered with an accessory package. The accessory package includes a Minn Kota Nylon quick foot, 60A automatic circuit breaker, and power connectors.
Note that if the manufacturer/importer has issues with delivering the accessory package section, the power connectors or quick foot may be replaced with another brand to ensure the package is delivered to customers. The accessory package parts always fit your ordered bow motor even if they are parts from another brand. We always strive to deliver our own brand products.

Minn Kota PowerDrive MR additional information:

• Control: Micro Remote (Advanced GPS) / mobile APP / Humminbird fish finder (Compatible with Humminbird Network fish finder.)
• Saltwater resistant: No
• Includes fish finder sensor: No
• Circuit breaker size: 60A automatic circuit breaker
• Recommended quick foot: MKA-21
• Propeller: Power Prop (MKP-37)
• Battery charge status display: On motor frame

• M1358471 PowerDrive 70 MR 54"
• Thrust: 70 lb / 32 kg (24V)
• Shaft length: 54 inches/137 cm
• Maximum boat size: 7.6 m (25') / 1800 kg


In the package:

• Minn Kota PowerDrive bow electric motor, Micro-remote control and lanyard, 9m ethernet cable, Humminbird HELIX adapter cable.

MaxLi Lithium Ion Battery - are excellent lithium batteries. These batteries are specifically designed for boating use and are ideal for electric bow motors, electric outboard motors, and all boat electronics.
Maxli Marine 12V 60Ah and 12V 100Ah as well as 24V 50Ah - 24V 100Ah batteries have a Bluetooth app, which makes it easy for you to monitor the battery status during the day. You quickly get information on how much power and voltage is in the battery, but the app also tells you about the battery's operation, temperature, charge cycles, and any warnings that have come to the battery's BMS controller. The MaxLi Marine BMS controller manages the battery's operation and prevents the battery from being completely discharged or overcharged, making lithium batteries significantly longer-lasting and therefore always a more economical solution than AGM batteries.

All MaxLi Marine batteries are LifePo4 lithium batteries and are therefore very durable and long-lasting. You can charge MaxLi Marine batteries about 3000 times from empty to full, so we can at least talk about a long-term investment. LifePo4 material is durable and although slightly heavier in mass than other Li-Ion materials, LifePo4 withstands load very well and is therefore very safe and durable. You can practically use 100% of the battery, making it equivalent to a much larger AGM, lead, or gel battery. The MaxLi Marine 12V 60Ah weighs about 8kg and is equivalent in power to over 100Ah AGM battery and about 120Ah lead battery. An AGM or lead battery of equivalent power size weighs about 25-30kg.

• MaxLi Marine 24V 50Ah is one of the best general-purpose batteries for 24V system electric bow motors. A very powerful and compact battery that allows you to fish effectively all day. This battery weighs only 13kg, so if you were to install two 12V 100Ah AGM batteries to get the same power, they would weigh about 60-70kg together.
  We recommend the Victron 24V 12A IP67 mains charger for these batteries

All MaxLi Marine batteries use Top A cells.

MaxLi Marine battery dimensions:

• 24V 50Ah 14kg - 329*172*214mm

MaxLi Marine batteries can be installed on their side, but we always recommend a battery base and upright installation, as current lithium batteries are so light that waves and impacts on the water, as well as rapid accelerations and water braking, can damage the battery. The battery comes with a carrying handle and clearly marked battery terminal bolts.

Charging the battery:
Please note that lithium batteries should always be charged with a charger that has a lithium function. We recommend Victron 24V system 12A chargers, which are excellent smart chargers for charging and maintenance. Always use at least 10A chargers. If the charger is permanently installed in the boat, remember to choose a charger that withstands moisture.

Winter storage and other important information:
Lithium batteries are not stored fully charged, about 60-80% charge is a suitable level. Charge the battery fully and leave the battery without connecting it to a maintenance charger. Under normal conditions and room temperature during the winter, the battery will not discharge completely, as the monthly discharge is small. The battery discharges itself on average 3% per month. The storage temperature should not go below -15%, so the battery is not recommended to be stored in a cold garage or boat to prevent the BMS controller from being damaged.

Bluetooth connection to phone - Bluetooth connection from Maxli 12V 40Ah size onwards. Batteries under 40Ah do not have a Bluetooth connection.
You can download the MaxLi Marine application to your phone and use it to check, for example, the voltage, the amount of current as a percentage, the battery temperature, the general condition of the battery, or the number of cycles used, as the battery has built-in Bluetooth. A handy additional feature that allows you to ensure how much power is available for the fishing day or what is the power consumption of your electrical devices.
The Bluetooth connection works with the UMXLI Battery app on Apple or Android phones and tablets.

MaxLi Marine 24V 50Ah Main Features:

• Nominal Voltage: 25.6V
• Nominal Capacity: 50Ah
• Energy: 12800Wh
• Internal Resistance: ≤50 mΩ
• Cycle Life: >3,000 cycles @1C 80% DOD
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96%~99% @1C
• Self Discharge: <3% per Month
• Dimensions (L x W x H): 330 x 173 x 217 mm
• Weight: 13.5kg
• Terminal Type: M8
• Case Material: ABS
• Enclosure Protection: IP56
• Cell Type - Chemistry: Cylindrical or Prismatic- LiFePO4
• Maximum Continuous Discharge Current: 50A
• Peak Discharge Current: 80A (<5s)
• BMS Discharge Voltage Cut-Off: 20V
• Short Circuit Protection: Yes
• Recommended Charge Current: 30A
• Maximum Charge Current: 60A
• Charge Temperature: 0 to 45 °C, Discharge Temperature:-20 to 60 °C, Storage Temperature: 0 to 40 °C

MaxLi Lithium Ion Battery Main Features:

• Drop in replacement- Group size as standard lead acid battery
• Zero Maintenance
• Easy installation
• Deep cycle
• 10X longer life compared to SLA batteries
• 60% more energy at same weight
• 75% lighter than AGM
• 100% usable capacity
• 99% efficiency
• 3000-5000 cycle life
• Connect in parallel or series
• Faster charging times
• ROHS Compliant
• UN 38.3 transportation
• Built in battery management system (BMS) and bluetooth

Built in battery management system (BMS)

• Over-Charging
• Over-Discharging
• Short Circuit
• Thermal Shock
• No Fires
• No Explosions Short
• Reverse Polarity Protection
• Bluetooth

Cycle Life - capacity at different cycles at 100% DOD

• Capacity % @ 100 Cycles 100%
• Capacity % @ 500 Cycles 96%
• Capacity % @ 1000 Cycles 90%
• Capacity % @ 1500 Cycles 85%
• Capacity % @ 2000 Cycles 80%
