Lowrance / Simrad Yamaha Engine Interface Cable for NMEA2000

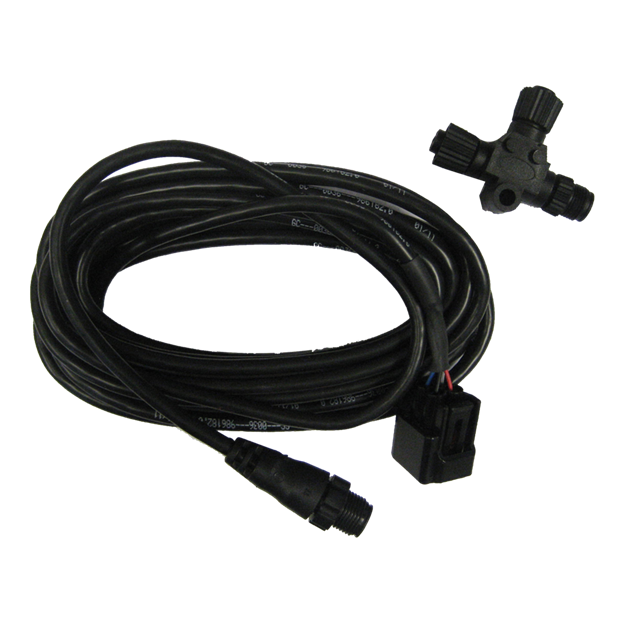

Lowrance / Simrad Yamaha Engine Interface Cable for NMEA2000 -  the 15-foot Yamaha Engine Interface cable allows Yamaha engines to connect directly to a Lowrance NMEA 2000 network without the need for the CommandLink Plus system. The interface cable comes with a NMEA 2000 network T-connector.

Note that the boat must already have an NMEA 2000 network. If you do not yet have an NMEA 2000 network, you can easily build one with the NMEA 2000 Starter Kit.

Yamaha Engine Interface Cable details:

• Connects to Yamaha engines without Yamaha CommandLink Plus system.
• -2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
  -2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
• Yamaha| 4-stroke 50-250| 2-stroke HDPI 150-350
  RPM:                        Yes| Yes
  Alternator Voltage:   Yes| Yes
  Engine Hours:          Yes| Yes
  Engine Temperature:Yes| Yes
  Fuel Pressure:           Yes| Yes
  Fuel Rate:                 Yes| Yes
  Oil Pressure:             Yes| Yes
  Trim:                         Yes| Yes
  Water Pressure:         Yes| Yes
• *Digital trim must be connected by a Yamaha dealer.
• *Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
