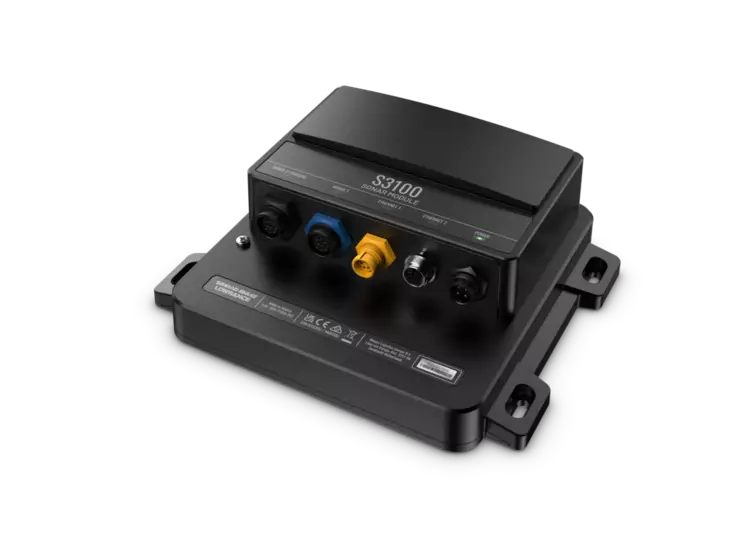

Lowrance S3100 Sonar Module - The S3100 provides full support for high-definition Active Imaging HD sonar to HDS LIVE and
Elite FS displays and FishReveal SideScan for HDS PRO. Active Imaging HD delivers the clearest images of fish and structure with Lowrance CHIRP sonar and high-frequency (up to 1.2 MHz) SideScan and DownScan Imaging - plus FishReveal DownScan and NEW SideScan views, making fish identification easier below and to the sides of the boat.
FishReveal Sidescan View - Fish will be easy to see on both sides of the boat with the new FishReveal SideScan view, which takes the guesswork out of fish identification by combining on one screen the incredible detail of high-frequency SideScan with the superb clarity and target separation of Lowrance CHIRP sonar. Available for HDS PRO, HDS LIVE and Elite FS displays.
Track Multiple Depth Ranges - With two fully independent 1kW sonar channels, you can connect the S3100 to up to two additional transducers to track multiple depth ranges at the same time.
Designed for Clarity - The Active Imaging HD transducer not only delivers three key sonar technologies - Lowrance CHIRP, SideScan and DownScan Imaging - in one convenient package, but also features a new transducer design that boosts signal clarity.
Lowrance S3100 Sonar Module Main Features:
- Brings Active Imaging HD support to HDS Live, HDS Carbon and Elite FS
- Delivers the highest resolution images of fish and structure with high-frequency (up to 1.2 MHz) SideScan/DownScan Imaging
- Enables FishReveal SideScan for HDS PRO, HDS LIVE and Elite FS displays
- Outstanding fish-finding and bottom tracking capability with two, fully independent 1kW sonar channels
- Compatible with wide-angle transducers for greater coverage
- Combine any two CHIRP frequency ranges to track multiple depth ranges simultaneously
- 1GB Ethernet capability
