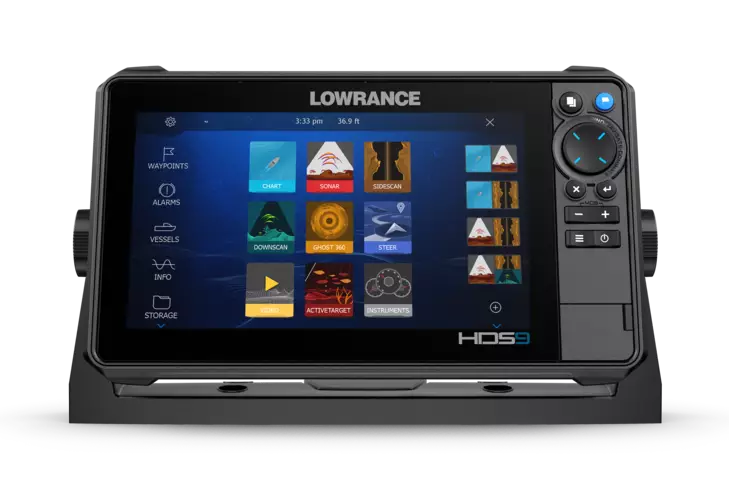

Lowrance HDS Pro 9

Lowrance HDS Pro - experience the next level of fishfinding with new HDS PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP charts and complete bow-to-stern control.

NEW Active Imaging HD Transducer - Get the clearest images of fish and structure with Lowrance Sidescan and Downscan sonar. And experience FishReveal SideScan and DownScan views, to easily identify fish to the sides and beneath the boat.

Lowrance HDS Pro Main Features:

• Full range of best-in-class sonar, including high-definition Active Imaging HD
• The highest resolution live sonar available with ActiveTarget 2 Live Sonar
• Expanded Chart/Sonar overlay features
• Quickly find fishing areas with the latest and most detailed C-MAP charts and enjoy full fishing system networking with expanded boat control from bow to stern
• Expanded and improved Ghost and MotorGuide trolling motor controls allow the user to position the boat exactly where they need it while fishing
• Anchor at a distance
• Orbit a waypoint
• Available in 9", 10", 12", and 16" screen sizes

• Active Imaging HD 3-in-1 combined with HDS Pro shows users the clearest, highest resolution images of fish and structure
• Active Imaging HD allows for HDS Pro users to select the desired frequency for Side and Down separately so the angler can pick the right range/resolution for the desired view

• SideScan Frequencies: Low CHIRP Freq. : 455 kHz (445-495 kHz) High CHIRP Freq. : 1075 kHz (1065-1115 kHz)
• DownScan Frequencies:  Low CHIRP Freq. : 700 kHz (690-740kHz) High CHIRP Freq. : 1225 kHz (1215-1265 kHz)
• Side/Down Independently Selectable Freq. : Yes, Independently mix-and-match side and down frequency ranges to get the picture that you want
• Range: Max 150ft range at High Frequency, Max 300ft range at 455 (Low Frequency)

Product text updated 26.9.2026.
