- Product Code: 000-06642-001
- EAN: 6417512545167
- Warranty: 2 years

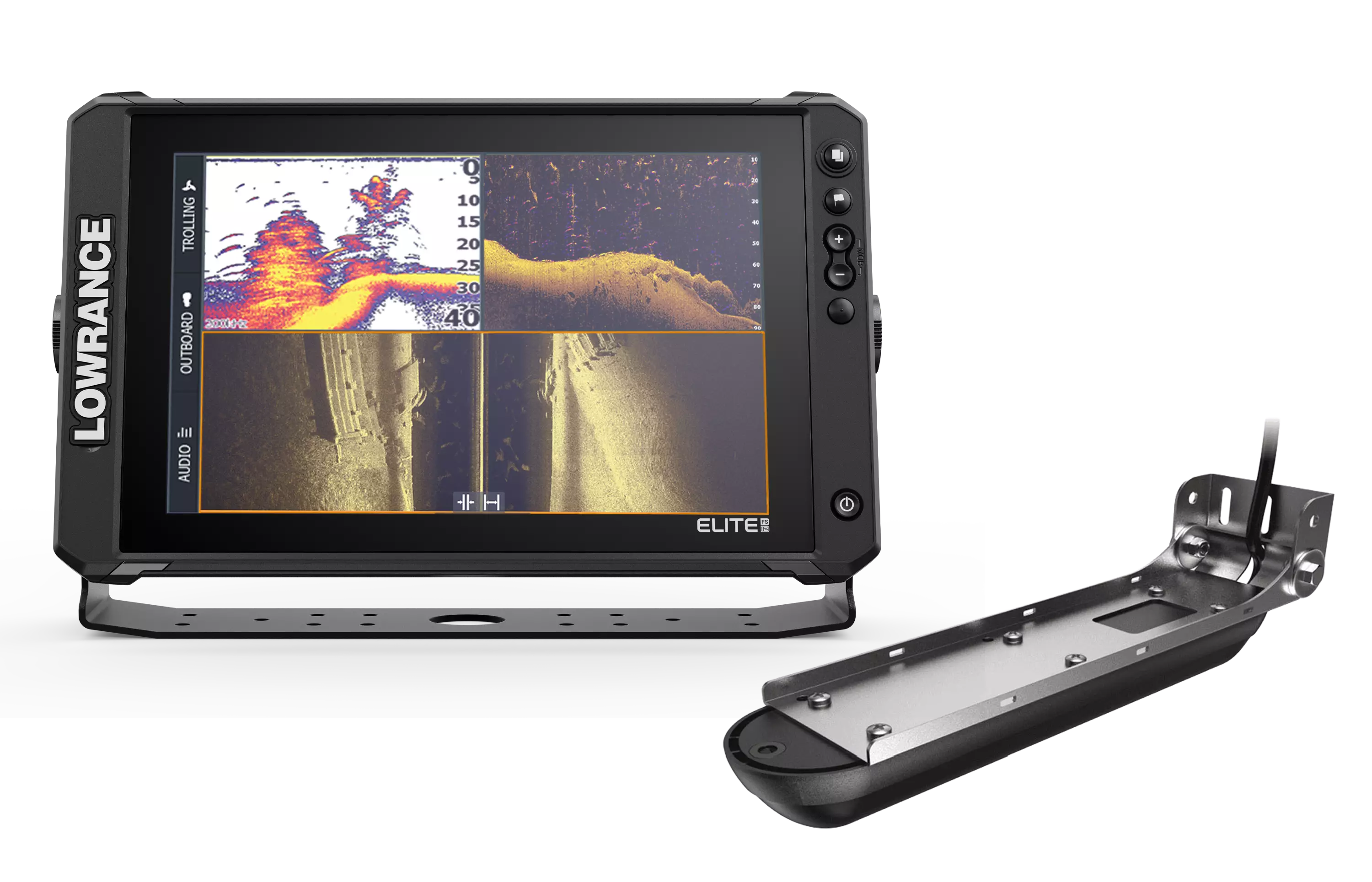

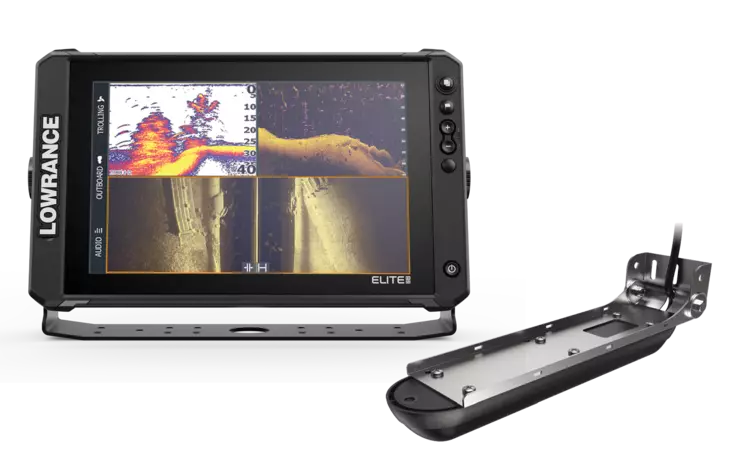

Lowrance Elite FS 12 Black - is a complete electronics system for every fishing boat.
Lowrance FS (Fishing System) offers you even easier fishing and the opportunity to use all of Lowrance's most revolutionary sonar technologies, such as Active Target live sonar, Active Imaging 3-in-1 sonar transducer and FishReveal target tracking. In addition to the NMEA2000 network, the Lowrance Elite FS also supports Ethernet, which allows for versatile networking and connectivity of additional equipment to the device. You can control and connect Your Elite FS device includes an autopilot, bow thruster, radar, VHF phone, SonicHub2 playback system, and engine data monitoring for your boat. Build a complete fishing system around your Elite FS device!
The multi-touch display Elite FS device features Lowrance's familiar and easy-to-use user interface. The bright, high-resolution display of the Lowrance Elite FS is clearly the best that has ever been seen in the Elite series. The flat glass display with an anti-reflective coating provides excellent visibility in all conditions.
The Lowrance Elite FS is designed to make fishing and sonar easier and more efficient than ever. It features support for Active Target live sonar, a highly accurate Active Imaging transducer, FishReveal target tracking, built-in Genesis Live mapping, and many other features that make fishing on the water even easier. By connecting the Elite FS to the Active Target live sonar, you can monitor a very accurate and detailed underwater view in real time. With the Active Target live sonar, you can see your lure moving under the surface, the fish following it and their reactions, and even identify the fish species. The Active Target live sonar now takes fishing to a whole new level!
The Lowrance Elite FS device is compatible with the Active Imaging 3-in-1 sonar (CHIRP, SideScan and DownScan), which allows you to see very clearly and high-resolution images of fish and structure at a longer range than any other structure imaging technology offers. The transducer also includes the Fishreveal function found only in Lowrance devices, which combines the best of CHIRP and DownScan Imaging sonar technologies into one view and makes it easier for you to interpret fish among the bottom structure.
Note: This product comes with an Active Imaging 3-in-1 transducer.
The Lowrance Elite FS device provides you with useful information that you can use when boating on the water. is easy and safe. You can easily monitor and control the map, autopilot, depth readings, position information, battery voltage and other critical boat information from the same screen, so you always have a quick overview of the current situation. The Elite FS also has a programmable hotkey that allows you to select your most important functions or displays easily and quickly. Easy to use and easy to install, the Elite FS meets all the requirements set for today's marine electronics, whether you are a recreational boater or a professional. or the serious angler.
The powerful Elite FS also offers even more powerful navigation features, with C-MAP Easy Routing + Navionics Autorouting and real-time Genesis Live mapping. With the built-in real-time Genesis Live mapping feature, you can also create your own maps of your favorite fishing spots or a lake where there is no detailed map. You can record your own more detailed maps, with lines up to 15cm in resolution displayed in real time on your sonar display. Recordings can be created on existing C-MAP chart data or on a blank memory card.
Lowrance Elite FS 12" Black - additional information:
- Active Imaging 3-in-1 (CHIRP/SideScan/DownScan) compatibility
- Active Target Live compatibility
- Livesight Live compatibility (requires PS-1 module)
- Lowrance HALO sonar compatibility
- Lowrance Outboard Pilot autopilot compatibility
- Communication networks: NMEA 2000 (Micro-C) x1 and Ethernet x1
- Black (9-pin) transducer port
- C-MAP Genesis Live
- Ämobile notifications
- Älykäs FishReveal target tracking
- C-MAP Easy Routing, Navionics Autorouting functions
- Easy to use and fast
- Bright display with improved resolution and wider viewing angle
- Built-in CHIRP and Broadband Sounder
- Lowrance Ghost bow thruster control from the touchscreen
- MotorGuide Xi3 and Xi5 - touch screen control of the bow thruster
- Touchscreen control of Power-Pole shallow water anchors
- Integrated wireless Wi-Fi and Bluetooth
- SonicHub2 compatibility
- NMEA 2000 engine support
- With improved surface noise suppression, you can see more fish that are close to the surface.
- The quick access control bar gives you one-touch access to system settings.
- Micro SD card slot (max. 32GB)
- Storage: 3000 waypoints, 100 routes & 100 tracks
- Easy flush mounting or mounting bracket
- Waterproof rating IPX7
- Display resolution 1280x800
- Operating mode range -15 C to +55 C
- Use 12v DC (10.8-17VDC)
- Typical current consumption 2.0A (9 devices)
- Language options: Finnish, Swedish, English (UK & US), Afrikaans, Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil & Portugal)
Package includes:
- Elite FS Black combo device and screen protector
- Active Imaging 3-in-1 perämirror sensor
- Mounting bracket
- Power cord and fuse
- Instructions for use (Finnish instructions available for download at www.lowrance.com)
Product text updated on October 2, 2026.
