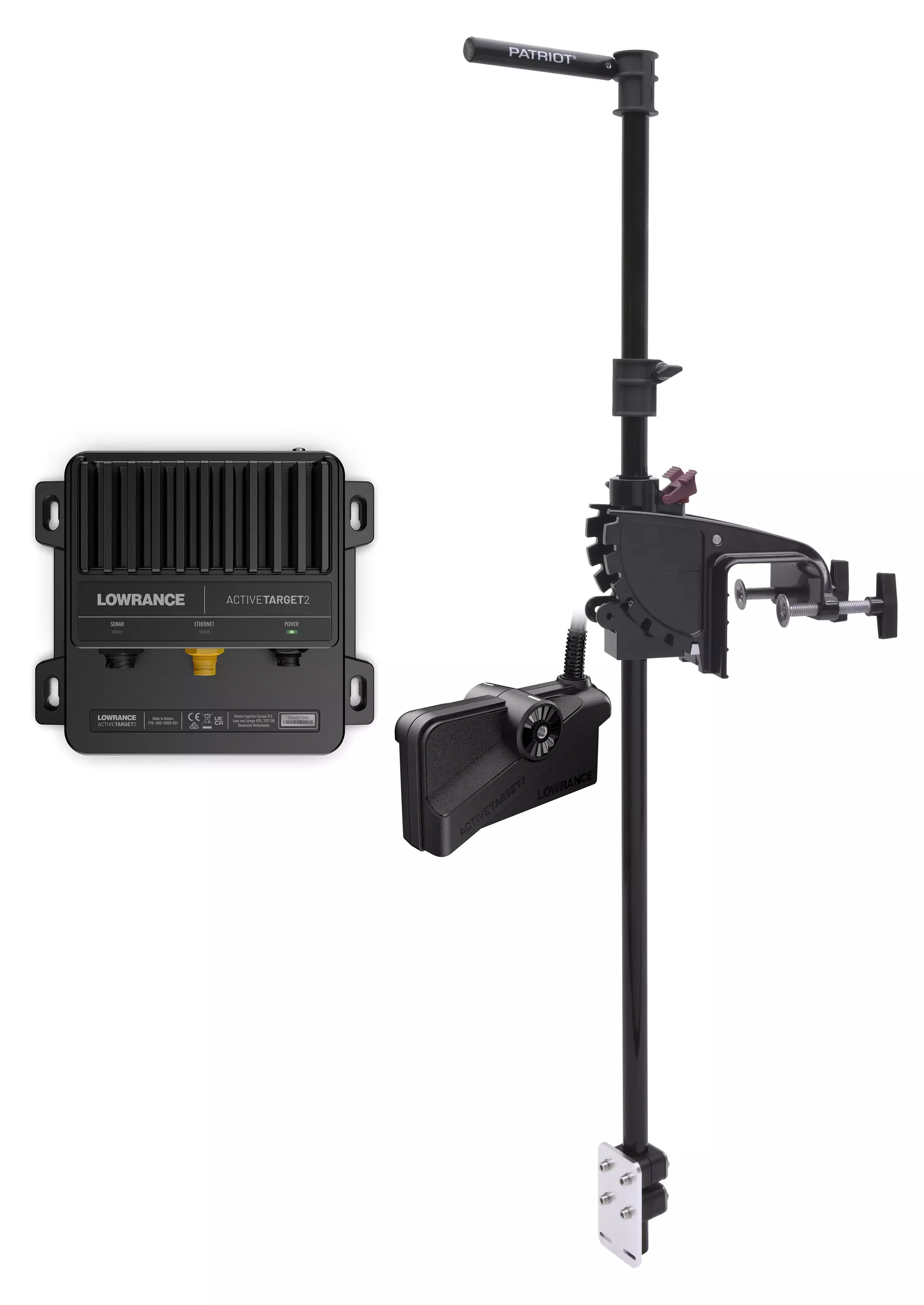

Lowrance Active Target 2 and Multifix transducer mount

Lowrance live transducer package with mount
Lowrance Active Target 2 and Multifix transducer mount - Lowrance/Simrad Compatible - 9420064128235B - 1
Lowrance Active Target 2 and Multifix transducer mount - Lowrance/Simrad Compatible - 9420064128235B - 1
We have created a ready-made package of our most popular transducer mount and the Lowrance Active Target 2 live transducer. This package works great together and you can attach the Patriot MultiFix... Read more
1 999,00 €
  • Product Code: 9420064128235B
  • Warranty: 2 years
pcs

We have created a ready-made package of our most popular transducer mount and the Lowrance Active Target 2 live transducer. This package works great together and you can attach the Patriot MultiFix mount to many boats and, of course, to a sled in winter. A high-quality package that you can now get as a pre-order at the price of the Lowrance Active Target 2!

Lowrance Active Target 2 - is a new amazing Lowrance live transducer! The Lowrance Active Target 2 transducer has high resolution, so you get an incredibly detailed and clear image. Details are beautifully highlighted from fish and objects on the bottom. The image remains stable and the Active Target 2 image is very easy to read. Lowrance's color scheme is great and the image is smooth, making it enjoyable to follow. You can track targets from even further away and clearly.

  • Compatible with Lowrance HDS Pro, HDS Live, HDS Carbon, and Elite FS displays.

Two transducers - one image! - Lowrance Active Target 2 also means a completely new way to combine live transducers! You can now view two Active Target 2 live transducer images on the same screen at the same time, with the images seamlessly interleaving! A great detail that gives you an even bigger view of the underwater world!

  • Combining the images of two Lowrance Active Target 2 live transducers into one image is possible on Lowrance HDS Pro displays.
  • Both transducers must have their own Lowrance Active Target 2 Black Box.
  • Thanks to the completely new "Ping" synchronization, using two live transducers does not cause interference in the image, whether the transducers are connected to their own displays or to one display.

The Lowrance Active Target 2 transducer is delivered with a mount that you can easily and quickly install on the live transducer mount. The mount has three view settings; forward, down, and scout view. The package also includes a Black Box, power cable, and ethernet cable

Lowrance Active Target 2 additional information:

  • Ultra-precise and real-time views reveal underwater events accurately
  • Extremely clear real-time views of fish and bottom structures
  • Really clear underwater views allow for quick reactions
  • See under and around your boat with forward, down, and Scout views
  • By acquiring a second ActiveTarget 2 live sonar for the system, you can see multiple views simultaneously and enable 180- and Scout Wide views. This way, you can track the lure in front of the boat even more effectively. Only on HDS PRO devices.
  • Compatible with HDS Live, HDS Carbon, and Elite FS devices

Patriot MultiFix Transducer Mount - is a sturdy and easily movable Patriot MultiFix transducer mount designed to be compatible with all different types of sonar transducers. The aluminum mounting plate at the bottom of the transducer mount has pre-made hole patterns for the most commonly used side-imaging and transom transducers. In addition to transom-mounted transducers, various live transducers can also be directly attached to the shaft of the mount. The height and rotation of the Patriot MultiFix transducer mount can be adjusted completely steplessly with the quick lock in the mounting jaw. The upper part of the transducer mount tube also has another steplessly adjustable quick lock and a control handle, which allow the mount to be rotated steplessly 360 degrees when using a live transducer. The handle at the top of the mount is also attached to the tube with a quick lock, so it can be easily removed if the transducer mount does not need to be rotated.

Designed for as many different boats and purposes as possible, the Patriot MultiFix transducer mount has a sturdy metal-framed mounting jaw with a 7-step tilt angle adjustment, and a sufficiently long (115cm) composite shaft, which can also be easily shortened to the appropriate length for your own boat if necessary. No tools are needed to attach the Patriot MultiFix transducer mount to the boat, and it can be installed on the side or transom of any boat with a maximum width of 82mm. With the easily movable Patriot MultiFix transducer mount, the same transducer and fishfinder can be used on different boats. By attaching the Patriot MultiFix transducer mount, for example, to the side of a sled, the same mount can also be used well in winter use.

Patriot MultiFix Transducer Mount additional information:

  • Sturdy, metal mounting jaw
  • Maximum thickness of the mounting point 82mm (e.g., side/transom)
  • 7-step tilt angle adjustment
  • Durable composite shaft
  • Shaft length 115cm
  • Shaft diameter 25mm
  • Stepless height adjustment
  • Stepless rotation adjustment 360 degrees
  • Removable handle at the top
  • Lockable in the desired position
  • Quick adjustment thanks to quick clamps
  • No tools needed for mounting the stand
  • Pre-made hole pattern in the mounting plate for all common transom transducers
  • Live transducer can be mounted directly on the tube
  • Excellent for vertical jigging
  • Excellent for live transducers
  • Also suitable for winter use, for example, when attached to a sled

Product text updated 26.9.2026.
