Garmin Livescope System LVS62 XR - You didn't think it could get better, but it did with the extended range of the LiveScope XR System. It's the latest in LiveScope technology, now for coastal and open-water fishing. The new XR transducer offers live scanning sonar up to 500' in freshwater and up to 350' in saltwater. Adjust the transducer to fit where you fish; use LiveScope Forward mode to see around your boat, LiveScope Down mode to see directly below your boat and Perspective mode for an overhead sonar view that's perfect for scouting open water or shorelines. The views automatically update on your compatible Garmin chartplotter screen. Get extended range to see targets further from the boat, while maintaining sharp detail for those closer targets. Attitude heading reference system stabilization keeps your sonar view steady, even in rough conditions. LiveScope XR includes trolling motor shaft and barrel mounts plus Perspective Mode Mount.
Garmin Livescope System LVS62 XR Main Features:
- Extended Range: Lower frequency sonar extends range to 500 feet (freshwater) viewable forward and down - 300 more feet than existing LiveScope options.
- Image stabilization: Utilization of AHRS image stabilization will ensure that the image stays stabilised even in rougher waters (e.g., saltwater and deep lake applications).
- Image sharpness: The LiveScope "Compress Range" and "Reverse Range" features allow the user to optimize their screen at both short and long range at the same time.
- Easy Upgrade: The new transducer can be used with an existing LiveScope System black box (GLS 10) for an easy upgrade.
- Vivid colour: Compatible with the vivid colour palettes for enhanced detail and clarity.
- Compatibility: New mounting hole pattern for 3rd party mounting systems.
- Perspective mode mount: Use all three modes with the included Perspective Mode Mount
"Garmin LiveScope LVS62 XR helps you detect targets far away, really far away. This lets you move your boat earlier, so it is easier to get into the right casting distance. With earlier models, targets often came up too quickly, and if you wanted to hold position with your bow-mount trolling motor, the distance to the fish became too short. Now that you can spot fish more than 40 m away, you have enough time to move the boat to the right angle or circle around to the fish so that you can cast from the angle you want. At the same time you can scan an even larger area, so you detect big fish more reliably. You also no longer lose sight of a fish easily, and you can keep track of its direction of movement for longer.
The Garmin LiveScope LVS62 XR transducer is nicknamed the Long Range transducer, and its biggest advantage is exactly the range. You can also use the LVS62 XR together with the excellent LVS34/LVS32 transducer and get the best of both by combining their strengths. When the LVS62 XR data is on your display and you are looking more than 40 m ahead, you may not want to adjust the range back and forth, so combining two LiveScope transducers into one setup gives you great advantages."
- Jani Mäkeläinen / Ruoto
You can easily adjust the transducer direction forward, down or to perspective view. All three views are available quickly and easily, because the package includes a perspective mount that makes adjusting the transducer angle easy.
- The forward view is the most important and most popular, because it shows targets far ahead, and thanks to the bow angle you also see just enough behind the transducer to make vertical fishing possible.
- The down view is excellent for vertical fishing, and you can easily see far in front of and behind the boat.
- The perspective view gives you a maximal wide view in shallow water (less than 8 m).
If you already have a GLS 10 black box, you can simply install the new transducer. When you update the black box software, the new LVS62 XR transducer appears in the transducer selection.
Please note that the transducer is compatible with the following displays:
- Garmin Echomap UHD 72sv and 92sv (Echomap Plus is not supported)
- Garmin Echomap Ultra 102sv and 122sv
- GPSMAP 923/923xsv and 1223/1223xsv
- GPSMAP 1022/1022xsv and 1222/1222xsv
- GPSMAP 8410/8410xsv, 8412/8412xsv and 8416/8416xsv
You can turn a chartplotter without the xsv feature (sonar port) into a LiveScope display, because the GLS 10 black box connects to the display's Ethernet port. LiveScope LVS32, LVS34 and LVS62 always require the GLS 10 black box to operate.
Product comparison:
- Transmit power:
LVS32 500 watts
LVS34 500 watts
LVS62 500 watts - Frequencies supported:
LVS32 - 530-1,100kHz
LVS34 - 530-1,100kHz
LVS62 - 282-522kHz - Max depth forward range (freshwater):
LVS32 - 200'
LVS34 - 200'
LVS62 - 500' - Target separation (at 100'(30.5m) range):
LVS32 - 22" (55.9 cm)
LVS34 - 14"(35.6cm)
LVS62 - 22"(55.9cm )
Included:
- Garmin Livescope LVS62 XR included:

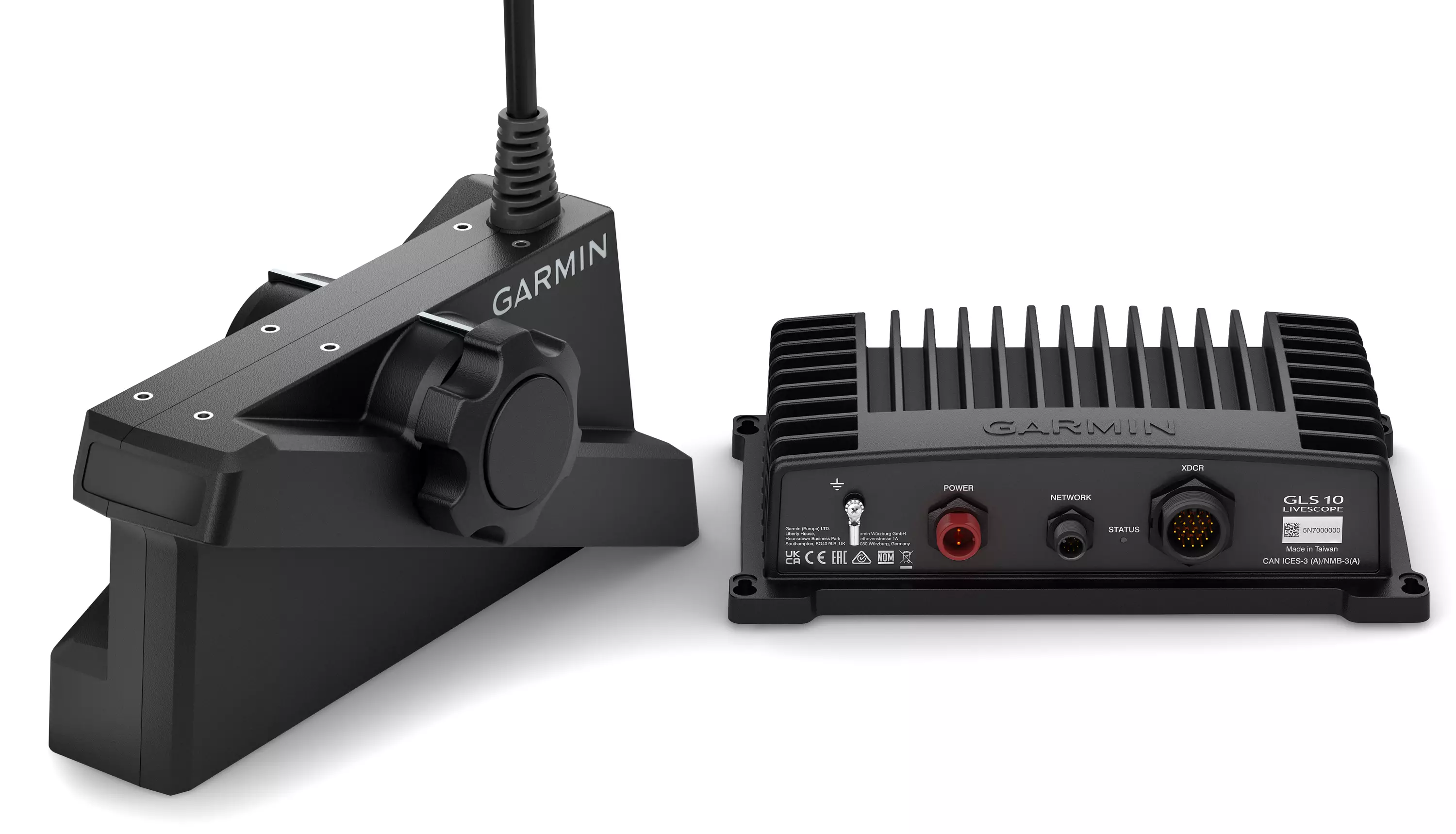

GLS 10, LVS62, trolling motor barrel mount, shaft mount, perspective mount bracket, power cable, network cable, network adapter cable, documentation.
- Garmin Livescope LVS62 XR Transducer included:
LVS62, trolling motor barrel mount, shaft mount, perspective mount bracket, documentation.
Product text updated 26.9.2026.
