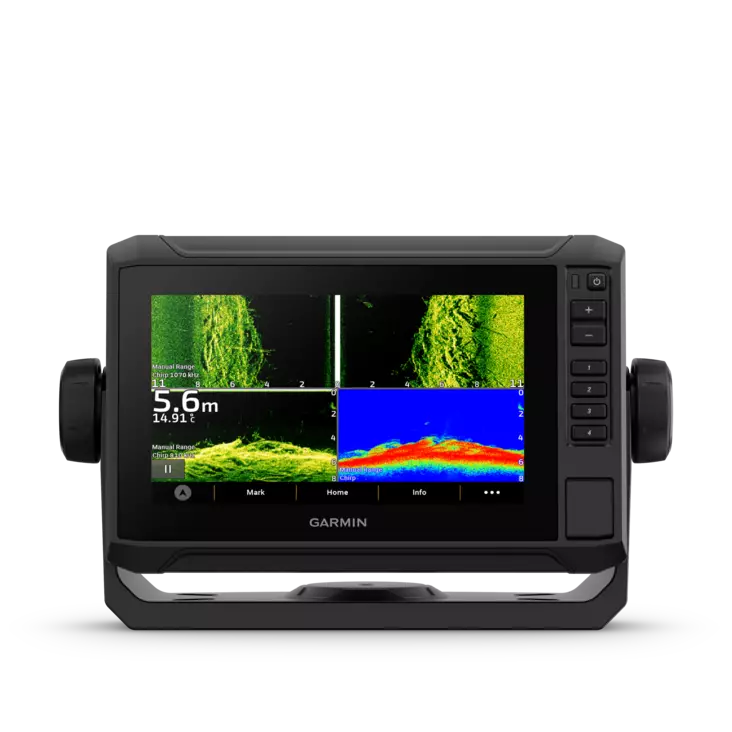

Garmin Echomap UHD2 72sv Touch

Garmin Echomap UHD2 72sv Touch - touchscreen with keyed-assist chartplotter knows the water better than a local. Its bright, sunlight-readable display offers improved detail and clarity. See clear, sharp fish arches with Garmin traditional sonar. ClearVü and SideVü scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat. ECHOMAP UHD2 also supports LiveScope sonar systems. Navigate the waters with optional Garmin Navionics+ cartography, which comes with a 1-year subscription to daily chart updates. Built-in Wi-Fi connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain app on your compatible smartphone for access to the OneChart feature, software updates and more. The chartplotter supports NMEA 2000 networks to connect your compatible autopilots, digital switching, music and more to view all on one screen.

Garmin Echomap UHD2 72sv Touch Main Features:

• Easy-to-use touchscreen with keyed assist with a bright, sunlight-readable display.
• 7" units now feature increased screen resolution (1024 x 600) when compared to previous models.
• See below your boat with Garmin traditional, ClearVü and SideVü scanning sonars with vivid color palettes. Compatible with LiveScope live scanning sonar.
• Built-in Wi-Fi connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter.
• Redesigned display dock (the same quick-release dock as in the Echomap Ultra series) lets the display snap into place easily and release from the dock quickly and effortlessly.
• Experience unparalleled coverage and detail with optional Garmin Navionics+ integrated mapping or optional Garmin Navionics Vision premium mapping with relief shading, satellite imagery, Auto Guidance+ and more. They even come with a 1-year subscription for downloadable daily updates.
• Includes multi-band GPS, which utilizes multiple frequencies for improved position accuracy, particularly in areas where signals are reflected or weak.
• Supports wired NMEA 2000 network connectivity.
• Pair with the free all-in-one ActiveCaptain app on your compatible smartphone for access to the OneChart feature, software updates and more.
• Wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.

• Garmin Echomap UHD2 7" display
• Available without transducer or with GT54 transducer
• Package includes power cable, tilt mount and quick-release mount, screws and user manuals

• Device dimensions (W x H x D): 26.4 x 16.6 x 8.0 cm
• Display size (W x H, diagonal): 19.8 x 11.5 cm, 22.9 cm
• Display resolution: 1024 x 600 px
• Water rating: IPX7

• Internal GPS receiver: Yes
• Internal receiver update rate: 10 Hz

• Garmin Navionics+: Yes
  Note! BlueChart g3 and BlueChart g3 Vision do not work with this device
• Auto Guidance+: Yes, with supported charts

• Memory card slot: Yes, 1 microSD card; maximum size 32 GB
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Routes: 100

• Sailing features: Yes
• Built-in sonar: Yes
• Traditional sonar: Yes
• Sonar frequencies: Traditional: single-channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP; Garmin ClearVü and SideVü: 260/455/800 kHz
• Transducer port pin count: 12-pin
• Wi-Fi connectivity (local): Yes

Product text updated 26.9.2026.
