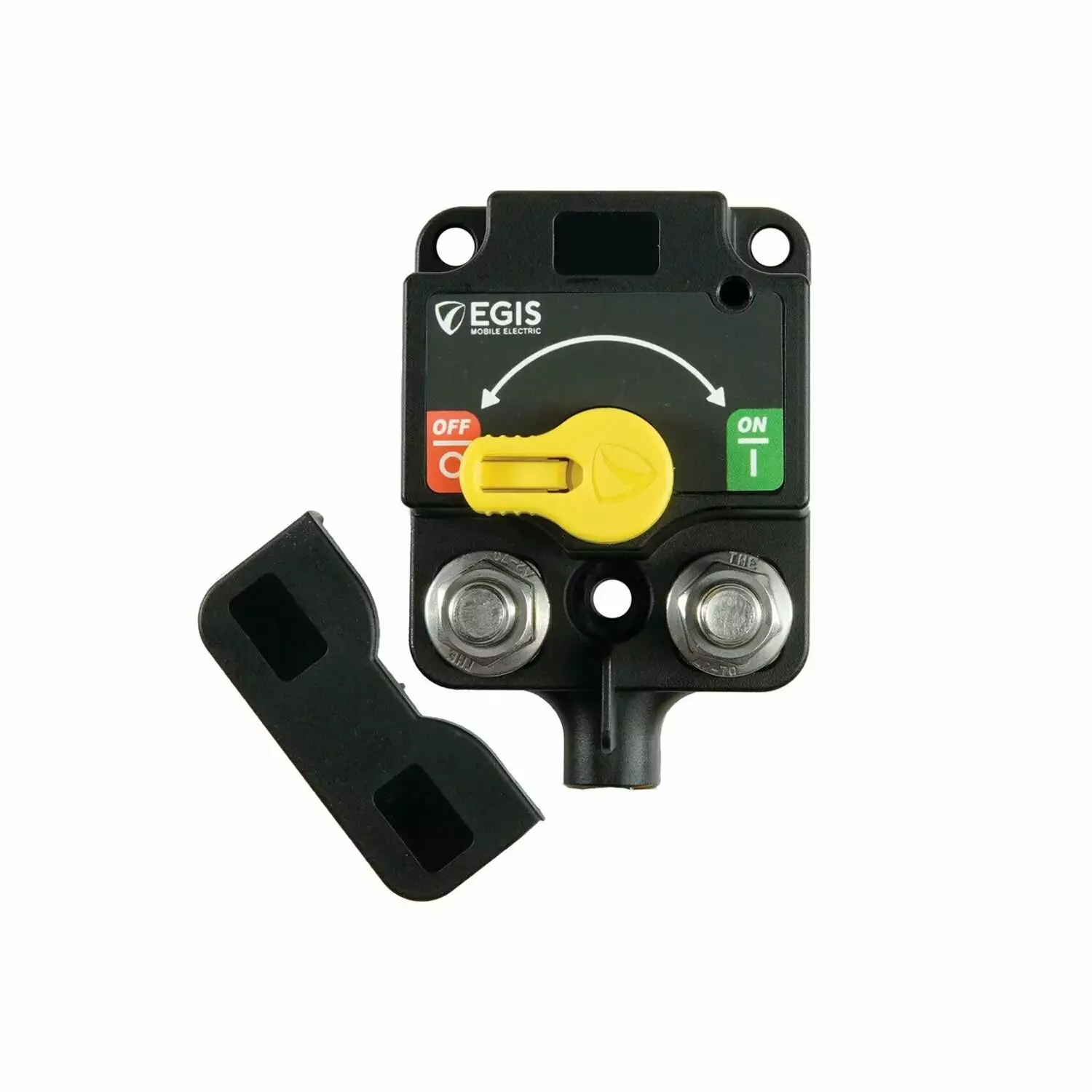

EGIS main switch 500A

Egis main switch 500A is designed to withstand demanding conditions and high currents. It supports a continuous load of 500A, a temporary load of 700A (5 minutes), and a maximum load of 1600A (30 seconds). The switch operates within a voltage range of 8-36 V and has a working temperature range of -40°C to 125°C.

The switch is SAE J1171 certified, meaning it meets the external ignition protection requirements for marine electrical devices. Additionally, it has an IP67/IP6K9K rating, making it dustproof and waterproof.

Egis main switch 500A - Features:

• Voltage range: 8 - 36 V
• 500A continuous load
• 700A temporary load (5 minutes)
• 1600A maximum load (30 seconds)
• Working temperature: -40°C - 125°C
• SAE J1171 certified fire resistance
• IP67/IP6K9K dustproof and waterproof
• M10 connection
• Insulated back panel

The dimensions of the switch are 80 x 66 x 50 mm, making it compact and easy to install.
