Catchy Battery Tray Small

Catchy Battery Tray - is a sturdy, compact and practical mounting method for all types of batteries. The fastening strap can be installed both ways, and thanks to the quick release buckle, the battery is easy to remove.

• Outer dimensions : 350x190x55mm
• The battery tray can accommodate a battery whose bottom dimensions are max. 270x175mm
• The product is manufactured in Finland.

• Catchy Battery Tray (small) is compatible with the following batteries:
  Jarocells 12V 50Ah
  Ultimatron 12V 54Ah
  TopBand 12V 50Ah - 75Ah
  Rebelcell 12V 35-140Ah
  Rebelcell 24V 50Ah-70Ah
  Relion 12V 52Ah - 75Ah

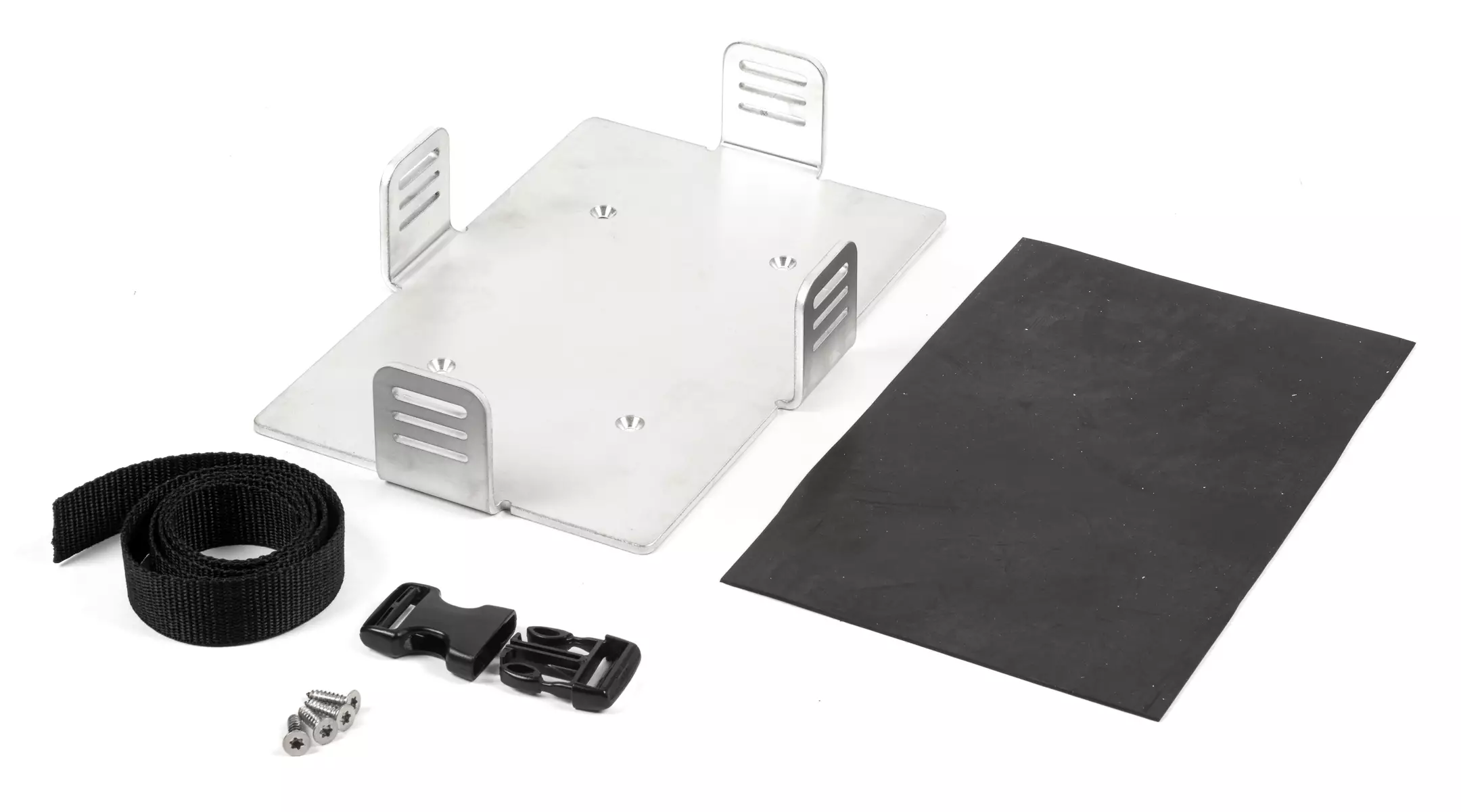

Package contents:

• Battery tray (4mm marine aluminum)
• Rubber mat
• 4x mounting screws (A4, 4.8x19mm, Torx 25)
• 25mm fastening strap (100cm)
• A quick release buckle that can be tightened from both directions.

Installation instructions:

• Mark and drill pilot holes for the mounting screws: 4.0 mm for aluminum and 3.5 mm for plywood or fiberglass.
• Install the fastening strap
• Cut the strap across at the point of your choice. Burn the cut end of the strap and attach the quick release buckle.
• Fasten the screws, put the rubber mat and the battery in place. Adjust and tighten the belt.
