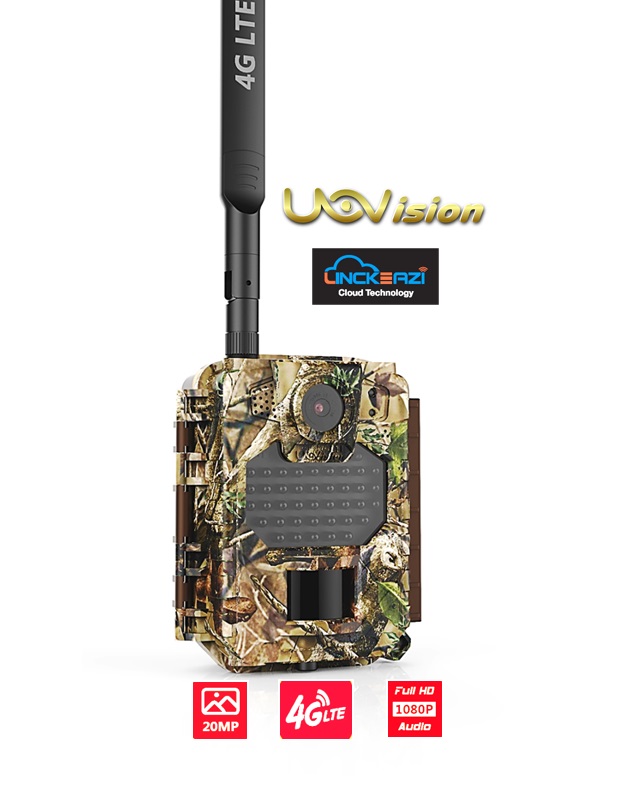

Uovision Compact 4G LTE transmitting trail camera - 2020 New!

As the name suggests, the Uovision Compact 4G LTE is a small-sized mini camera (12 cm x 10 cm x 7 cm), making it easy to protect and hide in its target location. The Compact 4G LTE can be remotely controlled via the LinckEazi Cloud service, which also allows you to manage multiple cameras at once. This trail camera is therefore particularly well suited for all kinds of surveillance tasks, for example, in your company's yard or at the cottage.

The camera's operation is based on a passive PIR motion detector, which detects thermal radiation from up to 18 meters away.

Key features of the Uovision Compact 4G LTE transmitting trail camera:

• 20 Megapixel resolution
• 4G
• Full HD images and videos with sound
• Trigger response 0.4 seconds
• Motion detection range up to 18 meters
• Recording on microSD card (not included in the package)
• Dimensions 12 cm x 10 cm x 7 cm


Available separately Uovision Compact 4G LTE trail camera accessories:

• External power supply (for indoor use only)
• Batteries; 7.5 Ah & 12 Ah
• Battery cable for external power supply
• Battery cable for external power supply with voltage reducer
• Battery charger

Technical specifications of the Uovision Compact 4G LTE trail camera

Media quality

• Shooting modes: photo & video
• Photo: 20MP / 16MP / 12MP / 8MP / 5MP / 3MP
• Video: FullHD 1080P, HD 720P, WVGA
• Video sound: Yes
• Video length: 5 ? 60s
• Timelapse shooting: 3min-24h
• Shooting timestamp: date, time, temperature, battery charge
• Photo burst: 1 ? 10 photos

Media management

• Remote controllable and transmitting trail camera supporting LinckEazi cloud service
• Ultra-fast image or video transmission with LTE (4G) connection (supports 3G / 2G network)
• LTE 4G frequencies: FDD-LTE B1/B3/B5/B7/B8/B20;TDD-LTE:B38/B40/B41;WCDMA: B1/B5/B8; GSM: 900/1800
• Quickly sends high-quality image material from the target
• SSL secured connection for sending images and videos to LinckEazi cloud service
• Sends a copy of the image to your own email if needed via LinckEazi cloud
• Free versatile remote control commands for changing settings via mobile app or computer browser

Motion detector & lens

• Fast PIR motion detector trigger response: 0.4s
• Adjustable PIR motion detector sensitivity
• PIR motion detector: Multi Zone PIR up to 18 m
• PIR delay: 5s ? 60 min.
• Diagonal lens angle: 64°
• FOV10m (Field of View 10m): 7.72 meters
• Lens aperture: F1.85
• Invisible infrared flash for night photography
• Flash LED sensor: 40 power LEDs
• Flash range: 15 m

Setup

• Easy to set up and start sending
• Programmable work schedule for 4 different settings
• Micro SD memory card support: 4GB ? 32GB (not included)
• Nano SIM (not included)
• Tripod mounting screw location at the bottom of the camera
• Password protection
• Network location information (accuracy depends on the density of the operator's masts)
• Lockable: lock attachment rings in the case
•  Operating temperature -20°C ? +50°C
•  Weather-resistant structure: IP66 rating (no immersion in liquid)
•  Operating humidity: 5% ? 90%
•  Compatible with Windows (98, 2000, XP, Vista, Win7, Win8, Win10)

Appearance and power supply

• Camo pattern
• Black 17 cm long flat LTE (4G) antenna
• Weight: 287 g (without batteries)
• Batteries: 8 pcs 1.5V AA (not included)
• Outputs: USB, 6V DC, Micro SD memory card slot, Nano SIM card slot
• Dimensions: 12 x 10 x 7cm

Package contents

• Trail camera
• Mounting strap
• Manual
• 4G antenna

NOTE! Batteries or memory card are not included in the package.

LinckEazi cloud service for Compact 4G LTE trail camera

Remote control of the Compact 4G LTE is possible for free via the cloud service either through your own mobile app (LinckEazi APP, Android/iOS) or computer browser. Through the service, you can remotely control one or more trail cameras, and you can store images in your own camera-specific albums.

Thanks to its remote controllability, you can also request the trail camera to take a photo or video directly on command. Remote control is convenient and does not cost the price of text messages like many other remotely controlled cameras. You can also check the camera's battery charge or memory card status remotely.

Cloud service language: Finnish, Swedish, Norwegian, German, or English

You can download the user manual for the Uovision Compact 4G LTE trail camera here.
