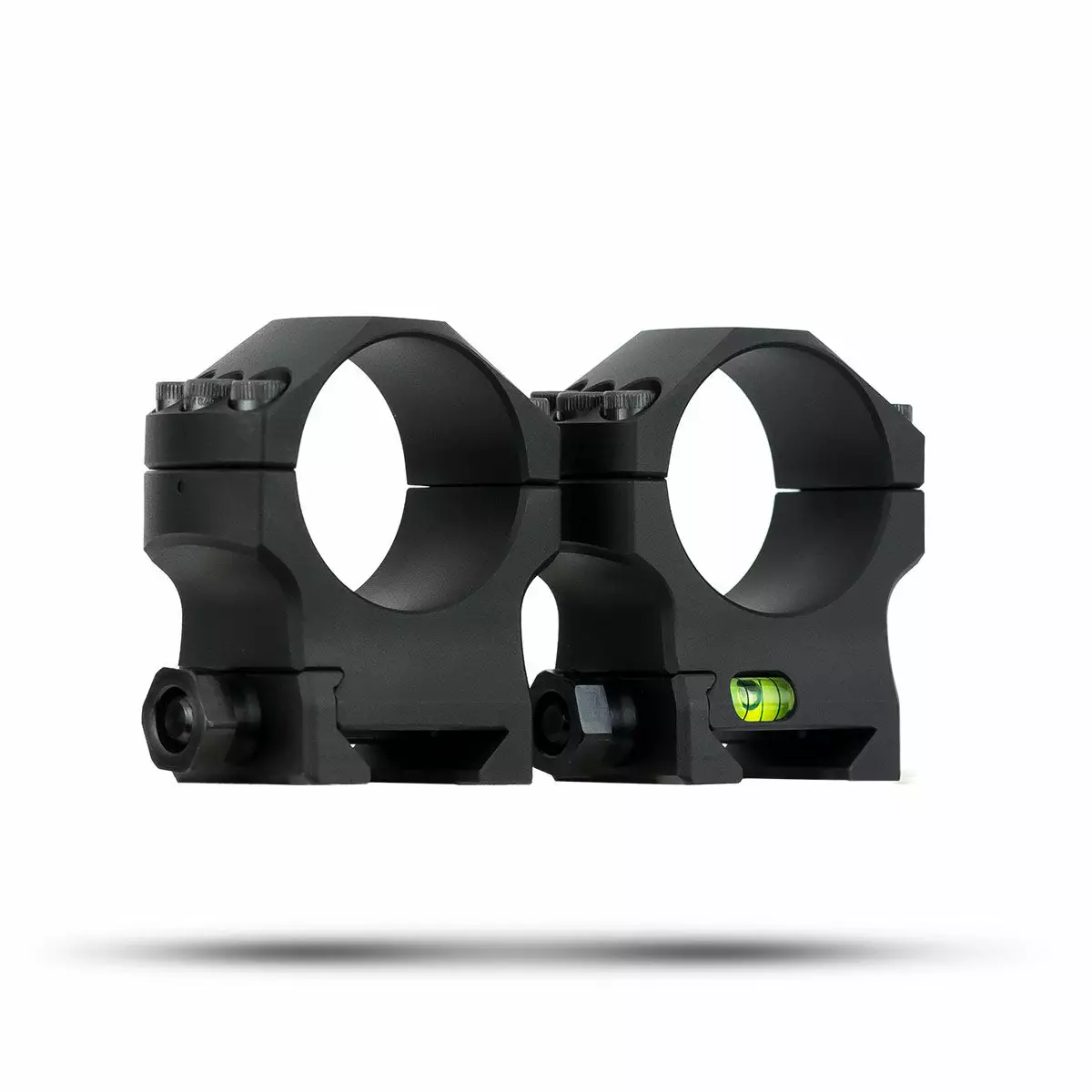

MDT Elite Scope Rings 34mm

MDT Elite Scope Rings 34mm offer an extremely sturdy and lightweight mounting solution for optics. They are made from precision-machined aluminum and designed for maximum strength, alignment accuracy, and repeatability.

MDT Elite Scope Rings - Technical Specifications:

• Tube size: 34 mm
• Material: 7075-T651 aluminum (billet)
• Standard: STANAG 4694 (also compatible with MIL-STD-1913)
• Contact surface to tube: 25 mm
• Contact surface to rail: 30 mm
• Mounting: 6 pcs #8-32 Grade 8 screws / ring
• Available heights: Low, Medium, High, Extra High
• Integrated level: in Medium, High, and Extra High models

The rings are machined from a single piece using a 7-axis CNC machine, and the body and rail mount machining is done in the same step. This ensures that all rings are perfectly straight and parallel.

The wide contact surface to both the tube and the rail increases mounting stability. The thick mounting structure prevents bending and loosening even under heavy use.

Top-level precision

The rings are measured with a CMM device to extremely tight tolerances (1.5 millionths of an inch), ensuring excellent alignment and repeatability.

STANAG mounting

The STANAG 4694 standard mounting clamps the rail also against the top surface, increasing the contact area and improving durability compared to traditional MIL-STD-1913 Picatinny mounting.

Practical design

The stepped body design allows tightening the screws on one side before final alignment. The design is finished with smooth lines that match most rifle scopes.

MDT Elite Scope Rings are designed for the demanding shooter who desires maximum precision, durability, and secure mounting in all situations.
