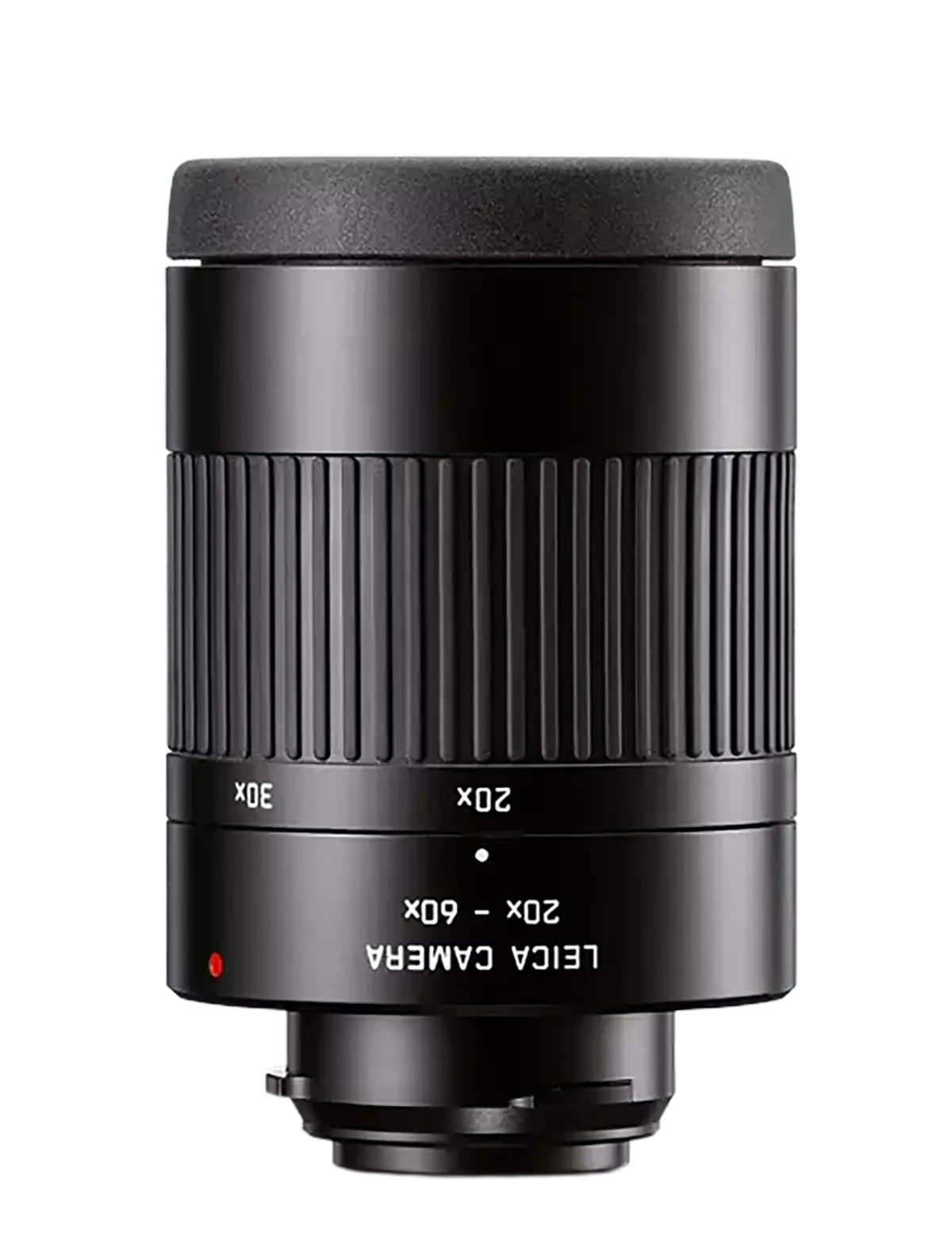

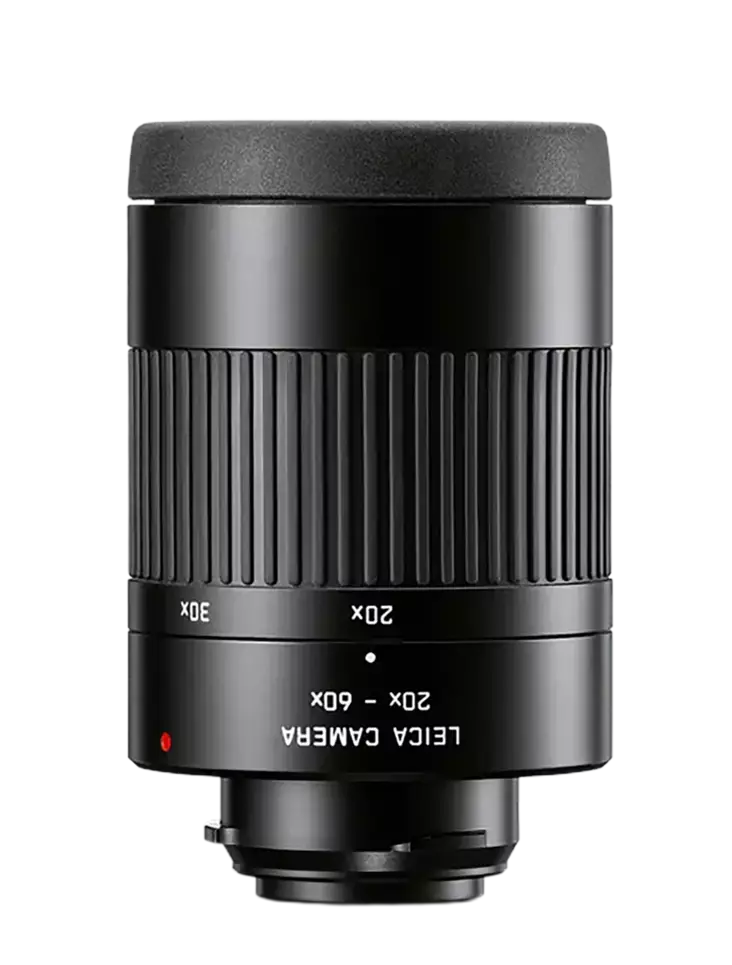

Leica Vario-Okular 20x - 60x

Leica Vario-Okular 20x - 60x is a variable magnification eyepiece designed for Leica Televid spotting scopes, offering a wide magnification range of 20x–60x, bright image quality, and durable construction. It allows quick adaptation to different viewing distances and provides a wide field of view across the entire magnification range. The bayonet mount with automatic locking ensures quick and secure installation, and the nitrogen filling and waterproof design guarantee functionality in varying conditions.

The eyepiece optics are built with precision-ground lenses and multi-layer coatings, delivering high contrast, excellent color reproduction, and edge-to-edge sharpness even at high magnifications. The large exit pupil and comfortable eye relief make viewing effortless even for extended periods, including for eyeglass wearers. Rubberized controls and twistable eyecups enhance usability.

Structurally, the eyepiece is waterproof up to 4 meters (13.1 ft) and nitrogen-filled to prevent fogging. Rubberized controls facilitate use even with gloves. The bayonet mount with integrated automatic locking ensures quick and secure attachment to Leica APO-Televid and Televid HD spotting scopes. A bayonet cover and eyepiece cover are included.

Leica Vario-Okular 20x - 60x – Features:

• Compatibility: all Leica APO-Televid and Televid HD spotting scopes
• Magnification: 20x–60x
• Field of view at 1000 m distance: 35 m (20x) – 20 m (60x); 105 ft (20x) – 60 ft (60x)
• Subjective angle of view: 37° (20x) – 65° (60x)
• Exit pupil Televid 65: 3.25 mm (20x) – 1.1 mm (60x)
• Exit pupil Televid 82: 4.0 mm (20x) – 1.4 mm (60x)
• Closest focusing distance Televid 65: 2.9 m
• Closest focusing distance Televid 82: 3.9 m
• Eyecup: twist-and-pull, suitable for eyeglass wearers
• Mount: bayonet, integrated automatic locking
• Waterproof: 4 m (13.1 ft)
• Filling: nitrogen-filled to prevent fogging
• Outer diameter: 57 mm (2.2 in)
• Total length: 90 mm; 75 mm without bayonet (3.5 in; 3.0 in without bayonet)
• Weight: 370 g (13.1 oz)
• Package contents: bayonet cover and eyepiece cover

Summary: the eyepiece offers a wide magnification range, high optical performance, and a rugged, protected design. It is designed to provide consistent brightness and a wide field of view across the entire magnification range and to perform reliably during extended viewing sessions.

Recommended use: suitable for general use with Leica Televid spotting scopes when variable magnification and a comfortable viewing experience are required.
