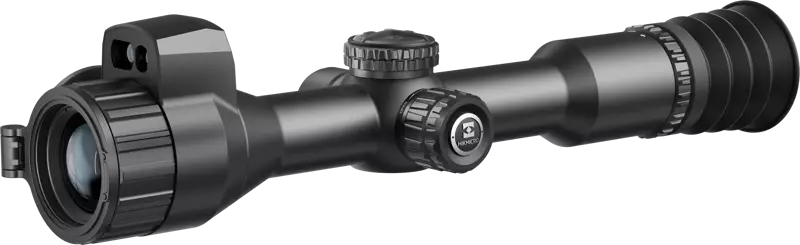

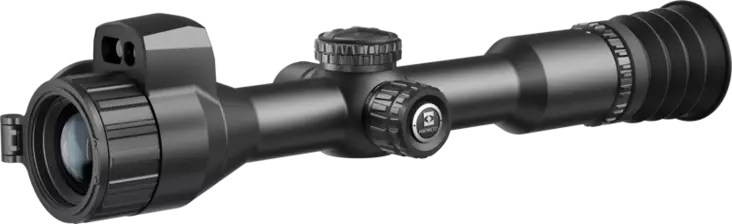

HIKMICRO NEOS NH35L

HIKMICRO NEOS NH35L is a thermal scope from the NEOS series, designed for longer detection distances. Its key strengths include a 384 × 288 pixel thermal sensor, thermal sensitivity below 18 mK, a fast 35 mm F1.0 lens, a detection range of up to 1800 metres, a 1000-metre laser rangefinder, and integrated ballistic calculation.

The 384 × 288 pixel VOx sensor with a 12 µm pixel pitch produces more image information than the smaller sensors in the NEOS series. The higher sensor resolution helps preserve the animal's shape and thermal image details, especially at longer distances and when using digital magnification. NETD below 18 mK supports the differentiation of small temperature differences even in challenging weather conditions.

The 35 mm F1.0 lens increases the stated detection range to up to 1800 metres. Base magnification is 3.2×, and the magnification range extends to 25.6×. The field of view is 7.6 × 5.7 degrees, or approximately 13.1 × 10.0 metres at 100 metres, so the NH35L retains a practical field of view despite its longer-range optics.

The NH35L is a natural choice especially for open terrain, fields, clear-cuts, and other environments where thermal targets are regularly detected at longer distances. The larger sensor and 35 mm lens provide more detail for closer target inspection without making the device exceptionally heavy.

The built-in 1000-metre laser rangefinder measures distances from 10 to 1000 metres with ±1 metre accuracy. Distance data is displayed directly in the scope, reducing the uncertainty associated with visual distance estimation in the dark.

The laser rangefinder is complemented by integrated ballistic calculation. Once the required ballistic data has been entered into the system, the measured distance can be used to calculate ballistic correction. This gives the user a thermal image, distance measurement, and ballistic information in one integrated system.

HIKMICRO's Image Pro 3.0, Zoom Pro, Sync Pro, and HSIS Shutterless Image System support image quality throughout the entire imaging chain. Image Pro 3.0 improves contrast and detail visibility, Zoom Pro supports the image when magnifying, Sync Pro reduces system latency, and HSIS helps keep the thermal image uninterrupted without the interruptions caused by traditional shutter calibration.

The image is displayed on a 0.49-inch 1920 × 1080 pixel AMOLED display. The long 55 mm eye relief, -4...+4 dioptre adjustment, and multiple image adjustment options help tailor the view to the user and conditions.

The NH35L includes 64 GB of internal memory for video, photos, and audio. Recoil-activated recording helps document situations automatically, while Picture-in-Picture allows a magnified detail to be monitored while the surrounding field of view remains visible.

The power system combines an internal rechargeable battery and a replaceable 18650 battery. The manufacturer states a battery life of up to 8 hours. Replacing the spare battery allows continued use during a longer hunting day without a lengthy charging break.

The NH35L weighs approximately 570 grams and retains the standard 30 mm main tube of the NEOS series. IP67 protection, an operating temperature range of -30...+55 °C, and recoil resistance of up to 1000 g / 0.4 ms make it suitable for varied and demanding hunting conditions.

HIKMICRO NEOS NH35L - key features

• Thermal sensor: uncooled VOx, 384 × 288 px
• Pixel pitch: 12 µm
• NETD: <18 mK @ 25 °C, F1.0
• Frame rate: 50 Hz
• Lens: 35 mm F1.0
• Detection range: up to 1800 m
• Minimum focusing distance: 3 m
• Magnification: 3.2?25.6×
• Field of view: 7.6° × 5.7° / 13.1 × 10.0 m @ 100 m
• Laser rangefinder: 10?1000 m
• LRF accuracy: ±1 m
• Ballistic calculation: yes
• Display: 0.49" AMOLED, 1920 × 1080 px
• Eye relief: 55 mm
• Internal memory: 64 GB
• Main tube: 30 mm
• Protection rating: IP67
• Operating temperature: -30...+55 °C
• Battery life: up to 8 h
• Weight: 570 g
• Dimensions: 345.6 × 86.1 × 75.8 mm

Other features

• Image processing: Image Pro 3.0, Zoom Pro, Sync Pro, and HSIS Shutterless Image System
• Image adjustments: brightness and contrast adjustment, as well as Cold and Warm tones
• Thermal imaging modes: six colour palettes
• Recording: video, photo, and audio recording, as well as recoil-activated recording
• Display functions: Picture-in-Picture and local album
• Zeroing: Freeze Zeroing and five zeroing profiles
• Connectivity: Wi-Fi hotspot and HIKMICRO Sight app support
• Power system: internal rechargeable battery and replaceable 18650 battery
• Charging: USB Type-C and QC3.0 fast charging
• Laser: Class 1 laser, wavelength 905 nm
• Click value: 1 cm / 100 m
• Recoil resistance: up to 1000 g / 0.4 ms
• Start-up time: approximately 1 second

Package contents

• HIKMICRO NEOS NH35L thermal scope
• Replaceable rechargeable battery
• Battery charger
• USB Type-C cable
• Lint-free cleaning cloth
• Quick start guide

Recommended use: The HIKMICRO NEOS NH35L is particularly suitable for users who need more image detail and a longer detection range from a thermal scope than the 25 mm NEOS models provide. It addresses the need in open terrain to find and inspect thermal targets from greater distances, while the 1000-metre laser rangefinder reduces the uncertainty involved in estimating distance in the dark. The 384 × 288 sensor, 35 mm lens, and ballistic calculation make the NH35L especially suitable when longer-range performance is one of the most important selection criteria.
