- Product Code: 6970883553631
- EAN: 6970883553631

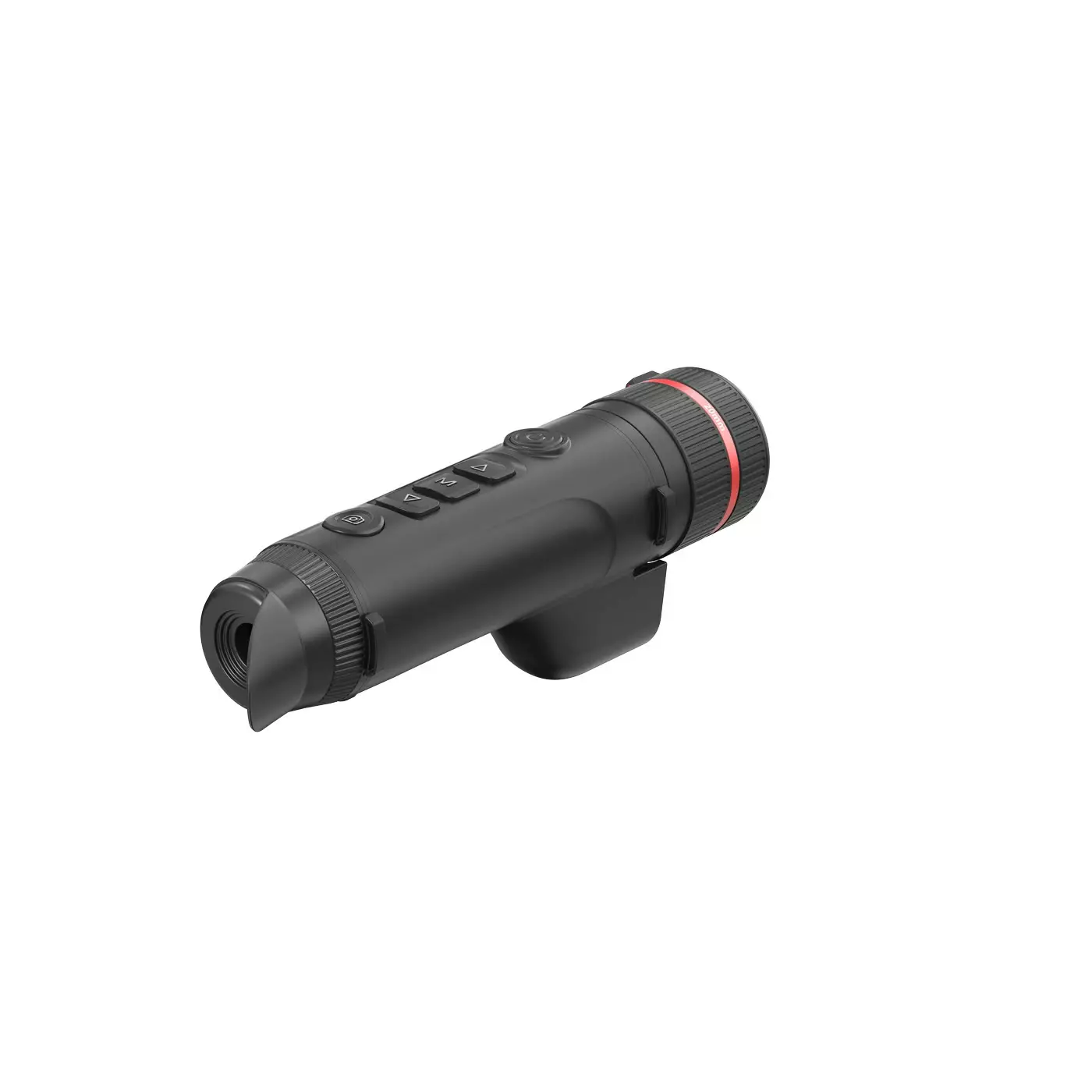

Guide Outdoor TJ Monocular TJ660LZS Thermal Monocular with Rangefinder is a Guide Outdoor TJ LRF Zoom series thermal monocular with dual-FOV lens and laser rangefinder for hunting, wildlife observation, nature observation and demanding field use. It combines model-specific optics, a field-ready construction and practical functions for situations where a clear image and reliable operation are important.
The technical package is built around a 640 x 512 @12 µm sensor, 20-60 mm dual FOV optics and a 1920 x 1080 AMOLED. Thermal sensitivity is NETD 15 mK, supporting recognition of small temperature differences. Specified detection range is 20 mm: 1000 m / 1090 yd; 60 mm: 3100 m / 3350 yd.
Practical use is supported by photo and video, audio recording, 2.4 GHz and 5 GHz and USB-C (power supply and USB 2.0). Protection rating is IP67. Power solution: up to 10 h. Laser rangefinder: 1000 m laser rangefinder.
Guide Outdoor TJ Monocular TJ660LZS Thermal Monocular with Rangefinder - Key features:
- Series: TJ LRF Zoom
- Type: thermal monocular with dual-FOV lens and laser rangefinder
- System: ApexVision S1: ApexCore S1 + Nexus 1.0 + Hyper-Light 2.0
- Sensor type: uncooled VOx, 8-14 µm
- Sensor: 640 x 512 @12 µm
- Thermal sensitivity: NETD 15 mK
- Frame rate: 50 Hz
- Objective: 20-60 mm dual FOV
- Field of view: 20 mm: 21.7° x 16.4°; 60 mm: 7.3° x 5.5°
- FOV @100 m: 20 mm: 38 x 29 m; 60 mm: 13 x 10 m @ 100 m
- Magnification: 20 mm: 1.2x-9.6x; 60 mm: 3.5x-28x
- Detection range: 20 mm: 1000 m / 1090 yd; 60 mm: 3100 m / 3350 yd
- Focus: manual focus and focal length switching
- Display: 1920 x 1080 AMOLED
- Palettes / image modes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Eyepiece: eye relief 20 mm, diopter -6...+6
- Laser rangefinder: 1000 m laser rangefinder
- Wi-Fi: 2.4 GHz and 5 GHz
- Interface: USB-C (power supply and USB 2.0)
- Additional functions: microphone, compass, gyroscope and Bluetooth
- Recording: photo and video, audio recording
- Memory: 128 GB
- Battery: 2 replaceable 18650 batteries
- Operating time: up to 10 h
- Protection: IP67
- Operating temperature: -20 °C... +50 °C
- Weight: 764 g
- Dimensions: 259 x 97 x 69 mm
Summary: Guide Outdoor TJ Monocular TJ660LZS Thermal Monocular with Rangefinder is a versatile Guide Outdoor product for users who need reliable observation capability, a clear image and a construction suited for field use. The broad feature set, model-specific optics and practical recording and connectivity functions make it a useful choice for hunting and nature observation.
Recommended use: Suitable for hunting, wildlife observation, nature observation and other field use where thermal imaging, digital vision or range measurement provides practical support.
