- Product Code: 6970883554515
- EAN: 6970883554515

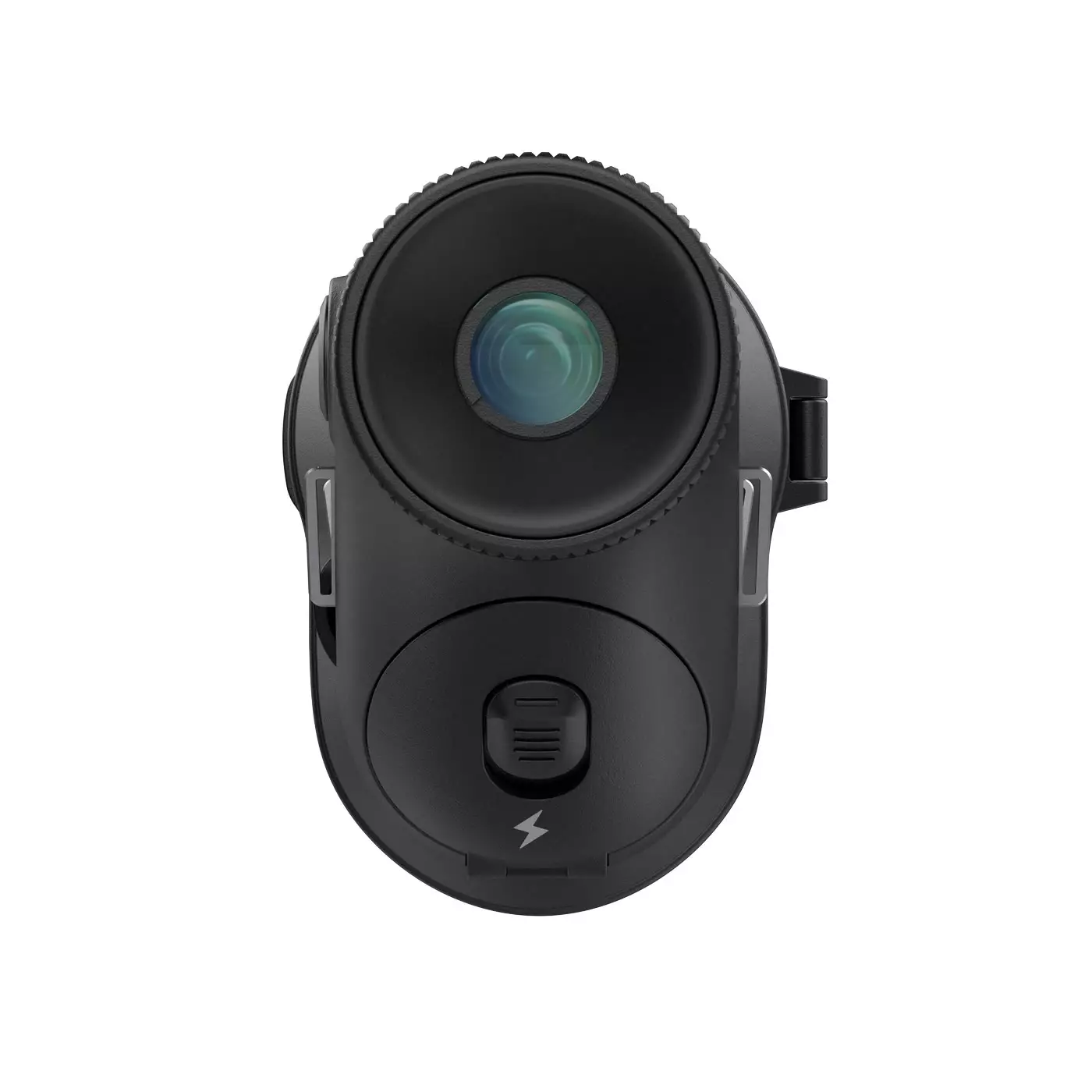

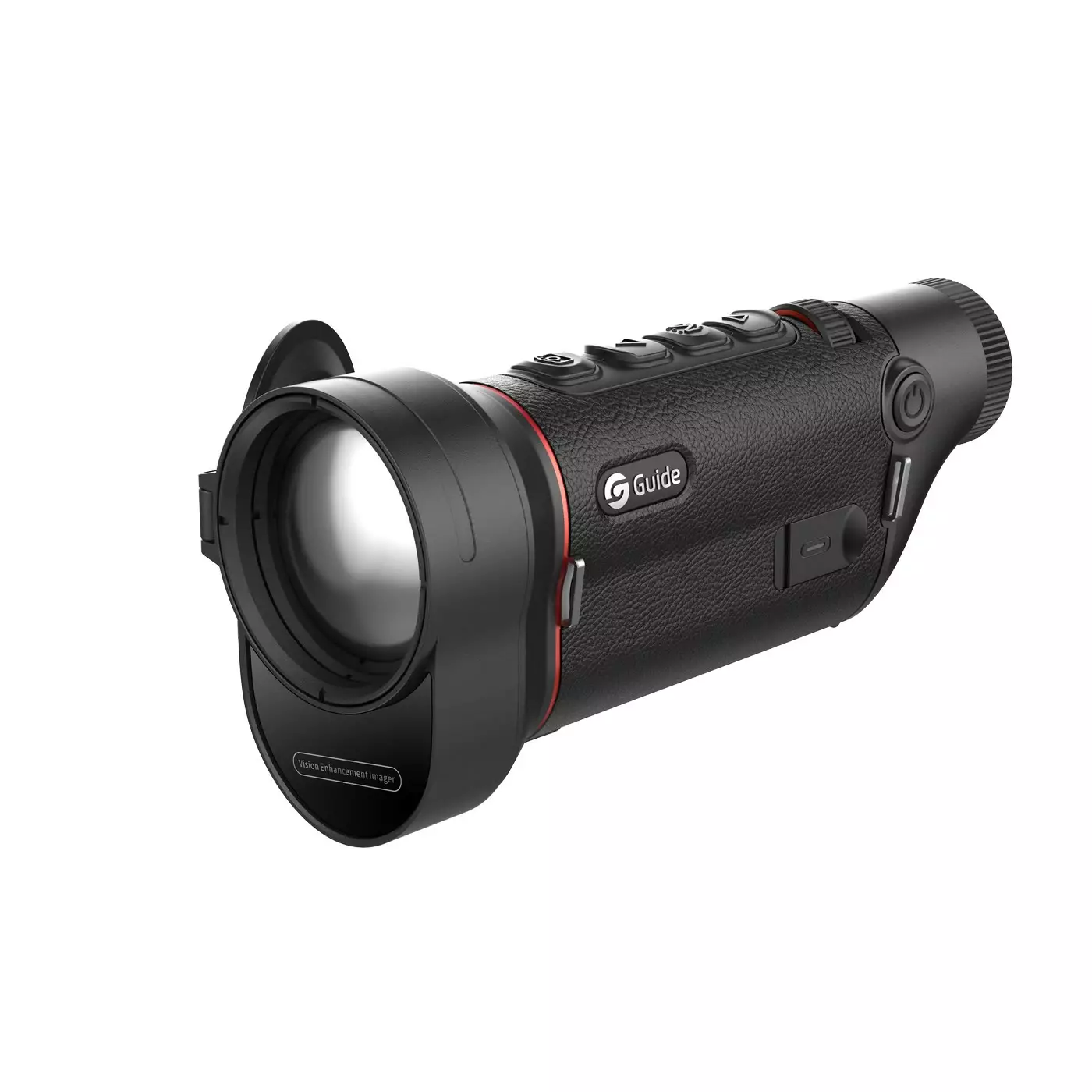

Guide Outdoor TD Gen3 Monocular TD650S Thermal Camera is a Guide Outdoor TD Gen3 series thermal monocular for hunting, wildlife observation, nature observation and demanding field use. It combines model-specific optics, a field-ready construction and practical functions for situations where a clear image and reliable operation are important.
The technical package is built around a 640 x 512 @12 µm sensor, 50 mm F1.0 optics and a 0.49" 1440 x 1080 AMOLED display. Thermal sensitivity is NETD 15 mK, supporting recognition of small temperature differences.
Practical use is supported by photo and video, audio recording, 2.4 GHz and 5 GHz and USB-C. Protection rating is IP67. Operating time: up to 10 h.
Guide Outdoor TD Gen3 Monocular TD650S Thermal Camera - Key features:
- Series: TD Gen3
- Type: thermal monocular
- System: ApexVision S1 system architecture
- Sensor type: uncooled VOx, 8-14 µm
- Sensor: 640 x 512 @12 µm
- Thermal sensitivity: NETD 15 mK
- Frame rate: 50 Hz
- Objective: 50 mm F1.0
- Field of view: 8.8° x 6.6°
- FOV @100 m: 15 x 12 m @ 100 m
- Magnification: 2.91x-23.28x
- Focus: manual focus, one-hand focusing roller
- Display: 0.49" 1440 x 1080 AMOLED
- Palettes / image modes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Wi-Fi: 2.4 GHz and 5 GHz
- Interface: USB-C
- Recording: photo and video, audio recording
- Memory: 64 GB
- Battery: replaceable 18650 battery
- Operating time: up to 10 h
- Protection: IP67
- Operating temperature: -20 °C... +50 °C
- Weight: 461 g
- Dimensions: 189.5 x 67.5 x 88 mm
Summary: Guide Outdoor TD Gen3 Monocular TD650S Thermal Camera is a versatile Guide Outdoor product for users who need reliable observation capability, a clear image and a construction suited for field use. The broad feature set, model-specific optics and practical recording and connectivity functions make it a useful choice for hunting and nature observation.
Recommended use: Suitable for hunting, wildlife observation, nature observation and other field use where thermal imaging, digital vision or range measurement provides practical support.
Product text updated 18.10.2026.
