- Product Code: O435CS
- EAN: 6970883553815
- Warranty: 3 years

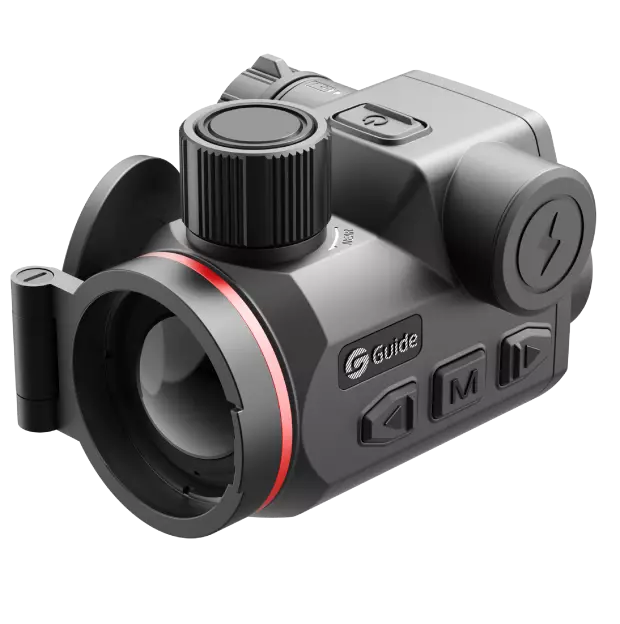

Guide Outdoor Orion C Clip On O435CS Clip-on Thermal Sight is a lightweight and compact clip-on thermal device, ideal for those who want the benefits of thermal imaging without the need to replace the entire sighting system. The size and weight of the Orion C are optimized to ensure the setup remains balanced and comfortable to use even during long hunting and observation sessions.
The Orion C utilizes Guide Outdoor's next-generation ApexVision solution, built on the ApexVision S1 architecture (ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 2.0 algorithm). The goal is to deliver sharp thermal images, smooth motion without "ghosting" effects, and detailed resolution even at longer distances, ensuring reliable target identification in varying conditions.
The O435CS model features a 400 x 300 @ 12 µm uncooled VOx sensor with an extremely low NETD of 15 mK, which helps detect even small temperature differences, for example, in humid weather and cluttered backgrounds. The bright 35 mm F0.9 lens supports detail resolution and provides a stated detection range of 1800 m.
The device is ready for use quickly: startup in about 3 seconds is helpful when situations arise unexpectedly, and observation needs to begin immediately. The focus is manual, and the focus knob is designed to provide a clear mechanical feel even when wearing gloves. The simplified button layout supports smooth operation in the dark and under pressure.
In terms of durability, the Orion C is designed for hunting use. It withstands recoil up to 6000 J and is IP67-rated, meaning the device operates in rain, fog, and dusty conditions. Power consumption is optimized for extended use, and the replaceable 18500 battery offers long operating times, allowing two batteries to easily cover a long night session.
Guide Outdoor Orion C Clip On O435CS Clip-on Thermal Sight - Key Features:
- Usage: clip-on thermal imaging attachment
- Model: O435CS
- System: ApexVision S1 (ApexCore S1 + Nexus 1.0 + Hyper-Light 2.0)
- Sensor: uncooled VOx, 8-14 µm
- Resolution: 400 x 300 @ 12 µm
- Thermal Sensitivity: NETD 15 mK
- Refresh Rate: 50 Hz
- Optics: 35 mm, F0.9
- Magnification: 1x
- Field of View: 7.9° x 5.9°
- Field of View @100 m: 13 x 10 m
- Detection Range: 1800 m / 1950 yd
- Focus: manual
- Display: 0.39" AMOLED 1024 x 768
- Eye Relief: 20 mm
- Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- AI Algorithm: Hyper-Light 2.0 (contrast, brightness, details, target highlighting, tone balance)
- Startup: about 3 s
- Power Supply: USB-C (power source)
- Battery: replaceable 18500
- Operating Time: up to 8 h
- Operating Temperature: -20 °C ... +50 °C (-4 °F ... +122 °F)
- Recoil Resistance: 6000 J
- Protection: IP67
- Weight: 285 g (10.05 oz)
- Dimensions: 99 x 73 x 68 mm (3.90 x 2.87 x 2.67 in)
- Package Contents: device, carrying case, accessory pouch, lint-free cloth, battery charger, 2x 18500 batteries, USB-A -> USB-C cable, quick guide, warranty
- Accessories: adapter ring, 18500 battery
Summary: The Orion C O435CS is an extremely lightweight and compact clip-on thermal device that combines a 12 µm sensor, NETD 15 mK sensitivity, bright 35 mm F0.9 optics, and an AMOLED display. Fast startup, long operating time, and 6000 J recoil resistance make it a functional choice for demanding hunting and field use.
Recommended Use: For hunting and surveillance, when you want a thermal imaging attachment that keeps the setup lightweight and balanced and operates reliably even in rain and cold conditions.
