BoreTech Patch Guide

Bore Tech Patch Guide 17-25 Gold is a patch guide for bolt-action rifles, designed to make cleaning the barrel of a centerfire rifle in the .17 to .25 caliber range easier and cleaner. The gold-colored guide helps you quickly identify the correct caliber range, and the patented hands-free patch spiking system reduces cleaning solvent mess on your hands, the rifle stock, and the cleaning bench.

Bore Tech?s CENTERFIRE, BOLT ACTION PATCH GUIDE design simplifies patch use: place the patch over the opening of the angled patch plate, wet the patch with cleaning solvent, and push the cleaning rod into the barrel. The angled patch plate attaches the cleaning patch to the rod in a controlled way, making it easier to thread the patch onto the rod?something that can be especially difficult with longer rods?and speeding up the cleaning process.

The guide is designed to align the cleaning rod precisely with the rifle bore, helping to prevent damage to both the firearm and the cleaning rod. This is achieved with the front self-centering, tapered rubber nose cone and the extended rear body structure. In practice, the guide supports the rod correctly throughout the entire cleaning stroke and helps protect the rifle?s chamber and bolt areas during cleaning.

The replaceable, solvent-resistant molded rubber nose cones are soft enough to create a tight and long-lasting seal. The tight nose cone prevents cleaning solvents from leaking into the chamber and bolt area, making cleaning more controlled and helping keep the firearm?s critical parts cleaner.

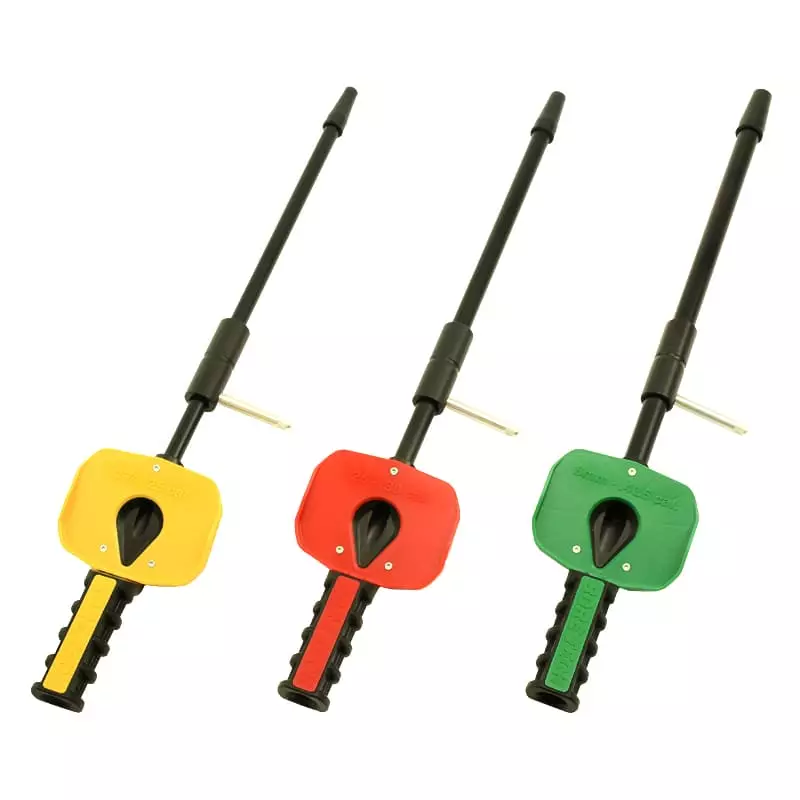

The guide fits both short and long actions. The adjustable bolt collar locks securely in place with a threaded locking handle, and the construction uses precision-molded and CNC-machined components made for long-term use. Bore Tech Patch Guides are color-coded for caliber identification and fit most popular Remington 700-style centerfire bolt-action rifles.

Bore Tech Patch Guide 17-25 Gold - Features:

• Product type: patch guide for bolt-action rifles
• Model: Bore Tech CENTERFIRE, BOLT ACTION PATCH GUIDE
• Caliber range: .17 - .25
• Color: Gold, gold-colored
• Color coding: helps identify the correct caliber range
• Compatibility: most popular centerfire Remington 700-style bolt-action rifles
• Action length: designed for both short and long actions
• Patented design: hands-free patch spiking system for attaching the cleaning patch to the cleaning rod
• Patch plate: angled patch plate on which the cleaning patch is placed before pushing the rod into the barrel
• Use of cleaning solvent: the patch can be wetted with cleaning solvent or oil before pushing in the rod
• Brush handling: the patch plate also allows cleaning solvent to be applied to brushes
• Alignment: guides the cleaning rod precisely in line with the rifle bore
• Protective design: helps prevent damage to the firearm and the cleaning rod
• Nose cone: self-centering, tapered rubber front section
• Nose cone material: replaceable, solvent-resistant molded rubber
• Sealing: prevents cleaning solvents from leaking into the chamber and bolt area
• Bolt collar: adjustable bolt collar locks the guide in place
• Locking: threaded locking handle secures the bolt collar firmly
• Construction: precision injection-molded and CNC-machined components
• Length: approx. 40.6 cm (16 inches)
• Additional cleaning length: adds approx. 40.6 cm (16 inches) to the barrel length, so the cleaning rod must be sufficiently long
• Fit of included bolt collar: most centerfire actions with a bolt diameter of approx. 17.65 - 17.78 mm (0.695 - 0.700 inches)
• Typical compatible bolt diameters: most Remington, Winchester, Ruger, Browning, and Savage rifles have a bolt diameter of approx. 17.65 - 17.78 mm (0.695 - 0.700 inches)
• Need for a special collar: for smaller or larger bolt diameters, such as Weatherby, Sako, Kimber, and CZ, the bolt diameter must be measured to an accuracy of approx. 0.025 mm (0.001 inches) to select the correct collar
• Stock note: with stocks equipped with a high cheekpiece, such as McMillan A3-A5, Manners T4-T5, and similar models, the suitability of the guide version should be confirmed before use
• Country of manufacture: USA

Bore Tech Patch Guide 17-25 Gold makes using cleaning patches more controlled and helps keep the cleaning process cleaner. Precise rod alignment, a sealing rubber nose cone, and a locking bolt collar provide a practical solution for regular rifle maintenance when you want to protect the bore, chamber, and bolt area during cleaning.

Recommended use: suitable for maintaining centerfire bolt-action rifles when using a rifle in the .17 - .25 caliber range and when cleaning patches are to be used cleanly, precisely, and in a way that protects the barrel.
