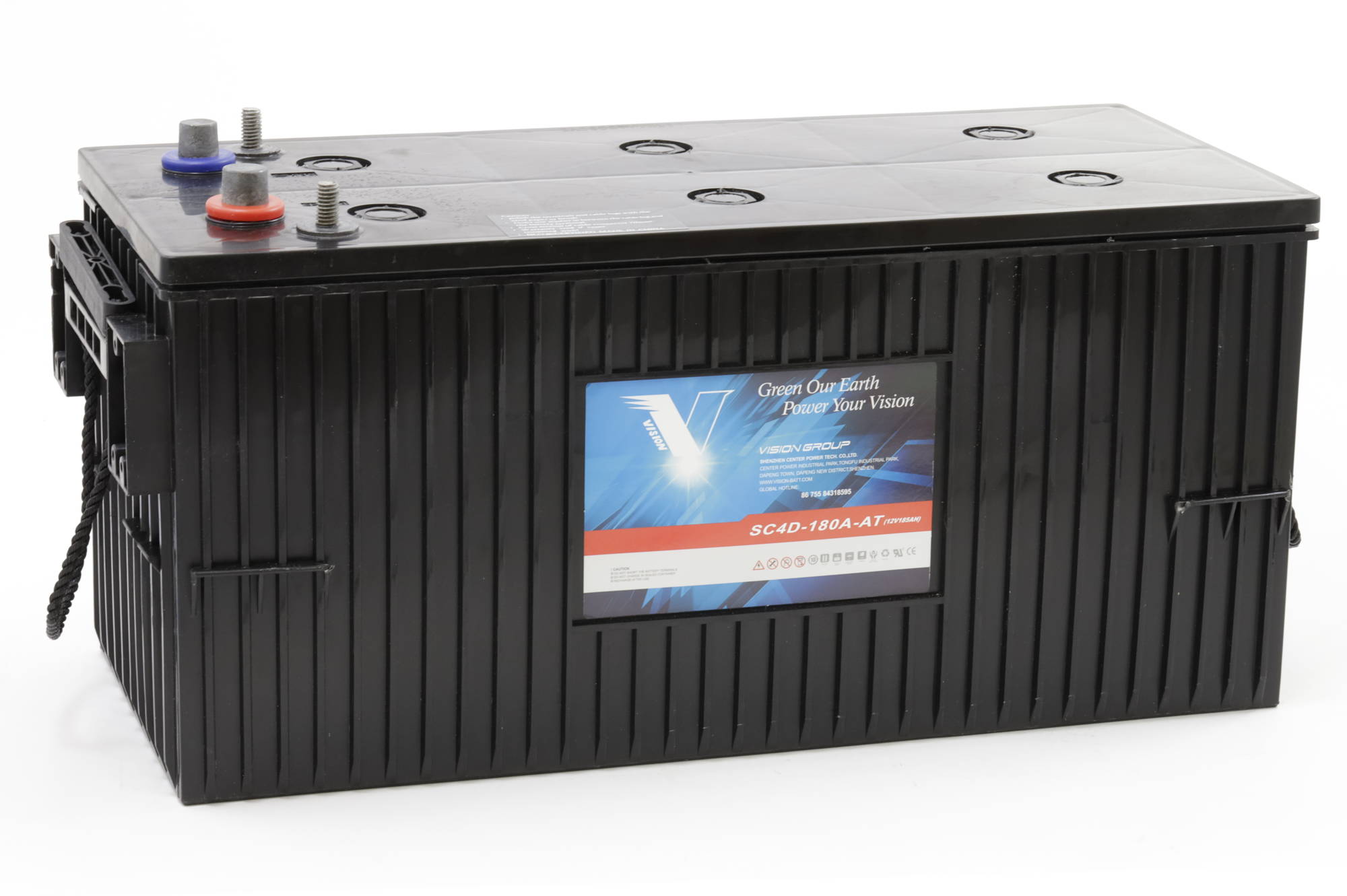

Vision AGM

Vision AGM batteries are highly durable and efficient AGM batteries designed for solar power systems. Thanks to their construction, the batteries have very low self-discharge and excellent charge acceptance. All Vision AGM batteries have a long service life, significantly longer than traditional lead-acid batteries. Vision AGM batteries are maintenance-free, so there is no need to add water afterwards.

The range includes two different AGM batteries for solar systems. Both are highly efficient and sized for the solar systems we sell.

Vision AGM batteries:

• Available: 12V 185Ah and 12V 200Ah
• Dimensions:
  12V 185Ah 528*222*250mm
  12V 200Ah 528*238*223mm
• Weight:
  12V 185Ah 58kg
  12V 200Ah 65kg
• Terminals:
  12V 185Ah - Dual terminals
  12V 200Ah - M8 threaded bolts

• Positive and negative plates in lead-calcium-tin alloy
• Stable Quality&High Reliability
• Sealed Construction
• Long Service Life
• Maintenance-Free Operation
• Low Pressure Venting System
• Low Self Discharge
• U.L.Component Recognition
• Six months shelf life at 20°C
• Design life 10 years

Vision 12V 200Ah Main Features:

• Nominal Voltage: 12V
• Number of cells: 6
• Design Life: 10 years
• Nominal Capacity 77°F(25°C)
  10 hour rate (20.0A, 10.8V): 200Ah
  5 hour rate (36.0A, 10.5V): 180Ah
  1 hour rate (128A, 9.6V): 128Ah
• Fully Charged battery 77°F(25°C): ≤4.0 mOhms
• Self-Discharge: 3% of capacity declined per month at 20°C(average)
• Operating Temperature Range:
  Discharge: -20~60°C
  Charge: -10~60°C
• Max. Discharge Current 77°F(25°C): 1000A(5s)
• Short Circuit Current: 3300A

• Charge Methods: Constant Voltage Charge 77°F(25°C)
• Cycle use: 2.40-2.45VPC
• Maximum charging current: 60A
• Temperature compensation: -30mV/°C
• Standby use: 2.20-2.30VPC
• Temperature compensation: -20mV/°C
