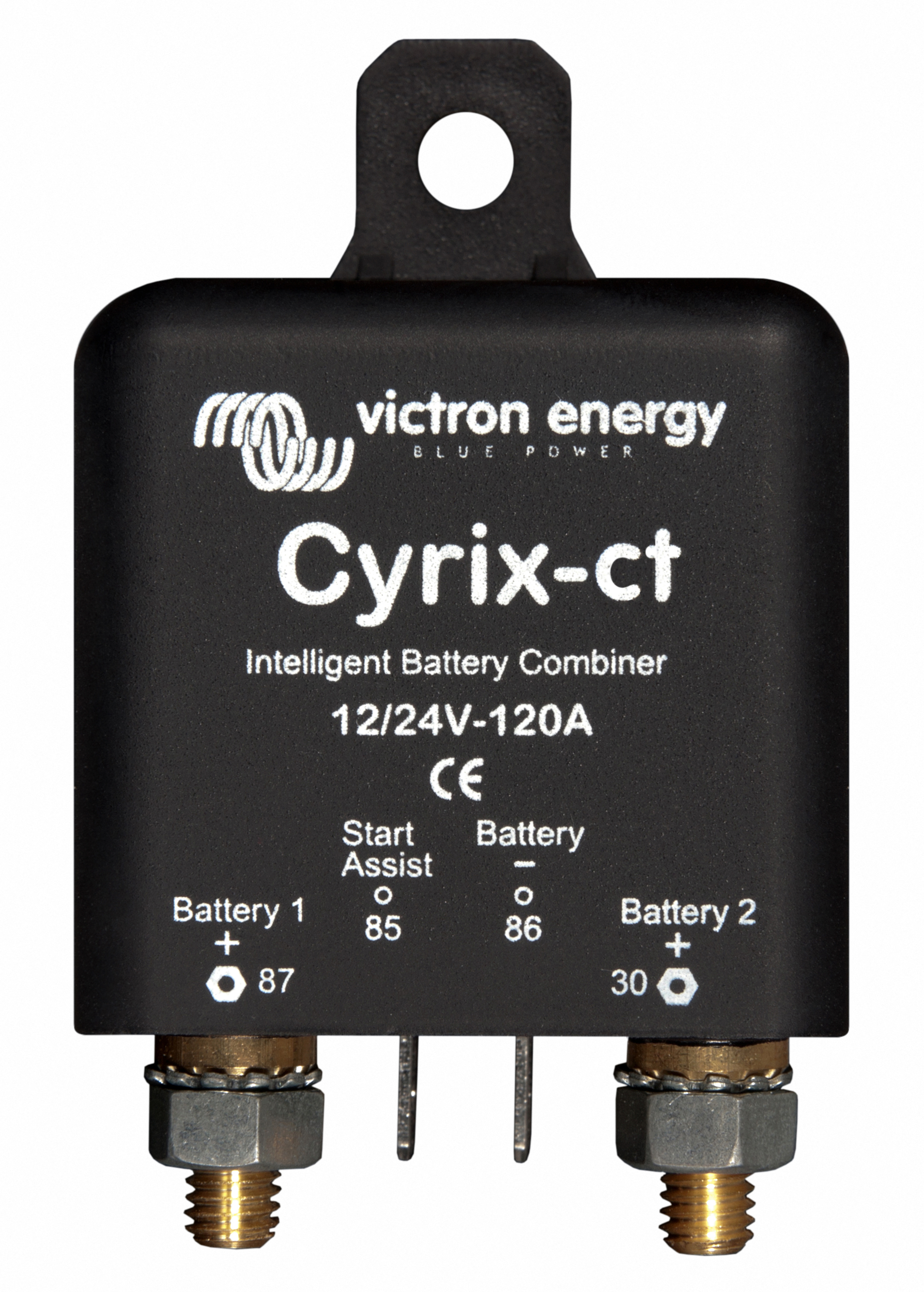

Victron Cyrix-CT / Cyrix-Li-CT

Victron Cyrix-CT ja Li-CT -  - is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

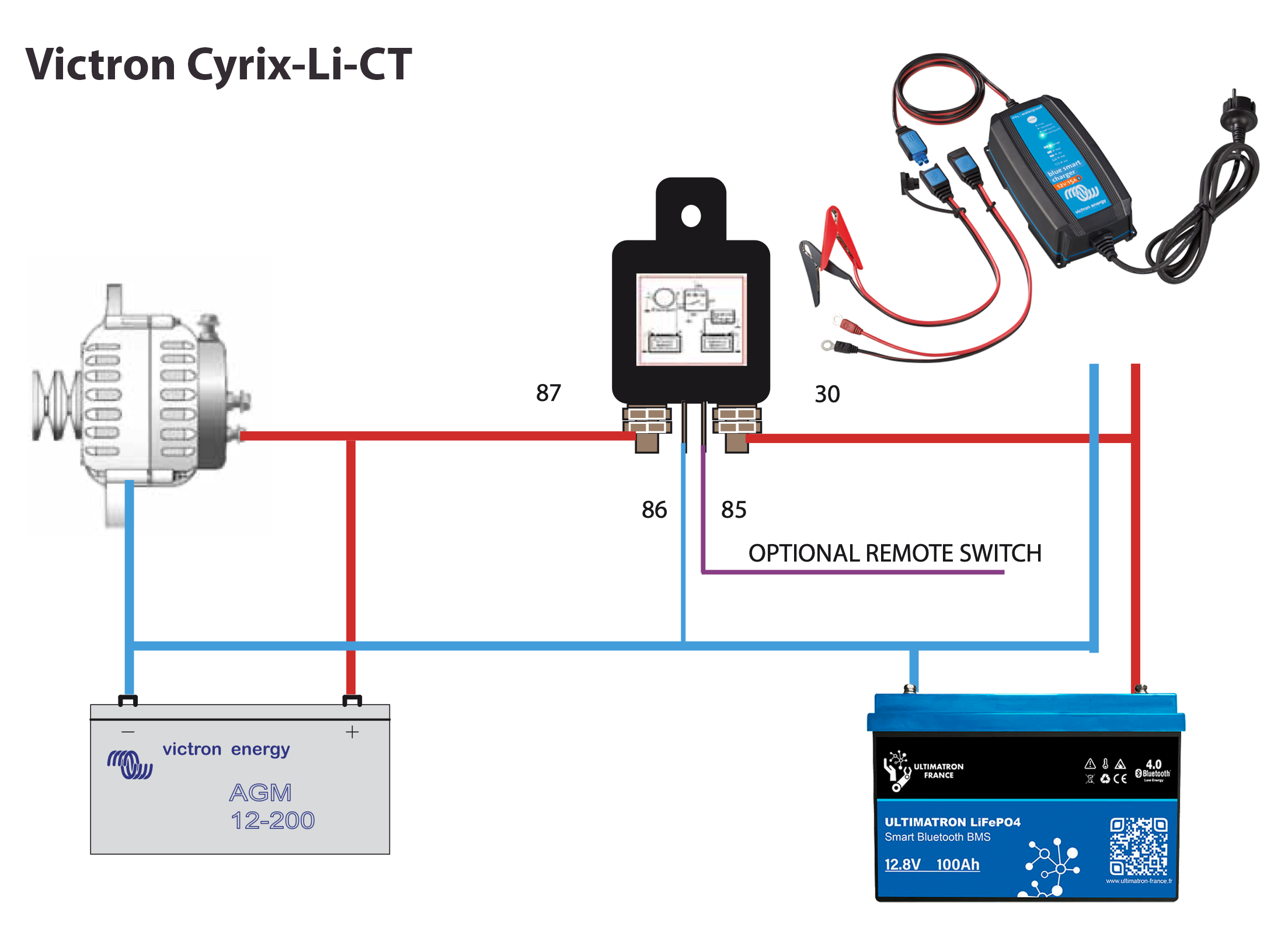

Victron Cyrix-Li-CT - The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct. The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:

• if the Charge Disconnect output of the VE.Bus BMS is high, and
• if it senses 13,4V (resp. 26,8V) or more on one of its power terminals. The Cyrix will disengage immediately:
• when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
• when battery voltage drops below 13,2V.

Start assist function: a short negative pulse will close the relay during 30 seconds (see figure on page 2).
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.

Victron Cyrix CT / Cyric-Li-CT Main Features:

• LED status indication: No
• Continuous current: 120A
• Cranking rating (5 seconds): 180A
• Current consumption when open: <4 mA
• Current consumption when closed: 12 V : 220 mA or 24 V : 120 mA
• Start Assist: Yes (Cyrix remains engaged during 30 seconds)
• Protection category: IP54
• Weight: 0,11 kg (0.24 lbs)
• Dimensions (h x w x d): 46 x 46 x 80 mm

• Cyrix-CT Connect (V) / Delay :
  V < 13 V: Remains open
  13,0 V < V < 13,2 V: 10 min
  13,2 V < V < 13,4 V: 5 min
  13,4 V < V < 13,6 V: 1 min
  13,6 V < V < 13,8 V: 4 sec


• Disconnect (V) / Delay :
  V < 11 V: 0 sec
  11,0 V < V < 12,0 V: 1 sec
  12,0 V < V < 12,2 V: 10 sec
  12,2 V < V < 12,4 V: 30 sec
  12,4 V < V < 12,8 V: 3 min
  > 12,8 V: remains closed
  > 16 V: over voltage disconnect

• Cyric-Li-CT Connect (V) / Delay :
  13,4V < V < 13,7V: 120 s
  13,7V < V < 13,9V: 30 s
  V > 13,9V: 4 s


• Disconnect (V) / Delay :
  13,3V < V < 13,2V: 10 s
  V < 13,2V: immediate
