- Product Code: 2801202510
- Warranty: 2 years

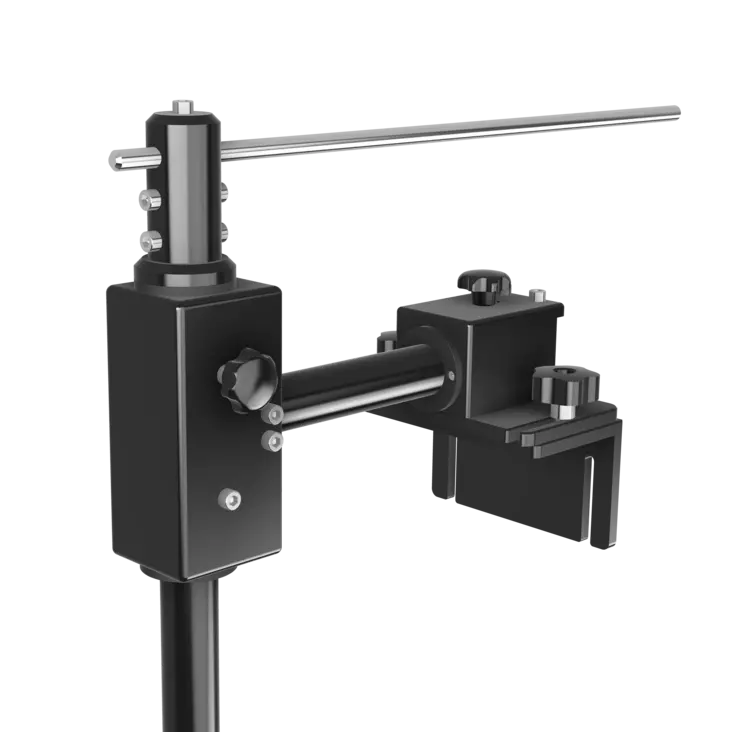

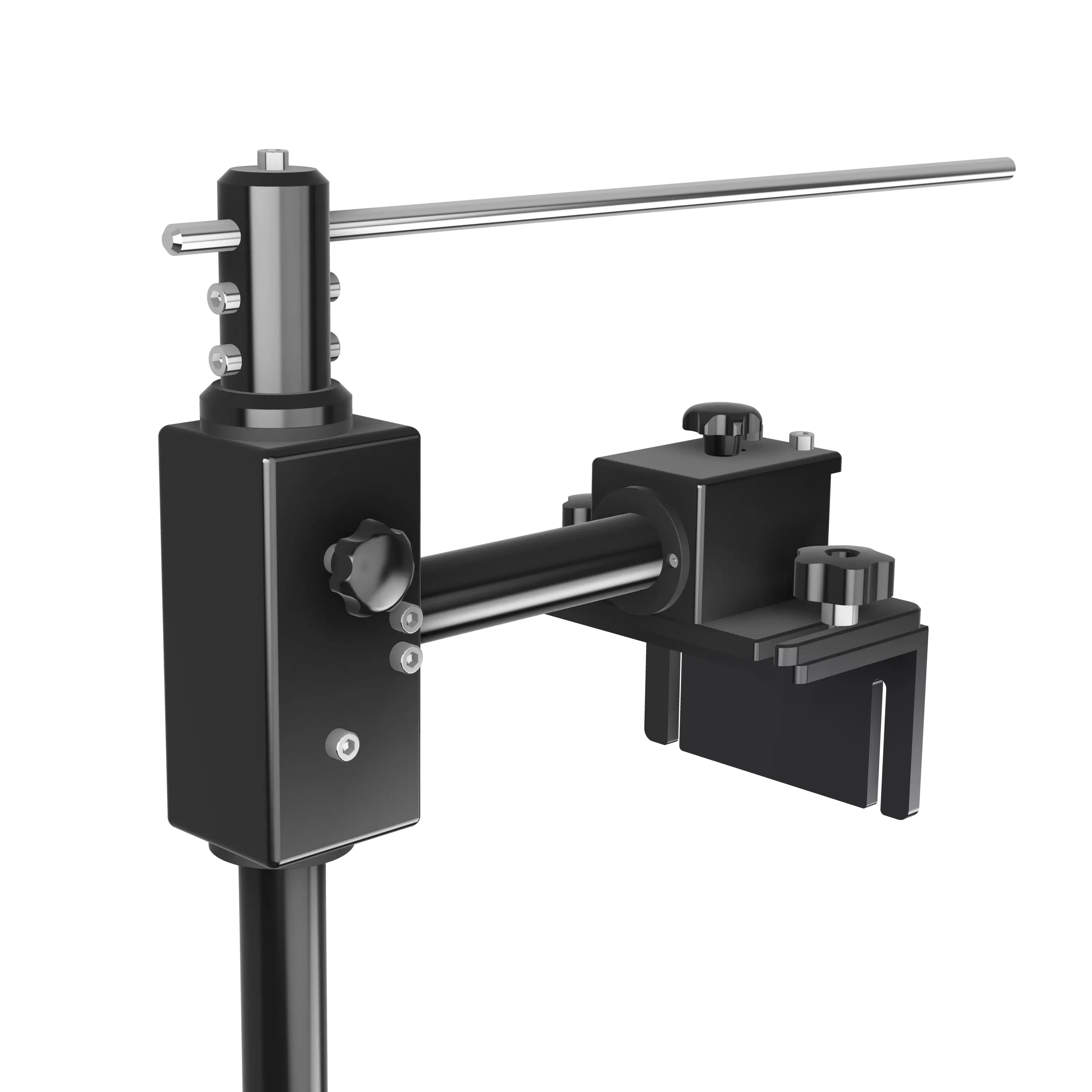

Ruoto Panoptix Livescope 2 -mount continues the story of Ruoto's popular mount with a new version. Ruoto mounts have been developed in collaboration with Finnish anglers, specifically for live fishing. The mount is manufactured in Finland, and each part is CNC-machined from aluminum. This transducer mount is designed especially for the increasingly popular Garmin Panoptix Livescope, Humminbird Mega Live, and Lowrance Active Target transducers.
The mount is made entirely of aluminum in Finland, ensuring a long service life. Additional mounting bases are available as accessories (one piece is included in the price), allowing you to position the mounts in two different locations on your boat. The quick-attachment mechanism makes the mount easy and fast to install.
The Ruoto Panoptix Livescope 2 transducer mount easily rotates horizontally during transportation. Simply loosen the thumb screw on the stand, push the mount inward, and turn it into transport position. Thanks to the square locking piece, the mount always rotates in 90-degree increments, ensuring your transducer is always in the correct position. The handle at the top of the mount allows you to rotate the Livescope transducer to the desired direction. It is recommended to install the transducer parallel to the handle or in the completely opposite direction, so you can always see from the handle where the transducer beam is pointing. The mount also functions as a regular "vertical fishing mount," as the top handle can be locked in four different positions with a spring-loaded locking pin.
Note! The mount is not designed to withstand the stresses of trailering. Always remember to bring the mount inside the boat for protection when transporting your boat on a trailer.
Ruoto Panoptix Livescope 2 -additional details:
- All parts are CNC-machined, except for the handle (stainless steel)
- Slide bearing sleeves machined from bearing-grade plastic
- All parts are replaceable
- No breakable parts. Tested 2000 h / 3 years with 2x Garmin Livescope
- Easy adjustment of rotational stiffness and locking of the transport position
- Black anodized
- Product packed in a sales package
- Weight: 4.8 kg
The sales package also includes:
- A hex key for locking the handle
- A corner bracket, which is also suitable for rail mounting (includes rail brackets)
Maintenance instructions and warranty information:
- All parts made in Finland
- Maintenance: Gun oil / WD40. Wiping with a cloth extends the product's lifespan (not included in the package)
- Warranty: 2 years
Available as accessories:
- Short horizontal pipe
- Flat mount, straight
- Longer vertical pipe.
The customer can replace parts themselves
