- Product Code: 7106623691700
- EAN: 7106623691700
- Warranty: 2 years
- Clearance product
Rebelcell 12,6V 13A Range Extender - to recharge your Rebelcell 12V70 AV or 12V140 AV li-ion battery ‘on the go’ via your (outboard) engine and extend your battery range.
- Suitable: for use with (outboard) engines with 12V alternator with > 15A charge current (in practice 60HP + (outboard) engine).

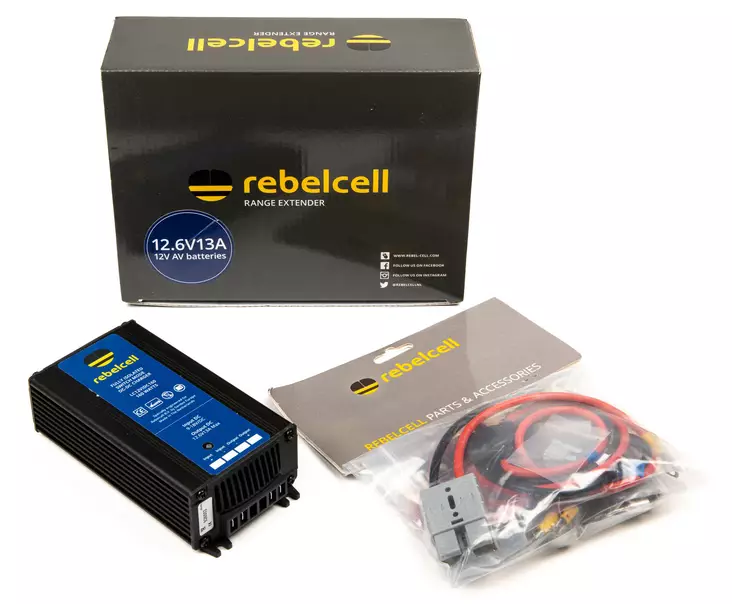

- Consists: one Rebelcell DC-Charger 12.6V13A (165W), one Samlex BS100 Dual battery separator, one cable-set with integrated fuses and connectors.
- Weight: 0.6 kg
- OPTIMAL CHARGING PROFILE: the Range Extender converts the alternator charge current to the suitable charge profile for your Rebelcell battery for safe charging.
- STARTER BATTERY DISCHARGE PROTECTION: the microprocessor controlled battery seperator ensures that charging of the Rebelcell battery only takes place after the starter battery is full.
- OVERCHARGE PROTECTION: limits charge current automatically when battery is nearly full and shutdown if battery is full.
- TEMPERATURE PROTECTION: dynamic thermal output control' feature limits (or stops when required) the charge current if temperatures are too high.
- SHORT CIRCUIT AND REVERSE POLARITY PROTECTION: automatic shutdown with short circuit. Reverse polarity protection only on input (not on output).
- WARRANTY: two years.
LEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER
1 The Range Extender is suitable for use with (outboard) engines that meet the minimum alternator output requirements as indicated before. Consult the manual of your (outboard) engine for this information. Lower than specified charge current from the alternator will lead to de-activation of the DC charger as the battery separator will stop current flow to avoid discharge of the starter battery.
2 The Range Extender is therefore not suitable for use with (outboard) engines that use a charging coil instead of an alternator: the capacity is not sufficient to charge both the starter battery and Rebelcell battery.
3 Only use the Range Extender with the suitable Rebelcell battery(12V70 AV / 12V140 AV)! Using it with a different battery can lead to irreversible damage to your equipement and battery. This damage is explicitly excluded from warranty.
4 Additional cables for connecting the starter battery to the RE are NOT included. Cable length, thickness and connectors need to be customised to your specific situation. Contact your installation partner for advise on the correct cables.
5 Consult a certified electrician if you have any questions about installation.
Technical specifications:
- Capacity: 165W
- Galvanic seperation: yes
- Input voltage range (alternator output): 9 - 18V
- Output voltage: 12.6V
- Output Ripple & Noise <50mV RMS
- Peak efficiency max 85%
- Parallel connection no
- Temperature range -20°C tot +30°C (linear lowering of charge current to 0°C bij 70°C)
- Humidity (non condensing) max 95%
- Dimensions 176 x 88 x 50 (mm)
- Weight: 0.6 kg
- Connectors input / output Non-isolated yellow AMP connector (Quick Connect M 6.3 mm)
- Overcharge / short circuit: yes, output
- Over voltage :yes, input and output
- Reverse polarity protection: yes, input
- Reverse polarity protection: yes
- Input fuse 25A inline (+cable)
- Output fuse 15A inline (+cable)
- CE: yes
- Automotive: yes
- EMI/EMC EN50081-1 (EMI), EN50082-1 (EMC), European Automotive Directive 95/54/CE
- Warranty: two years
