RAM® Universal Marine Electronic C Mount - Standard

RAM® Universal Marine Electronic Mount - Standard
C-Ball

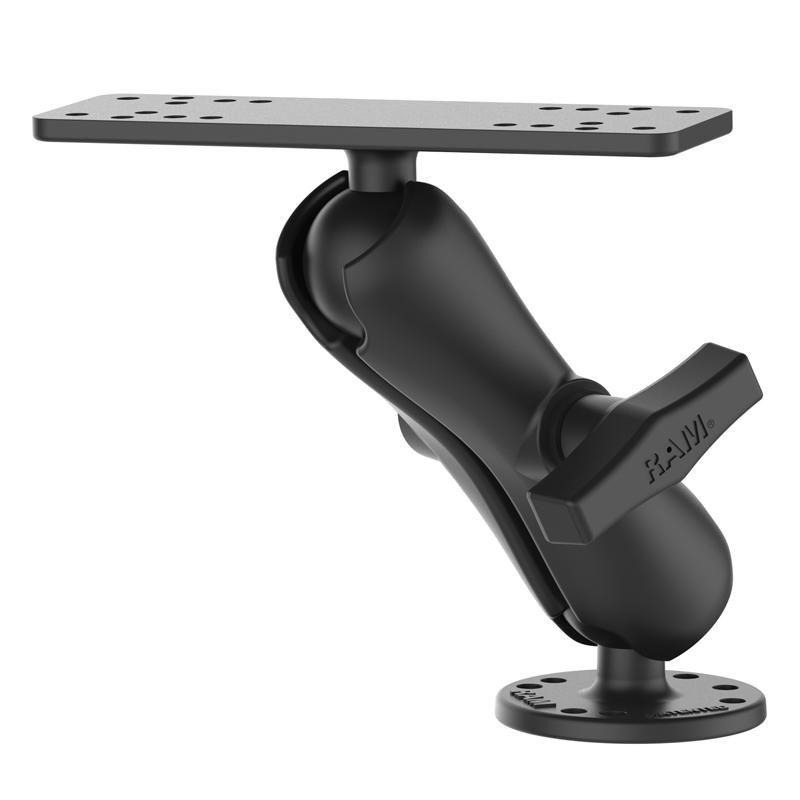

The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

RAM® Universal Marine Electronic Mount info:

• Overall Height: 7.35"
• Socket Lenght: 4.66"
• 4-Hole AMPS: 1.181" x 1.496"
  3-Hole 120-Degree: 1.812" Diameter
  See Drawing
• Plate Size: Rectangular Plate: 6.25" x 2"
  Round Plate: 2.5" Diameter
• Ball Soze: C Size (1.5")
• Weight Capacity: 4 lbs
• Materia: Marine-grade aluminum
