- Product Code: 793442211119
- EAN: 793442211119
RAM® Large Marine Electronics Plate
D Ball

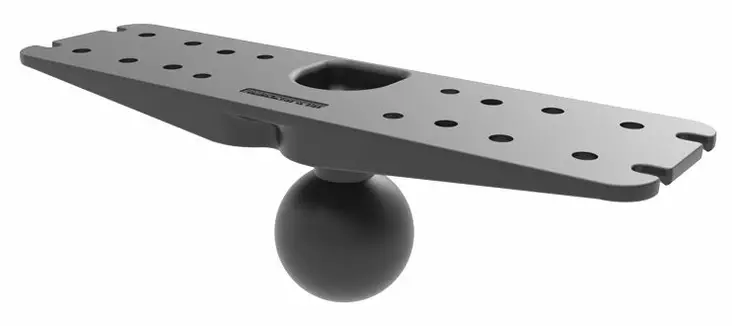

The RAM-D-111BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 11 x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices.
HARDWARE INCLUDED: (4) .312" x .187" Shoulder Washers
HOLE PATTERN: See Drawing
PLATE SIZE: 3" x 11"
BALL/SOCKET SIZE: D Size (2.25")
WEIGHT CAPACITY: 6 lbs
MATERIALS: Marine-grade aluminum
PACKAGING TYPE: Poly Bag
WEIGHT: 1.3 lbs.
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
