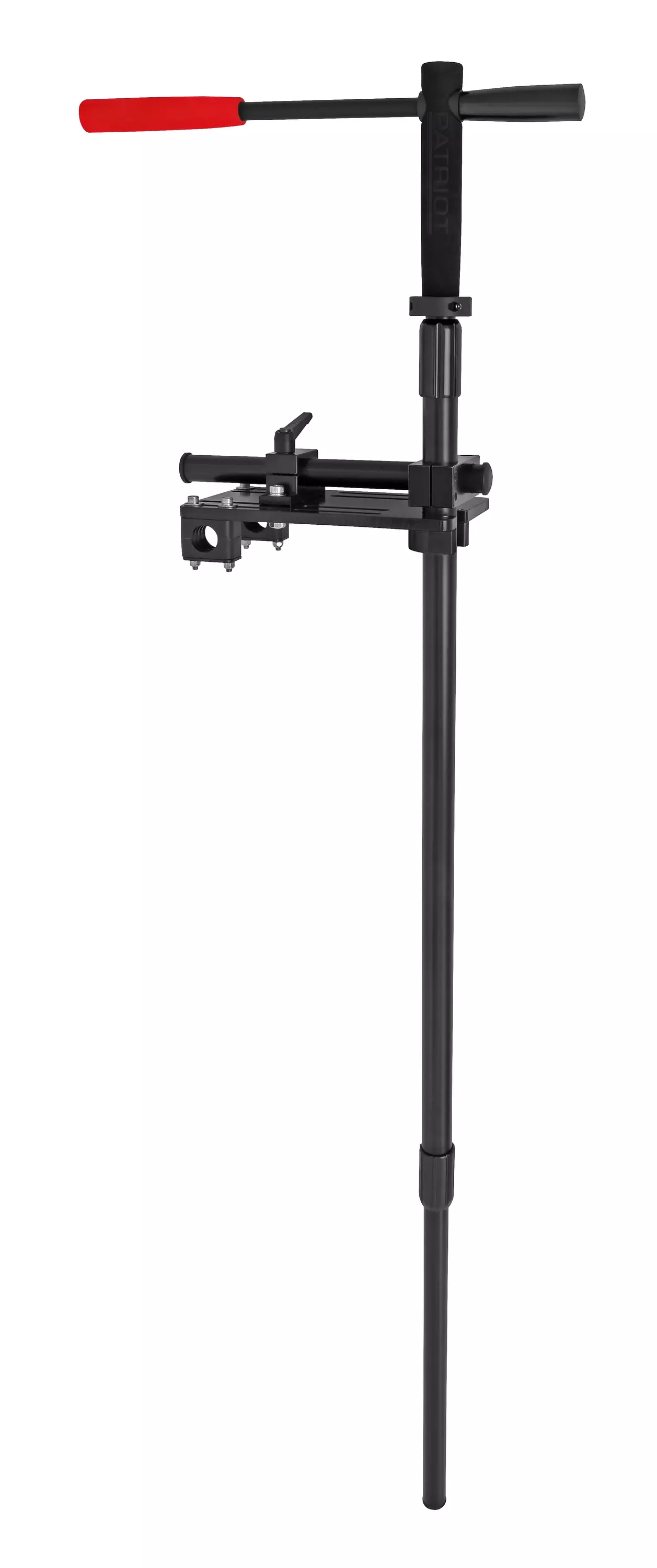

Patriot LiveFix 360

Patriot LiveFix 360 -  is a sturdy aluminum sensor mount for live sonar use. Thanks to its highly versatile adjustment and mounting options, the Patriot LiveFix is suitable for installation in almost all types of boats.

The Patriot LiveFix 360 sensor mount is designed to be installed either on a railing, fixed by bolting to a surface, or on a mounting rail running inside the boat (rail mount accessory). Thanks to the adjustment grooves on the mounting table of the sensor mount, the installation position and distance of the mount can be adjusted optimally for different types of boats. With sufficient adjustments, the Patriot LiveFix is also suitable for installation in most wider boats, such as Buster, Silver, and Faster brand boats.

The versatile adjustments and adaptability of the Patriot LiveFix 360 sensor mount allow it to be installed in both smaller and slightly larger boats. The sensor tube is made of aluminum, making it very easy to work with and, if necessary, shorten to the right length for smaller boats. In its standard length, the sensor tube is long enough (150cm) to reach below the bottom line even in slightly larger and higher-sided boats. The height of the sensor tube is also easy to adjust by raising it slightly, allowing the mount to be turned from the casting platform during fishing without reaching.

The carefully considered features and details of the Patriot LiveFix 360 sensor mount make it easy to use. When lowering the mount to the lower position, the sensor tube locks into its own supported slot, and a light tightening of the locking lever is sufficient. In the lower position, the tube stays firmly in the slot and does not twist or tilt, keeping the mount always in the correct position. During sonar use, the rotation resistance of the sensor mount can be finely adjusted using the adjustment nut at the top of the mount. A sufficiently long and high-visibility indicator handle helps to easily detect the direction of the sensor even from a distance. When raising the sensor mount to the transport position, it locks securely in a horizontal position resting on the mounting table, after which a light tightening of the locking lever is sufficient. The sensor tube can be completely detached from the mounting table for storage and transport, leaving no other parts attached to the boat. The sensor tube can also be turned inside the sides of the boat for protection, for example, during trailering.

The Patriot LiveFix 360 is designed to work with Lowrance Active Target, Garmin Panoptix Livescope, and Humminbird Mega Live sensors.

Please note that the rack is not designed to withstand the stresses of trailering. Always take the rack inside the boat for protection when transporting the boat on a trailer.

Patriot LiveFix 360 additional information:

• Sturdy and lightweight aluminum structure
• Versatile adjustment and mounting options
• Robust 10mm thick aluminum mounting table with adjustment grooves
• In the lower position, the sensor tube locks into a supported slot and always stays in the correct position
• In the upper position, the sensor tube locks securely in a horizontal position against the mounting table
• Quick-use locking lever for fast and easy use
• Can be installed on a railing, surface, or rail (rail mount accessory)
• Includes mounting accessories for railing installation (25mm / 1" tube)
• Detachable indicator handle
• Sensor tube can be detached, leaving only the mounting table in the boat
• Sensor tube can be turned inside the side of the boat, for example, during trailering
• Infinitely adjustable height
• Infinitely adjustable rotation resistance
• Total length of the sensor tube 150cm
• Sensor tube designed to be shortened to the appropriate length for each boat
• Sensor tube diameter 25mm / 1"
• Inner tube structure allows the cable to be attached to the outer tube
• Bolts and mounting accessories made of stainless steel
• Suitable for installation in almost all types of boats

• Warranty 12 months

• Designed for use with Lowrance Active Target, Garmin Panoptix Livescope, and Humminbird Mega Live sensors
