- Product Code: 0404202250
- Warranty: 2 years
Mastervolt Clix System Mini Ruoto Special - is a shore power package tailored to our wishes. This is made specifically for anglers using aluminum boats! It includes the necessary sockets that most anglers need and the package also includes a very high-quality galvanic isolator that protects your aluminum boat and you. This package is designed for 4-7m aluminum boats that require two separate chargers. You can easily charge your batteries in the harbor or on a trailer using the shore power system.
- The package includes sockets for two chargers or equivalent 230V system devices.
More commonly, chargers are installed in the sockets for the bow engine battery and the start or boat electronics battery
- The package includes a very high-quality ProMariner ProSafe FS30 galvanic isolator. This is the only way to protect the boat from potential electrical leaks in the harbor. The galvanic isolator prevents electro-galvanic corrosion.
The galvanic isolator is pre-made to fit the Clix system. You can just connect it in place without major installation work.
Mastervolt Clix System Mini Ruoto Special - is an easy way to connect the boat to harbor and shore power. The package includes connectors and parts for successful and safe connections. The system is well-suited for do-it-yourself installers. The Clix system is high-quality but affordable and easy to expand according to growing needs.
Clix Power System is equipped with IP67 protected plug connectors, which are pre-installed on cables, the center, and sockets. The Clix Power System shore power system allows charging of batteries with a mains-powered battery charger and additionally, 230V devices can be used normally from the sockets when the system is connected to shore power.
The Clix Power System shore power system is tailored for Finland, but it works in European harbors with a supply voltage of 230V and a maximum current of 16A.

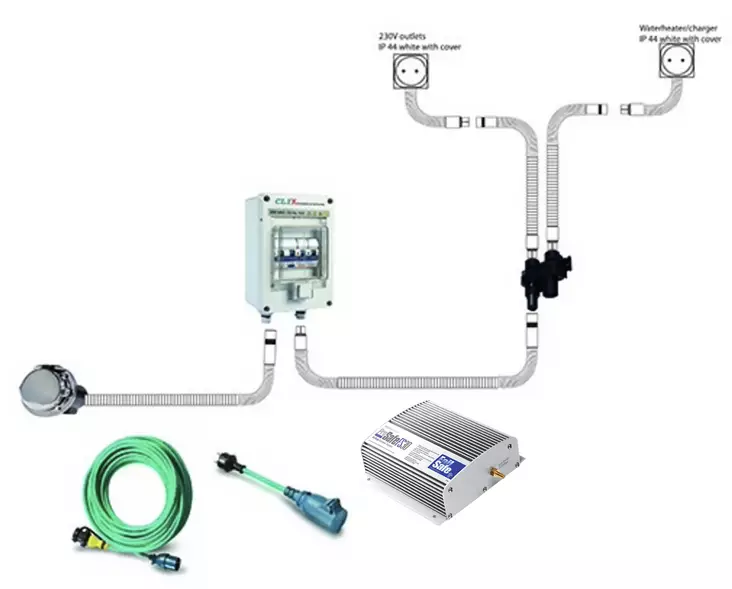

Mastervolt Clix System Mini Ruoto Special additional information:
- ProSafe FS30
The galvanic isolator is pre-made to fit the Clix system
- Clix shore power center Mini
- RST 20i3 3*2.5mm connection cable
- RST socket 230VAC/16A Clix
- Clix socket Arctic 1-gang socket
- Y-piece 1 x in, 3 x out
- MP16 connection cable 15m 3*2.5
- Adapter CEE -> Schuko
ProMariner Prosafe Galvanic Isolator Main Features:
- ABYC A-28 July 2008 Compliant and Fail Safe Certified: Certified by Underwriters Laboratories (UL). Ensures shore power safety ground wire is maintained through the isolator.
- Flat Pack High Power Semiconductors: Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents 3,000 and 5,000 amps (FS30 and FS60 respectively) for the required duration period.
- Innovative Design: The FS60 will cool itself in the event it must conduct current ensuring cooler operation in this mode
- Ignition Protected: Meets ISO 8846 and either model can be mounted within an engine compartment
- Gold Plated Terminations: Simply install in your onboard green safety ground wire (between your AC inlet and your AC Panel) to separate your DC Bonding System from your Shore AC Green wire
- Use the ProSafe FS30 for 30 Amp Shore Cord Applications
- Use the ProSafe FS60 for (1) 50 Amp or (2) 30 Amp Shore Cord Applications
