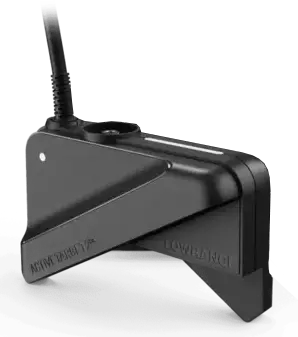

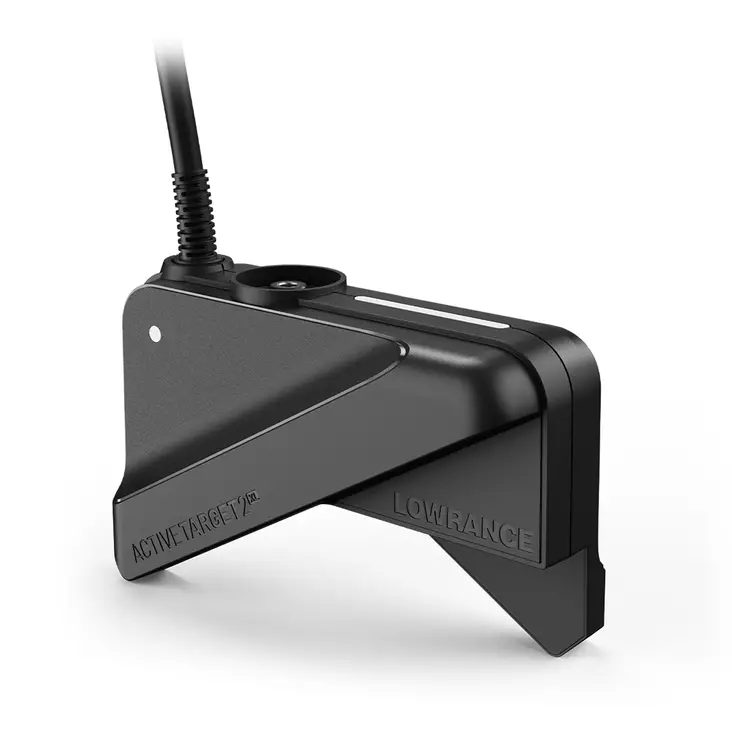

Lowrance ActiveTarget 2 XL System is Lowrance’s most advanced live sonar package when you want the clearest and most comprehensive real-time view of fish, lures, and bait schools. At the core of the system is the new XL live sonar transducer, delivering excellent resolution and the widest field of view: full 180° XL views in Forward, Down, and Scout modes with one single transducer.
Lowrance ActiveTarget 2 XL makes both recreational casting and competitive fishing significantly more efficient: you can see fish movement and reactions to your lure instantly and adjust presentation, speed, and casting or anchoring position within seconds. The redesigned structure allows fast view switching, especially between Forward XL and Down XL modes directly from the display, while switching to Scout mode is made easier with a new mounting solution and reference/angle markings for different depths.
Lowrance ActiveTarget 2 XL System - Features:
- 180° XL live view with a single transducer: Forward XL, Down XL, and Scout XL
- Best-in-class resolution: an even sharper real-time image of fish and lures
- Forward XL: surface-to-bottom 180° view – follow the lure drop and strikes throughout the entire water column
- Down XL: expanded 180° view beneath the boat – coverage from bow to stern
- Scout XL: 180° “overhead” forward-facing view – locate bait balls and fish schools before driving over them
- Quick-Switch Views: switch between Forward XL / Down XL views faster than ever
- Easy Upgrade: the XL transducer is a “one and done” upgrade, and the system can also utilize an existing ActiveTarget 2 module
- With a dual system (2 transducers + 2 modules), Scout Live 360° view is available on HDS PRO displays, along with ping sync support to minimize interference
- Technology: frequency range 650–1300 kHz, maximum depth 60.96 m (200 ft), beam width 20° x 180°
- Connections: Ethernet (1–100 Mbit) to compatible displays
- Power supply: 10.8–31.2 VDC, typical consumption 1.5A @ 13.8V, maximum 2.2A @ 10.8V, recommended fuse 5A
- Construction and durability: IP67 rating, wide operating temperature range (module -15°C – +55°C)
- Compatibility: Lowrance HDS PRO, HDS LIVE, HDS Carbon, and Elite FS (model- and display-specific view limitations apply)
- Scope of delivery (System): ActiveTarget 2 module, ActiveTarget 2 XL transducer (25 ft / 7.62 m cable), XL shaft mount, 15 ft Ethernet extension cable, 4-pin power cable, mounting hardware, and installation/user manual
When the goal is to maximize effective casts and minimize “unnecessary” adjustments, ActiveTarget 2 XL truly shines in practice: the precise live image helps select the right group of fish, optimize lure presentation, and interpret fish behavior. This translates directly into results, for example when searching for perch and zander or tracking pike in shallower water, when you want to be certain where fish are actually moving and how they react.
Compatibility and installation
The system connects via Ethernet to a compatible Lowrance display, and installation can be tailored to the intended use (e.g. mounts designed for shafts or motors). When using two ActiveTarget 2 XL systems, an exceptionally wide Scout Live 360° view around the boat becomes available in an HDS PRO setup, along with ping sync functionality to help reduce mutual interference between the two transducers.
