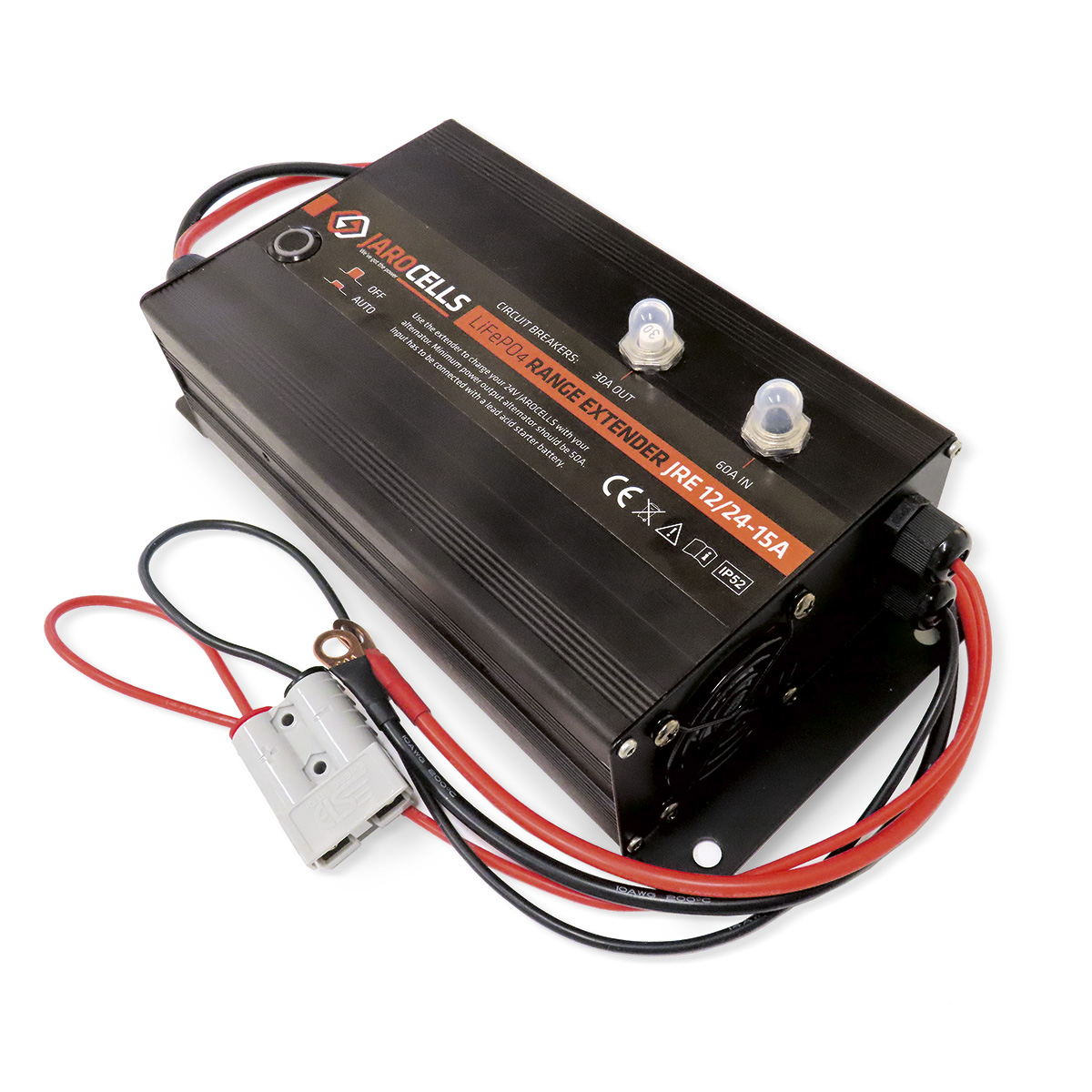

Jarocells Range Extender 12V-24V 15A

Jarocells Range Extender 12V-24V 15A

Jarocells Range Extender 12V-24V 15A info:

• Voltage range input: 9,0 – 14,4 V
• Current draw from alternator: 35 – 40 A max.
• Battery type for input: Lead acid (wet, AGM or Gel)
• Input circuit breaker: 60 A
• Type input circuit breaker: Thermal magnetic
• Resettable: Yes
• Button function: Extender Off or Automatic
• Automatic function: On above 13,2 V, Off below 12,8 V
• Type of switch:  Voltage sensitive Relay 140 A, electronically managed
• Voltage output: 28 V +/- 0,2 V
• Current output: 15A max. depending on voltage in 24V
• Output circuit breaker: 30A
• Type output circuit breaker: Thermal magnetic
• Resettable: Yes
• IP rating VSR: IP65
• IP rating converter: IP67
• IP rating switch: IP65
• IP rating ventilators: IP52
• IP rating circuit breakers: IP54
• Environment advised: Inside boat, protected from direct water spray

• Weight: 2kg
• Cable quality: Tinned copper core with silicone heat resistant isolation
• Connection ingoing: 8mm ring terminals
• Connection outgoing: Anderson Grey SB50
