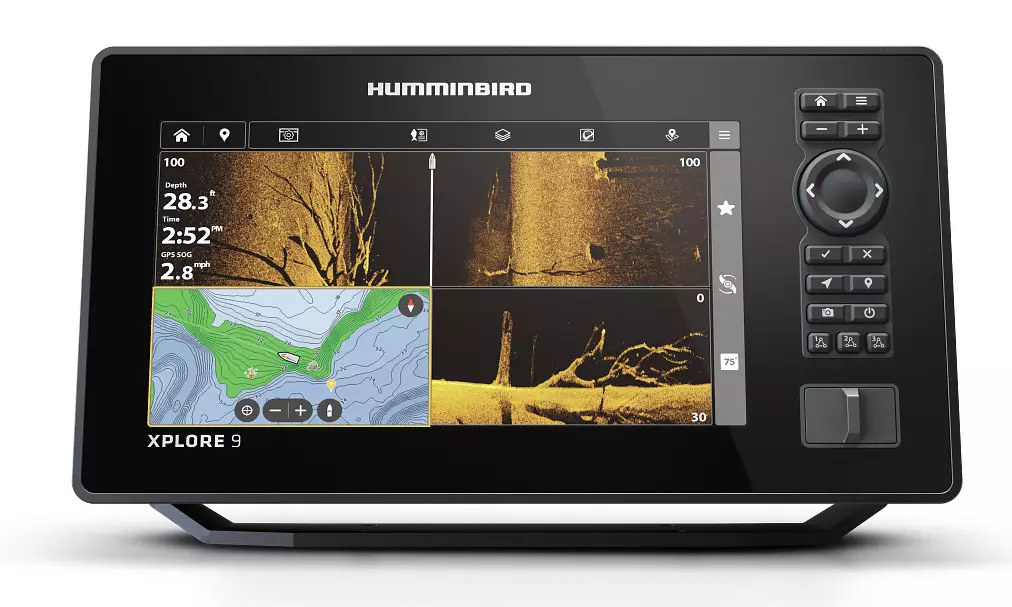

Humminbird XPLORE 9 CMSI+

Humminbird Xplore - is a next-generation sonar that combines exceptional performance and versatility. The completely new user interface, advanced technologies, and smart features ensure a top-level user experience. Xplore is equipped with a crystal-clear HD display that also suits Polarized lenses, and the sonar supports the latest Mega Side & Down Imaging+ technologies as well as Dual Spectrum CHIRP sonar.

New User Interface and Cross Touch Touchscreen - Xplore offers an intuitive and fast user interface that includes an updated menu structure and a new home menu. The Cross Touch touchscreen allows setting functions directly from the screen with the "Pinch and Zoom" feature as well as pinching, dragging, or swiping. The user comfort is complemented by physical buttons that allow you to control all functions the way you want.

Top-Class Mega Imaging+ and Dual Spectrum CHIRP
Mega Imaging+ Provides accurate side and down sonar views up to 150 meters sideways and 75 meters in depth. With a broader 455 kHz frequency, the range extends to 244 meters sideways and 122 meters in depth.
Dual Spectrum CHIRP Low Q-value ensures incredibly accurate 2D images and excellent target separation, even at high speeds.

AutoChart Live – Create Your Own Maps in Real Time - Create detailed maps of your desired water body in real time. The saved data includes vegetation, bottom hardness, and depth information. The built-in 8-hour memory and support for the AutoChart ZeroLine card offer over 2000 hours of mapping capacity.
Note that the ZeroLine card must be purchased separately

Network Connections and One-Boat Network
NMEA 2000 Connection Connect to other compatible devices, such as autopilots and AIS systems.
One-Boat Network Enables seamless connection between Humminbird and Minn Kota devices, including bow-mounted electric motors and Talon/Raptor shallow-water anchors.

Connect XPLORE to other compatible devices via the NMEA 2000 connection, control and manage devices like Fusion stereos and autopilots directly from the screen. Or why not display AIS data or engine data on the high-resolution bright display.

XPLORE is network-compatible and can easily be connected to another Humminbird device (Apex and Solix G3) to share GPS location, map and sonar data, sensor data, waypoints, and more. In addition to sharing the above data, through the One-Boat Network connection, it is also possible to link various accessories, such as the Humminbird CHIRP radar and Minn Kota bow-mounted electric motors.

The free One-Boat Network mobile app allows you to easily update systems and control Minn Kota Talon / Raptor shallow-water anchors, bow-mounted electric motors, or Cannon Optimum electric downriggers directly from your phone or from the sonar's screen via the One-Boat Network. You can also transfer your planned waypoints from the One-Boat Network app on your phone to the sonar and back.

Navionics Compatibility and Plotter Sync - Compatible with Navionics marine charts. With Plotter Sync, you can easily transfer routes and waypoints between your smartphone and Xplore device with a single click.

Two Card Slots - Two SD card slots offer features like using maps of two different regions, saving screenshots to a separate empty SD card, and using the AutoChart ZeroLine card simultaneously with Navionics charts.

Humminbird Xplore Technical Specifications:

• Display: 9" 1280x720 HD TFT
• GPS: Built-in dual-frequency 10Hz GPS
• Supported Networks: 1x Ethernet 1Gbit, 1x NMEA2000
• Bluetooth and WiFi: Support for software updates, Talon/Raptor connection, and Navionics Plotter Sync
• Memory: Waypoints 10,000, routes 50, tracks 20,000
• Map Options: MicroSD map card:
  Humminbird LakeMaster (optional)
  Navionics+ and Platinum+ (optional)
  Humminbird AutoChart (optional)
  Humminbird AutoChart PRO (optional)
  Humminbird AutoChart Live (standard – about 8 hours internal memory)
  AutoChart ZeroLine card (optional – over 2000 hours of memory)
