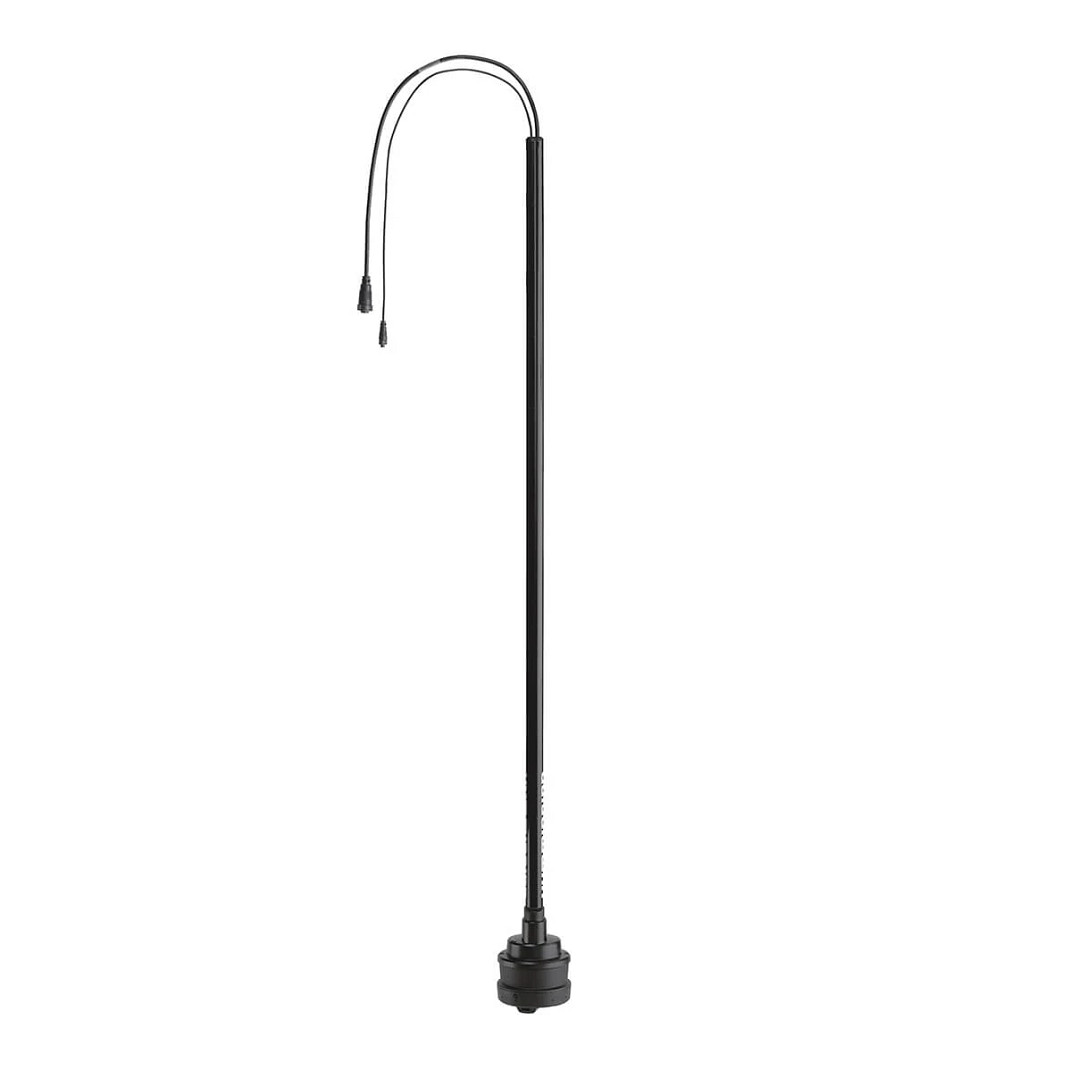

HUMMINBIRD MEGA 360 Transducer

Discover fish and bottom structures with photographic precision! This model does not include brackets or mounts!

Humminbird MEGA 360 Imaging functions as an underwater radar, serving as a transducer for Humminbird devices, providing a stunning photographic-like down imaging view of the underwater world in all directions around the boat. The MEGA 360 Imaging device is circular in shape, with a diameter of up to 38 meters around your boat. The image from Humminbird MEGA 360 Imaging updates on the screen in a similar manner to an above-water radar image.

The transducer is connected to compatible devices via their transducer connectors (HELIX adapter included) and can then be shared on networks with compatible SOLIX, HELIX G2N, G3N, and G4N devices. The transducer provides 360° bottom coverage and a 180° MSI function.

When you connect an external heading sensor (AS GRP HS GPS), waypoints can be displayed directly on the screen to mark points of interest in the area. In cases where an i-Pilot Link motor and its associated heading sensor are connected to the network, this can be used instead of an external GPS sensor.

Through the MEGA 360 Imaging transducer, you also have access to MEGA-level Side Imaging sonar. If you want to simultaneously use Down Imaging and 2D sonar with the same terminal device, you need to use the optional splitter cable (Y-cable 9 M360 2DDI).
