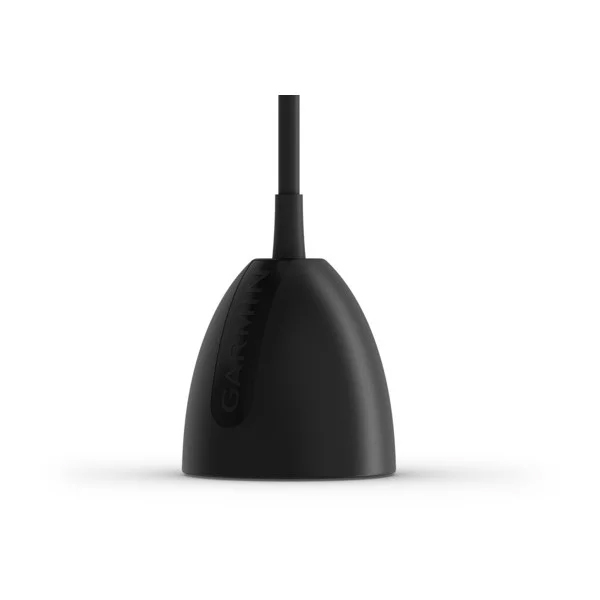

Garmin Ice Fishing Transducer GT10HN-IF

GT10HN-IF ice fishing transducer is perfect for fishermen who want clear definition under the ice with excellent target separation. The narrow, 7-16 degree beam angle provides precise fish and jig detection. The 8-pin transducer features high-narrow CHIRP traditional sonar and has a power rating of 500 W. Its shape and beam widths have been optimized for ice fishing, and it features a silicone-coated cable that remains flexible in harsh winter conditions. Includes a 8-pin to 4-pin transducer adapter cable, foam float and grommet.

GENERAL:
- FREQUENCY CHIRP High Narrow (130-300 kHz)
- POWER 500 W
- BEAMWIDTH 16°-7°
- MAXIMUM DEPTH 800 ft. freshwater
- DEPTH/SPEED/ TEMPERATURE Depth
- NUMBER OF PINS 8
- CABLE LENGTH 8 ft.
- SUPPORTED DEADRISE/TRANSOM ANGLES N/A

IN THE BOX:
- GT10HN-IF transducer
- Float
- Documentation
