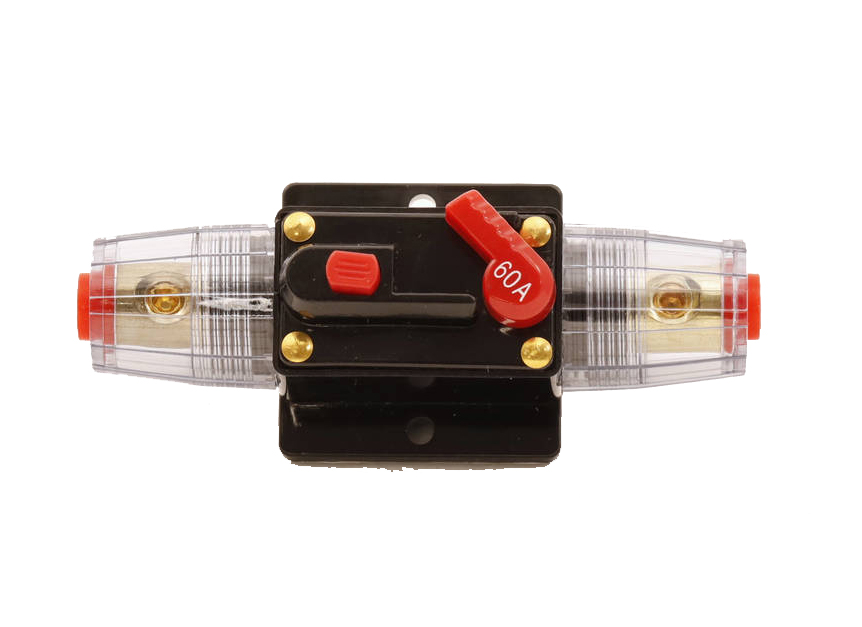

Automatic fuse - Suitable for connecting all bow motors as well as lithium and AGM batteries. With the automatic fuse, you protect your bow motor and can easily cut off the power between the bow machine and the battery by pressing a button. If the fuse trips, you don't need to change anything, just press the fuse trigger back in.
30A automatic fuse is intended, for example, to protect electric downriggers between the battery and the downrigger. The 30A automatic fuse is also used on both sides of the Victron Orion 12V-24V 15A intermediate charger between the battery and the intermediate charger to protect the intermediate charger.
60A automatic fuse is intended, for example, between the bow machine and the bow machine battery to protect the bow machine's motherboard. The 60A automatic fuse is also used on both sides of the Victron Orion 12V-12V 18A/30A intermediate charger between the battery and the intermediate charger to protect the intermediate charger.
The fuse is splash-proof and withstands boat use, but protect the fuse from direct water.
- Fuse type: Automatic
- Fuse type: Automatic fuse
- Rated current: 30A or 60A
- Color: Black
- Power supply voltage: 12 - 48V DC
- Size: 4.2x10x4.2mm
- Weight 91g
- Fuse features: Time delay fuse
- Suitable for a maximum of: 16mm2 cable
