Blue Sea Heavy Duty Series Battery Switches

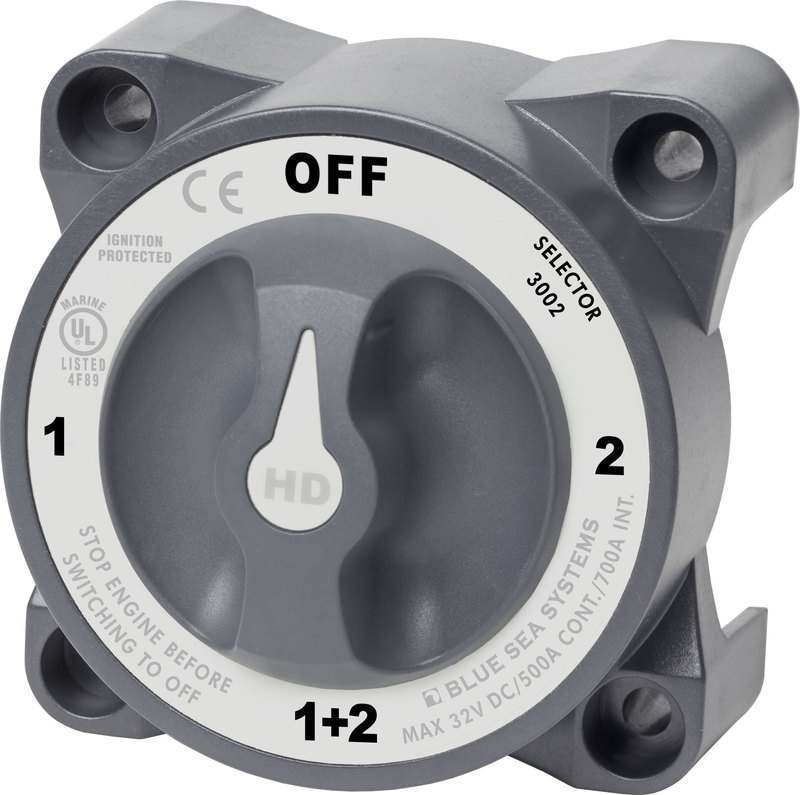

Blue Sea Heavy Duty Series Battery Switches  - HD-Series Heavy Duty Selector Battery Switch. Switches isolated battery banks to all loads or combines battery banks to all loads

Blue Sea Heavy Duty Series Battery Switches Main Features:

• Switch Type: Selector 4 Position
• Color: Grey
• Switch Positions: 4
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Maximum Voltage: 32V
• Terminal Stud Torque: 220 in-lb (24.86 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 sec: 1600A
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Quantity to Meet Ratings: Two Cables / Terminal
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw
• Stud Material: Tinned Copper
• Terminal Stud Size: 1/2" (M12)
• Weight: 1.25lb (0.57 kg)
• IP66

  ABYC E-11, CE, Ignition Protected, ISO 8846 Marine, SAE J1171 Marine, UL 1107, UL 1500
