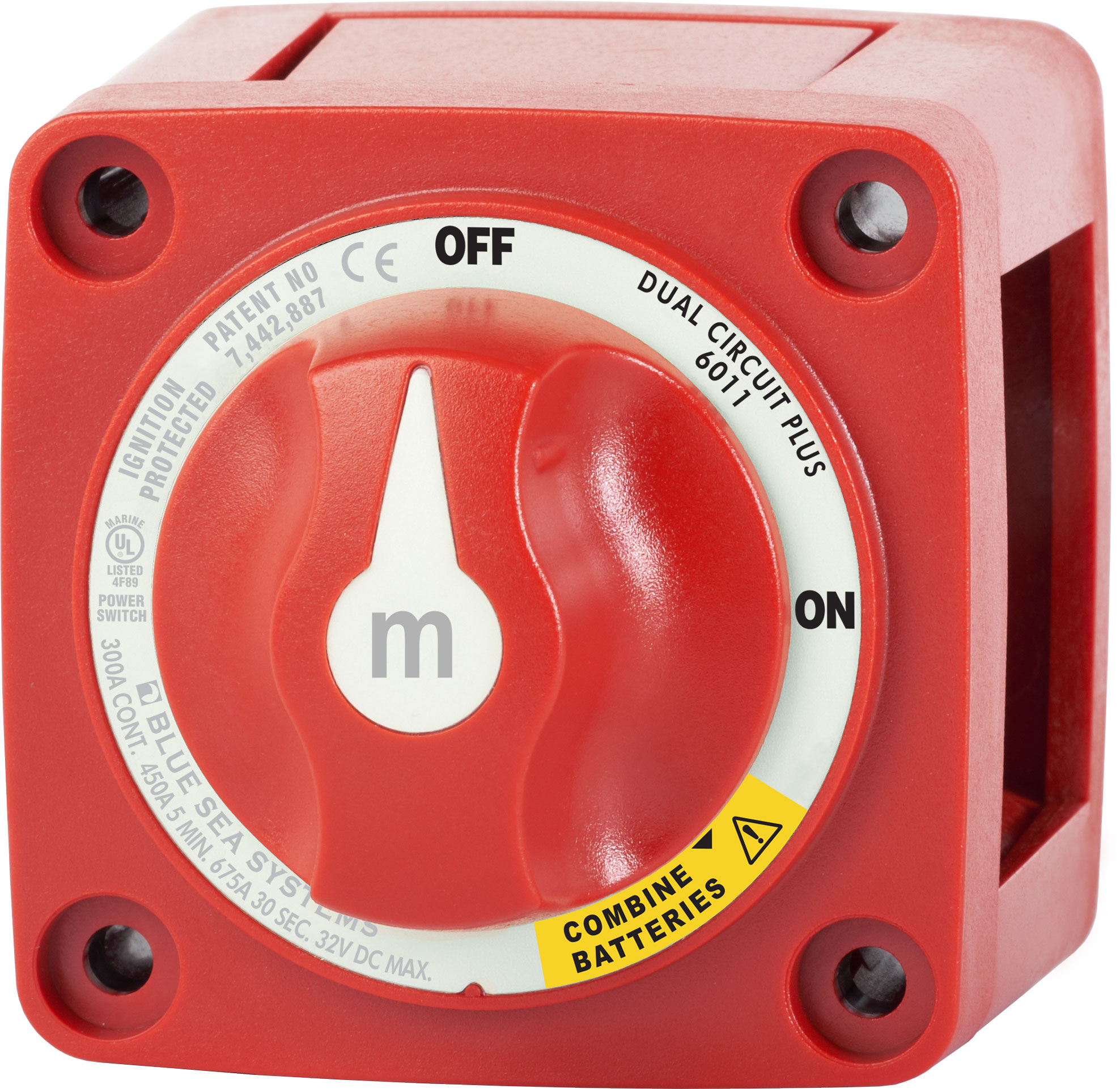

Blue Sea Battery Switches 300A Dual Circuit Plus

Blue Sea Battery Switches 300A Dual Circuit Plus - Simultaneously switches two isolated battery banks or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption

Blue Sea Battery Switches 300A Dual Circuit Plus Main Features:

• Switch Type: Dual Circuit Plus
• Color: Red
• Switch Positions: 3
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Maximum Voltage: 32V
• Stud Size: 3/8"
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 450A (5 min)
• Cranking Rating 30 sec: 675A per circuit
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept #10 Screw
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.80lb (0.36 kg)
• IP66

  CE, Ignition Protected, ISO8846 Marine, SAE J1171 Marine, UL 1107, UL 1500
