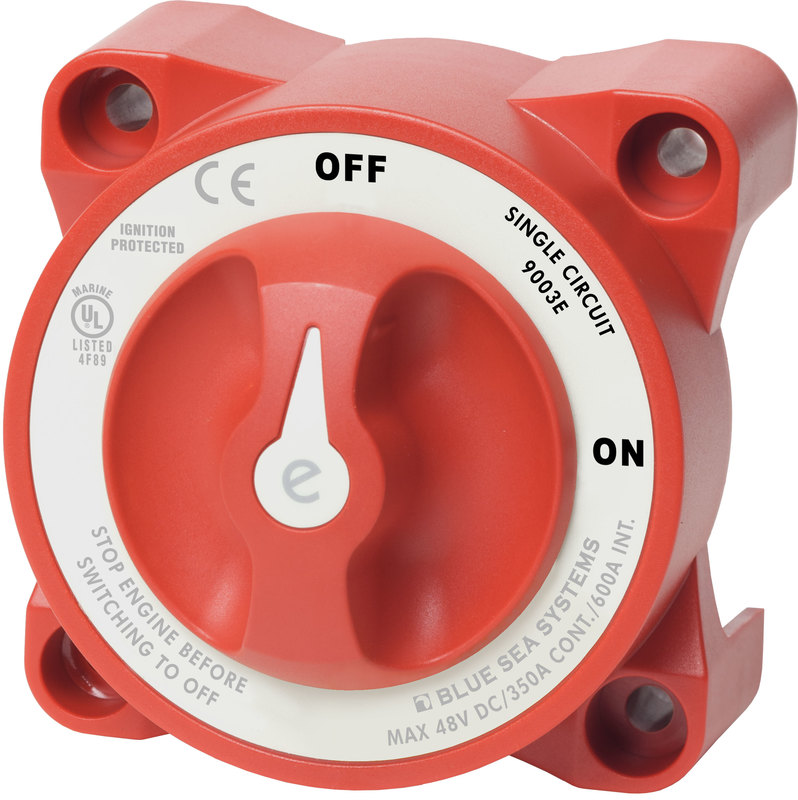

Blue Sea Battery Mounth Switches 350A

Blue Sea Battery Mounth Switches 350A - Switches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Blue Sea Battery Mounth Switches 350A Main Features:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48V
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 min)
• Cranking Rating 30 sec: 1200A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw
• Stud Material: Tinned Copper
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.30lb (0.59 kg)
• IP66

  ABYC E-11, CE, Ignition Protected, ISO 8846 Marine, SAE J1171 Marine, UL 1107, UL 1500
