Aurinkopaneelin lataussäädin

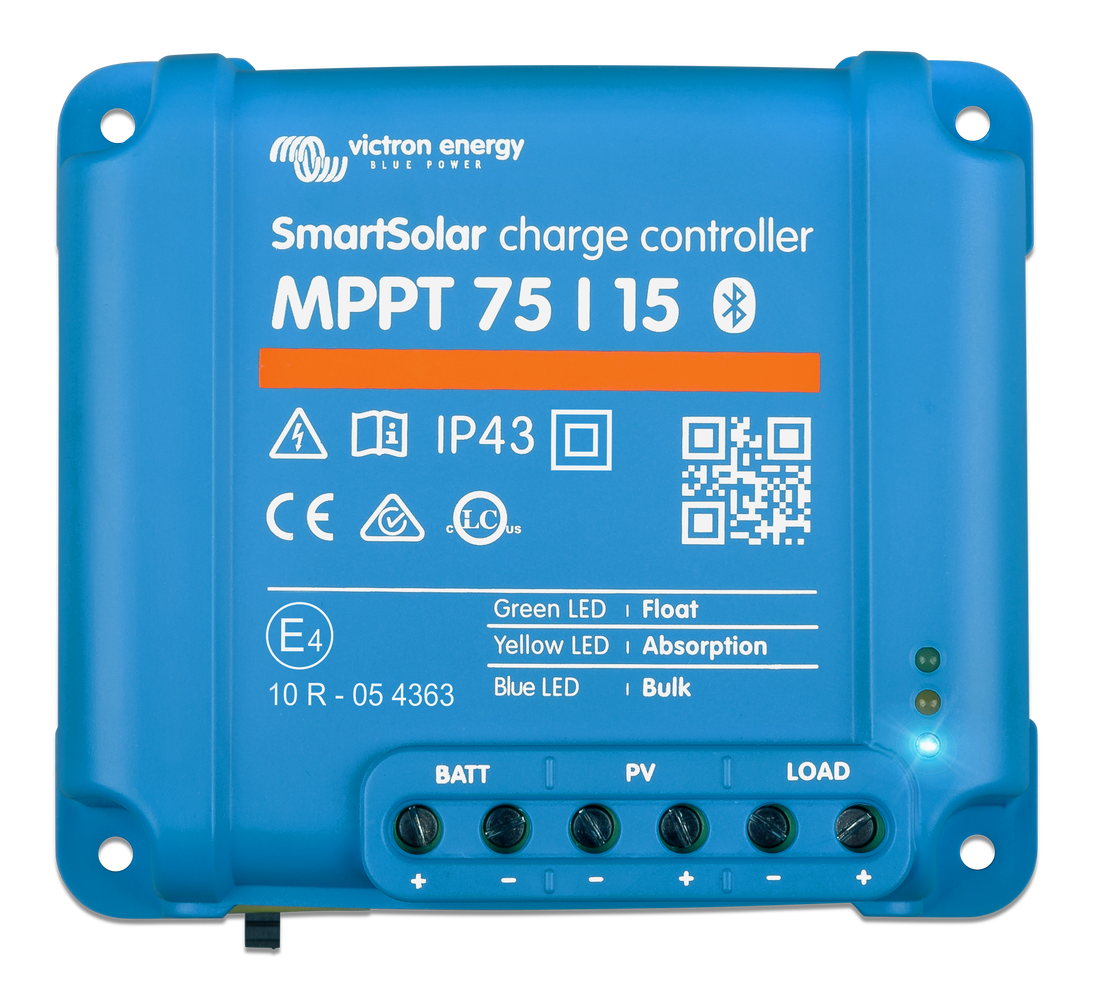

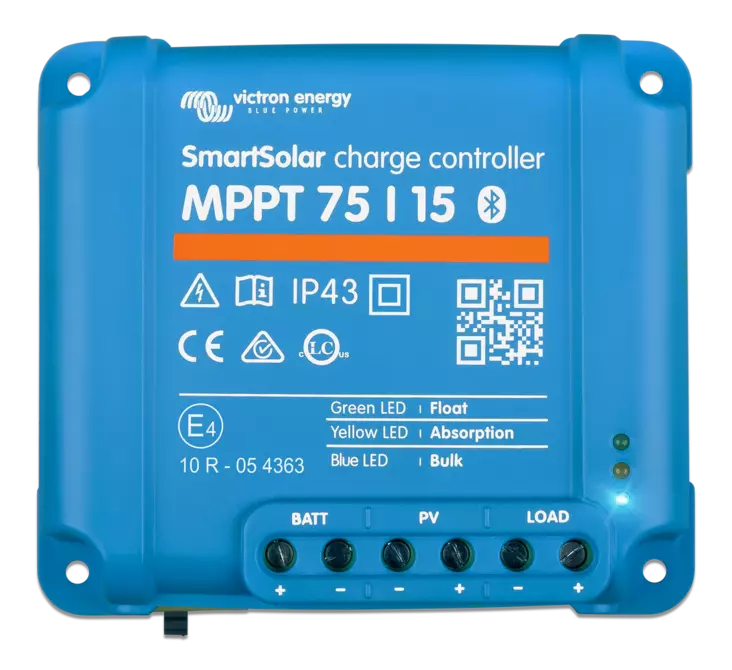

Victron SmartSolar MPPT 75/15 - A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking: By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control: Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect.

Victron SmartSolar MPPT 75/15 Main Features:

• Battery voltage (auto select): 12/24V
• Rated charge current: 15A
• Nominal PV power, 12V 1a,b): 220W
• Nominal PV power, 24V 1a,b): 440W
• Max. PV short circuit current: 15A
• Automatic load disconnect: Yes
• Max. PV open circuit voltage: 75V
• Peak efficiency: 98%
• Self-consumption – load on: 12V: 19 mA 24V: 16 mA
• Self-consumption – load off: 12V: 10 mA 24V: 8 mA
• Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
• Charge voltage 'float': 13,8V / 27,6V (adjustable)
• Max. continuous load current: 15A
• Low voltage load disconnect: 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect: 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection: Output short circuit / Over temperature
• Operating temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing
• Data communication port: VE.Direct
• Power terminals: 6 mm2 / AWG10
• Protection category: IP43 (electronic components), IP22 (connection area)
• Dimensions (h x w x d): 100 x 113 x 40 mm
