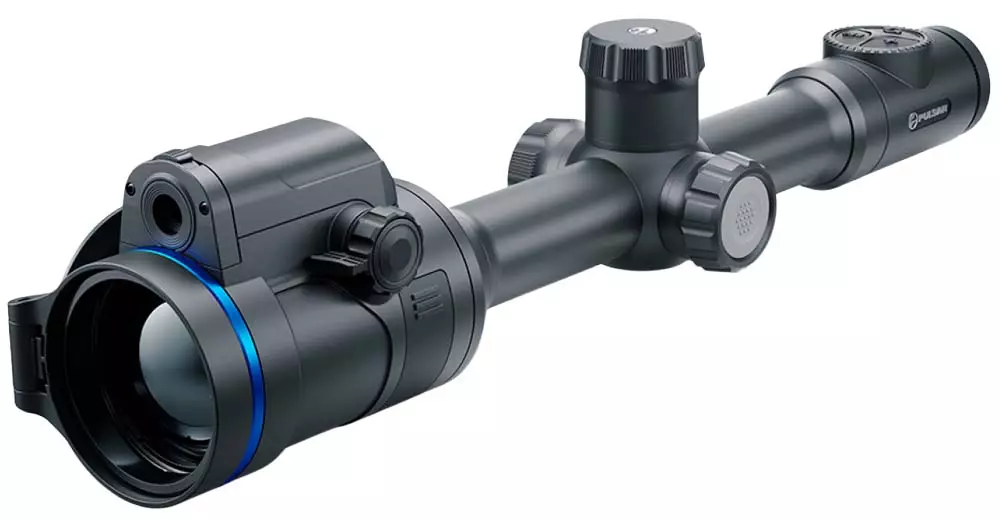

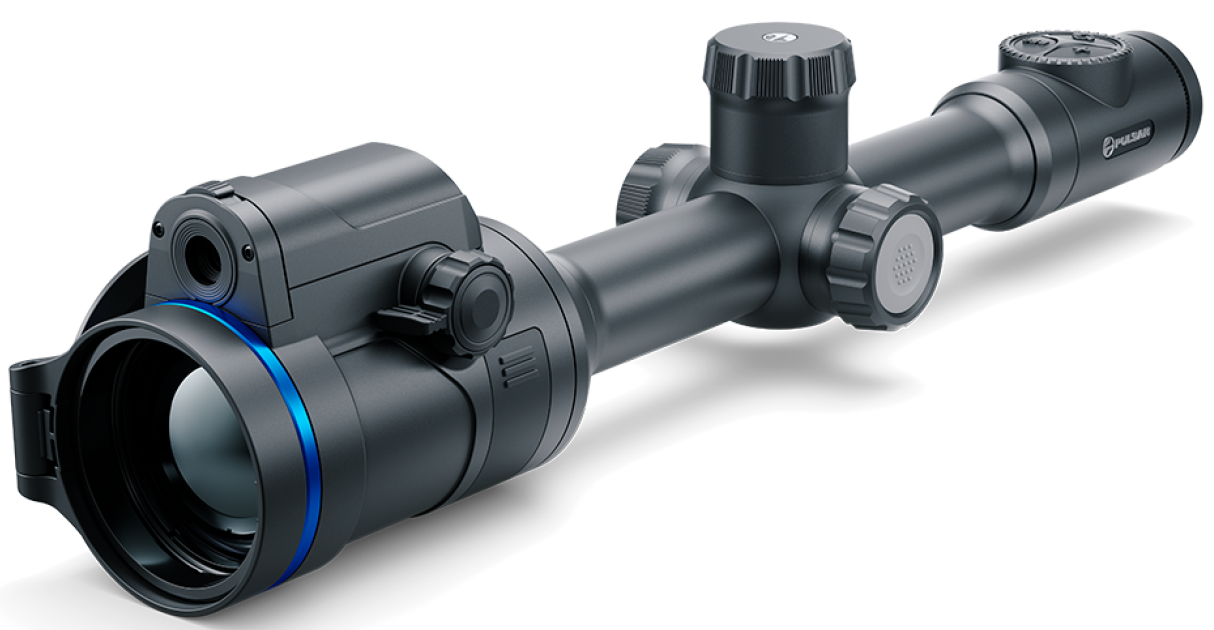

Pulsar Thermion DUO DXP50

Thermion Duo DXP50 Thermal Riflescope is The world’s first multispectral hunting riflescope, the Thermion Duo combines the high-tech thermal imaging Pulsar is known for with the clarity and vividness of a full-color daytime optic.

Designed primarily for hunting, the Thermion Duo DXP50 has a detection range of 1800 yards. This highly versatile multispectral optic can defeat animal camouflage and fog on thermal mode and judge a prey’s trophy qualities in daylight with its full color mode. With its picture-in-picture feature, a hunter can simultaneously find an animal through dense fog or foliage with its 640x480 high-sensitivity thermal sensor while observing the area around it in full color 4k HD.

The Thermion Duo DXP50 boasts the wide range of practical features Pulsar products are known for, including one-shot freeze zeroing, 1024x768 photo and video recording with audio, Wi-Fi integration with the Stream Vision 2 app, and advanced image processing.

With six hours of battery life and compatibility with USB C chargers, the Thermion Duo DXP50 is both powerful and long-lasting. With its solid aluminum alloy construction, the Thermion Duo DXP50 is both shockproof and waterproof, with an IPX7 rating, capable of withstanding the most rigorous wilderness conditions. With its range of features and capabilities, the Thermion Duo DXP50 represents the future of hunting and digital optics.

Specs:

Microbolometer

• Type: uncooled
• Resolution, pixels: 640x480
• Pixel Pitch, µm: 17
• NETD, mK: < 25
• Frame refresh rate, Hz: 50

Digital Sensor

• Type: CMOS
• Resolution, pixels: 3840x2160

Optical Specifications

• Lens, mm:
• Thermal imaging channel: F50 F/1.0
• Digital channel: F17 F/4.34 (non-focusing lens)
• Magnification, x: 2-16
• Eye relief, mm/inch: 50/1.96
• Field of view (H), °/m@100: 12.4/21.8
• Diopter adjustment, D: -3/+5
• Detection distance (Thermal imaging channel, object of "deer" type), m/y: 1800/1968.5

Aiming Reticle

• Click value (H/V), mm@100 m – when magnifying, x:
• 21.3 – 2
• 10.7 – 4
• 5.3 – 8
• 2.7 – 16
• Click range, mm@100 m (H/V): 4250/4250

Display

• Type: AMOLED
• Resolution, pixels: 1024x768

Operating Features

• Tube Diameter, mm: 30
• Power Supply, V: 3–4.2
• Battery type / Capacity / Rated Output Voltage:
• Li-Ion Battery Pack ?PS2 / 2000 mAh / DC 3.7 V (removable)
• or
• Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)*
• Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in)
• External Power Supply: 5 V, 9 V (USB Type-C Power Delivery)
• Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs**: 6
• Max. recoil power on rifled weapon, Joules: 6000
• Max. recoil power on smoothbore weapon, caliber: 12
• Degree of protection IP code (IEC60529): IPX7
• Operating temperature, °? / °F: -25 – +50 / -13 – +122
• Dimensions with an eyecup, mm/inch: 420x78x83.5 / 16.54x3.07x3.29
• Weight (with APS2 battery), kg/oz: 0.96 / 33.86

Video Recorder

• Photo / video resolution, pixels: 1024x768
• Video / photo format: .mp4 / .jpg
• Built-in memory: eMMC 16 GB

Wi-Fi Channel***

• Frequency: 2.4/5 GHz
• Standard: IEEE 802.11 b/g/n/ac
