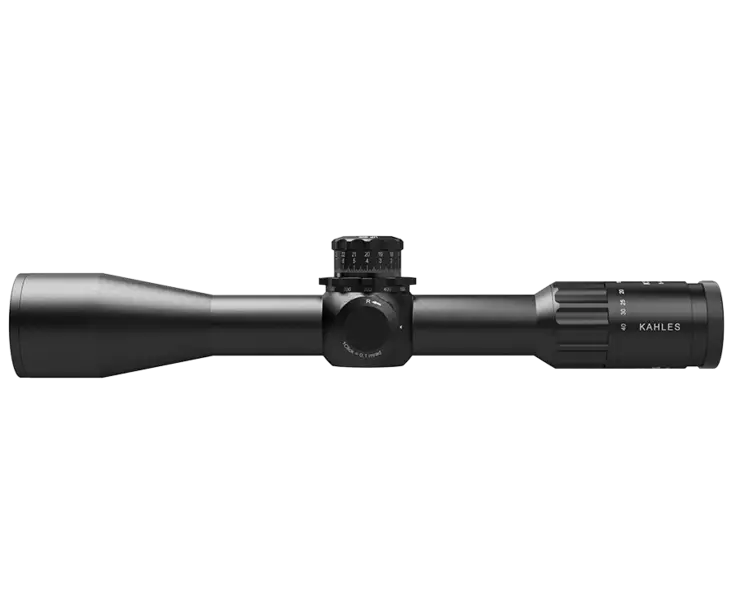

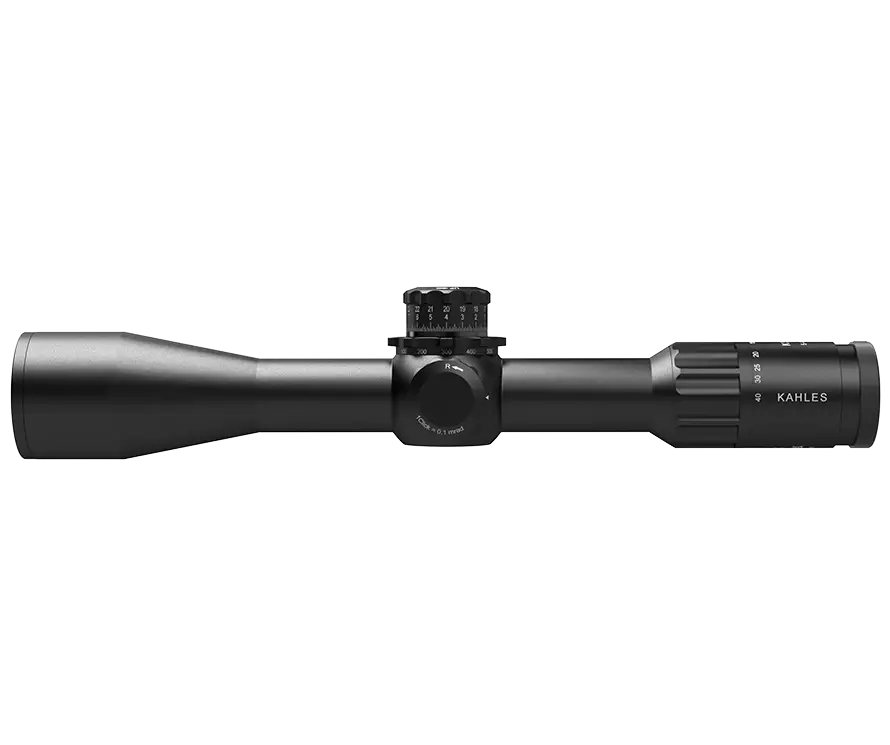

Kahles K540i 5-40x56 CCW SKMR4+ Right is an advanced riflescope that sets new performance standards. This riflescope features a next-generation optical design that offers a 40% wider field of view. It includes a comfortable eye box and an 8x zoom that maintains perfect optical performance throughout the adjustment range.
The windage adjustment of the riflescope is adjustable to the left or right with the TWIST GUARD rotation protection, enhancing usability and accuracy. The patented parallax adjustment is integrated into the elevation turret and covers distances from 20 meters to infinity.
160 clicks per rotation ensure reliable repeat accuracy and clearly defined clicks. The illuminated reticle is located in the first focal plane, improving visibility and accuracy in all lighting conditions.
Technical specifications:- Magnification: 5-40x56i- Objective lens diameter: 56 mm- Exit pupil diameter: 1.4 - 7.7 mm- Eye relief: 92 mm- Field of view: 10.2 - 1.3 m/100 m- Diopter adjustment: +2 / -3 dpt- Twilight factor: 13.9-47.3- Impact correction per click: 0.1 MRAD- Adjustment range (E/W): 2.9 / 1.2 m/100m- Parallax adjustment: 20 m - ?- Tube diameter: 36 mm- Length: 408 mm- Weight: 1110 g- Focal plane: 1.- Illuminated: Yes- Warranty: 10 years (2 years for electronics)
Product text updated 29.3.2025.
