- Product Code: 05-404B

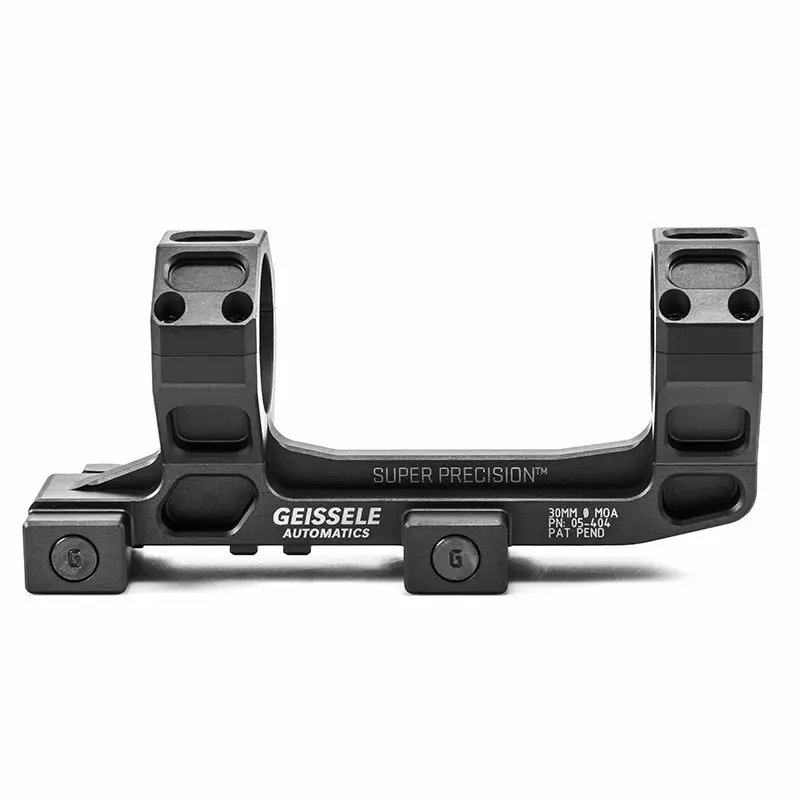

Geissele Super Precision 30mm Std BLK – is an AR-15/M4 platform optimized AR scope mount for 30 mm tube riflescopes with standard length and black Type III hard anodized finish. The mounting surface spans 7 Picatinny slots and uses 4 shear lugs for rigid and repeatable positioning. Geissele's updated bolt-nut clamping system secures the mount to the rail reliably and provides approximately 6,230 N (1,400 lb) of clamping force per bolt-nut combination, ensuring a secure hold without lever-based solutions.
The mount is made from 7075-T6 high-strength aluminum, and the base is machined from a single billet material. The one-piece design allows for the addition of lightening pockets and reinforcement ribs in critical areas, enhancing rigidity and repeatability. The base, machined from a single piece, also provides the freedom to position the cap upper parts in a way that the mount is compatible with a wide range of riflescopes and supports stable return-to-zero performance.
The individual markings on the cap upper parts have been omitted based on testing, and they are interchangeable without compromising accuracy or return-to-zero capability. This facilitates maintenance and spare part availability, as a broken or lost cap can be replaced without serial number dependency. Length options include Standard, Extended, and Hyper Extended versions, and finish options include black Type III hard coat anodizing and DDC (Desert Dirt Color) Type III hard coat anodizing.
Geissele Super Precision 30mm Std BLK – Features:
- Platform: AR-15/M4 upper rail, Picatinny standard compliant
- Ring size: 30 mm (for tube)
- Length version: Standard (also available in Extended and Hyper Extended)
- Mounting surface: spans 7 Picatinny slots
- Positioning lugs: 4 shear lugs
- Clamping method: Geissele's updated bolt-nut clamping to the rail
- Clamping force: approximately 6,230 N per bolt-nut combination (1,400 lb)
- Material: 7075-T6 high-strength aluminum
- Construction: one-piece, base machined from a single billet material
- Rigidity: reinforcement ribs and lightening pockets increase strength and reduce flex
- Accuracy: optimized return-to-zero repeatability
- Cap upper parts: interchangeable, not serialized
- Finish: black Type III hard coat anodizing; alternative DDC (Desert Dirt Color) Type III
- Compatibility: cap positioning suitable for various riflescopes
- Manufacturer: Geissele
Summary: This mount designed for the AR-15/M4 platform combines a rigid, one-piece 7075-T6 construction and strong bolt-nut clamping directly to the Picatinny upper rail. The mounting surface spanning 7 slots, 4 shear lugs, and interchangeable caps support stable installation, repeatable alignment, and smooth maintenance. It is a reliable choice for users seeking secure hold and broad compatibility for 30 mm tube optics.
Recommended use: For AR-15/M4 platforms, when the goal is a stable, repeatable, and bolt-clamped mounting for a 30 mm tube riflescope.
Product text updated on 9.3.2026.
