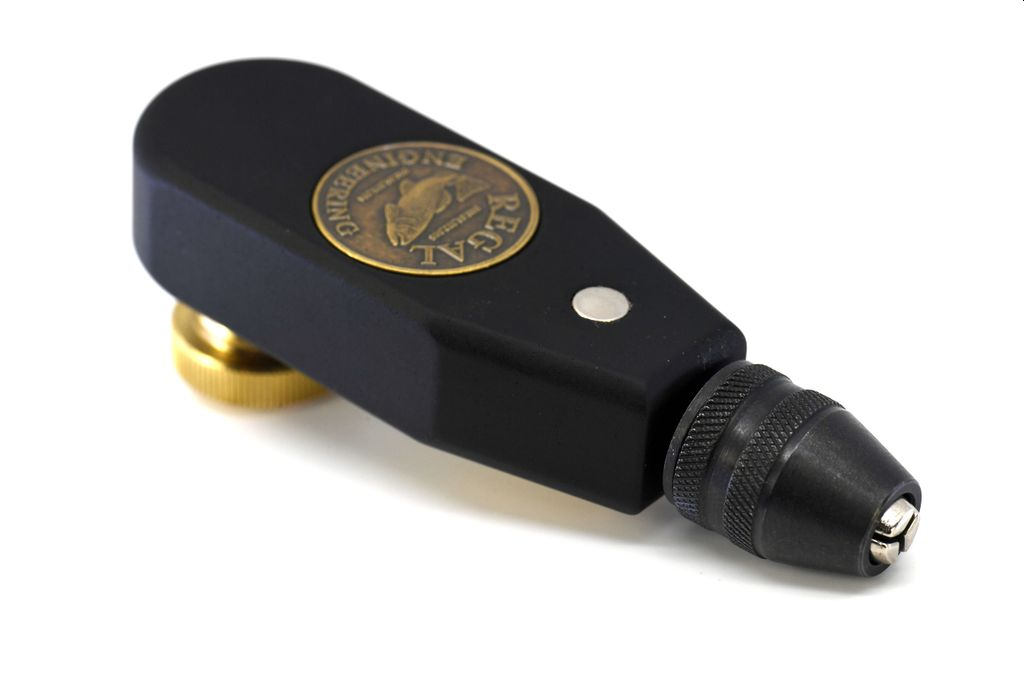

Regal Tube Fly Head

Regal Tube Fly Head info

• Chuck style tube vise with 3 pins
• Utilizes head similar to all Regal heads for comfortable hand placement and easy tying
• Head fits both Revolution and Medallion series vises
• Chuck can directly hold pins and hard tubes
• Chuck opens to hold up to 5/32 inch diameter (4mm diameter)
• Vise / Head come with 3 pins
  • Small 1/32 inch diameter straight taped to 1/16 inch (.8 to 1.6mm)
  • Medium – 1/16 inch diameter straight taped to 3/32 inch (1.6 to 2.4mm)
  • Large – 3/32 inch diameter straight tapered to 1/8 inch (2.4 to 3.2mm)
• Pins have a 2 ¾ inch section of uniform diameter that tapers to a larger end with flat sides to securely hold tubes
• Pins can be cut to shorter lengths
• Pins can be used in either direction
• Slide tube onto pin then insert small end of pin into chuck and tighten thus pinching the tube between taper/flat end of the pin and chuck face
• Grip flat large end in chuck and then slide tubes onto pin
  • Insert large end of pin into into head and tighten chuck on pin leaving a short section of pin exposed
• Head is bored to allow more than 2 inches of the either end of pin to be inside the chuck and head
